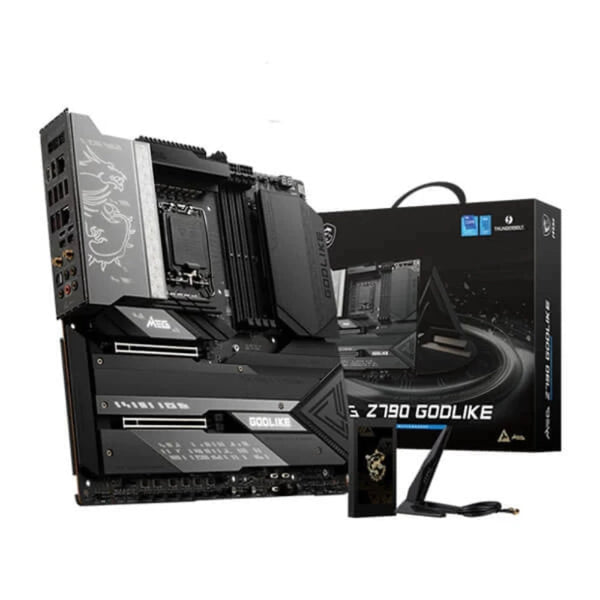

MSI MEG Z790 Godlike DDR4 Intel Motherboard

Product Description

Features of MSI MEG Z790 Godlike DDR5 Intel Motherboard

MSI MEG Z790 Godlike DDR5 is developed to unleash the extreme gaming potential of the latest 13th Gen Intel Core processor and is ready to rule the tournament once again. Featuring the latest technology, high-speed transmission, ultra-performance
Supports 12th/ 13th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1700 socket
Supports DDR5 Memory, Dual Channel DDR5 7800+MHz (OC)
M-Vision Dashboard:
The touchable 4.5-inch full-color IPS LCD not only indicates the status of your gaming rig which combines hardware monitor and debug function, but also allows system operation and customization with touch control.
Dual Thunderbolt 4 ports:
Thunderbolt USB-C at true 40 Gb/s speeds, 8K display support, Daisy-Chaining and Multi-Port Accessory Architecture provide reliable connectivity and better user experience.
Extreme Power Design:
26+2 phases power design with 105A Smart Power Stage and dual CPU power connectors are ready to unleash the maximum performance.
Premium Thermal Module:
Wavy fin design, Direct Touch Cross Heat-pipe, Aluminum Cover, 7W/mK thermal pads, Double-Sided M.2 Shield Frozr and Frozr AI software ensure the utmost performance with low temperature.
Maximum 7 x M.2 Connectors:
Onboard septuple M.2 connectors including one PCIe 5.0 solution for the maximum storage performance. The double-sided Shield Frozr design keeps M.2 SSDs safe while preventing throttling, making them run faster.
Latest Network Solution:
Onboard 10G Super LAN, Intel 2.5G LAN and the latest Wi-Fi 6E solution deliver the best online experience without lag.
Lightning Fast Game experience:
PCIe 5.0 slots, Lightning Gen 5 x4 M.2, Dual Front USB 3.2 Gen 2×2 20G with one 60W USB Power Delivery.
DIY Friendly Design:
Patented Magnetic & Screwless M.2 Shield Frozr, EZ M.2 Clips, Smart Button, Pre-installed I/O Shield, Steel Armor, Metal Backplate
8 Layer PCB with 2oz Thickened Copper:
Provides higher performance and long-lasting system stability without any compromise.
Audio Boost 5 HD:
Ultimate audio solution with the latest premium ALC4082 audio processor combining ESS audio DAC and amplifier deliver the breathtaking experience.
Specifications of MSI MEG Z790 Godlike DDR4 Intel Motherboard


Model
MEG Z790 GODLIKE
Chipset
INTEL Z790
CPU Support
Supports 12th/13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® ProcessorsLGA 1700
Memory
4x DDR5 UDIMM, Maximum Memory Capacity 128GBMemory Support 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHzMax. overclocking frequency:• 1DPC 1R Max speed up to 7800+ MHz• 1DPC 2R Max speed up to 6600+ MHz• 2DPC 1R Max speed up to 6400+ MHz• 2DPC 2R Max speed up to 5600+ MHzSupports Intel® XMP3.0 OCSupports Dual-Controller Dual-Channel modeSupports non-ECC, un-buffered memory
Onboard Thunderbolt
Thunderbolt chip JHL85402x Thunderbolt4 (USB-C) portsSupports up to 40Gbps transfer rate with Thunderbolt devicesSupports up to 20Gbps transfer rate with USB4 devicesSupports up to 10Gbps transfer rate with USB 3.2 devicesSupports up to 5V/3A,15W power chargingEach port can daisy-chain up to three Thunderbolt 4 devices or five Thunderbolt 3 devicesSupports up to 8K display (need to connect the DisplayPort of the discrete graphics card to the Mini DisplayPort Input port on the back panel)
Expansion Slot
2x PCI-E x16 slotPCI_E1 PCIe 5.0 supports up to x16 (From CPU)PCI_E2 PCIe 5.0 supports up to x8 (From CPU)
Multi-GPU
Supports AMD MULTI-GPU
Storage
7x M.2 slotM.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devicesM.2_2 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devicesM.2_3 (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260 devicesM.2_4 (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280 devicesM.2_5 (From Chipset) supports up to PCIe 3.0 x4 / SATA mode, supports 2280/2260 devicesM.2_6 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devicesM.2_7 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices6x SATA 6G port
RAID
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devicesSupports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage device
USB
4x USB 2.0 (Front)4x USB 3.2 Gen1 Type A (Front)7x USB 3.2 Gen2 Type A (Rear)1x USB 3.2 Gen2 Type C (Rear)2x USB 3.2 Gen2x2 Type C (Front)
LAN
Marvell® AQC113CS-B1-C 10Gbps LANIntel® 2.5Gbps LAN
Wireless / Bluetooth
Intel® Wi-Fi 6EThe Wireless module is pre-installed in the M.2 (Key-E) slotSupports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4GbpsSupports 802.11 a/ b/ g/ n/ ac/ axSupports Bluetooth® 5.3, FIPS, FISMA
Audio
Realtek® ALC4082 Codec + ESS ES9280AQ Combo DAC/HPA7.1-Channel USB High Performance AudioSupports S/PDIF outputSupports up to 32-Bit/384 kHz playback on front panel
Internal I/O
1x Power Connector(ATX_PWR)2x Power Connector(CPU_PWR)1x Front Type-C Quick Charge Connector(PD_PWR1)1x CPU Fan2x Pump Fan7x System Fan2x Front Panel (JFP)1x Chassis Intrusion (JCI)1x Water Flow connector1x Slow Mode Booting Jumper(JSLOW)1x Front Audio (JAUD)2x Thermal Sensor connectors(T_SEN)1x Tuning Controller connector(JDASH)3x Addressable V2 RGB LED connector (JARGB_V2)1x RGB LED connector(JRGB)1x TPM pin header(Support TPM 2.0)4x USB 2.04x USB 3.2 Gen1 Type A2x USB 3.2 Gen 2×2 Type CV-check point
LED Feature
1x EZ LED Control switch4x EZ Debug LED1x 2-Digit Debug Code LED
Back Panel Ports
Clear CMOS ButtonFlash BIOS Button2.5G LAN10G Super LANThunderbolt 4 40Gbps (Type-C)Wi-Fi / BluetoothAudio ConnectorsSmart ButtonUSB 3.2 Gen 2 10Gbps (Type-C)USB 3.2 Gen 2 10Gbps (Type-A)Mini DisplayPort Input (for Thunderbolt passthrough)Optical S/PDIF-Out
Operating System
Support for Windows® 11 64-bit, Windows® 10 64-bit
PCB Dimension
E-ATX304.8mmx310mm
Warranty
3 Years
Note
*** Features, Price, Specifications are subject to change without notice.
