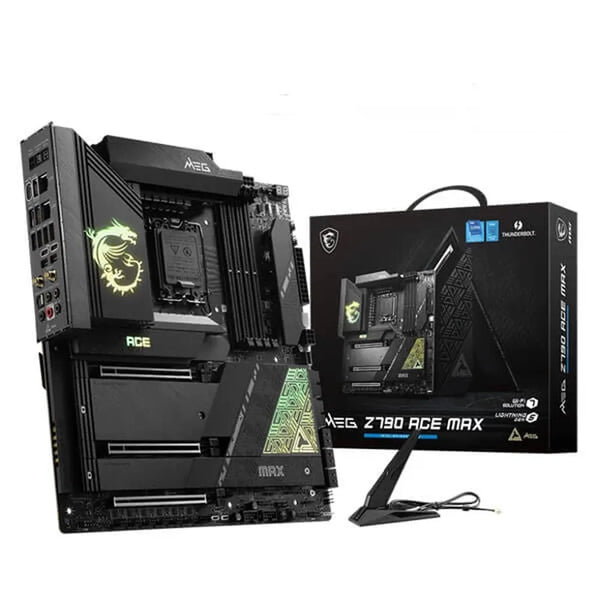

MSI MEG Z790 Ace Max Wifi DDR5 Intel Motherboard

Product Description

Features Of MSI MEG Z790 Ace Max Wifi
Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors for LGA 1700 socket
Supports DDR5 Memory, Dual Channel DDR5 7800+MHz (OC)
Dual Thunderbolt 4 ports: Thunderbolt USB-C at true 40 Gb/s speeds, 8K display support, Daisy-Chaining and Multi-Port Accessory Architecture provide reliable connectivity and better user experience.
Extreme Power Design: 24+1+2 phases power design with 105A Smart Power Stage and dual CPU power connectors are ready to unleash the maximum performance.
Outstanding Cooling Solution: Stacked Fin Array, Direct Touch Cross Heat-pipe, Aluminum Backplate, 7W/mK thermal pads, Double-sided M.2 Shield Frozr and Frozr AI software ensure the extreme performance with low temperature.
Latest Wi-Fi 7 solution: The latest wireless solution with a new 320MHz channel, achieving a maximum transmission speed of 5.8Gbps, which is 2.4 times faster than Wi-Fi 6/6E.
Dual 2.5G LAN: Onboard dual 2.5Gbps LAN provides incredible data transfer speed faster than general Gigabit LAN, delivering the best online gaming experience.
Maximum 5 x M.2 Connectors: Onboard quintuple M.2 connectors including one PCIe 5.0 solution for the maximum storage performance. The double-sided Shield Frozr design keeps M.2 SSDs safe while preventing throttling, making them run faster.
Lightning Fast Game experience: PCIe 5.0 slots, Lightning Gen 5 x4 M.2, Dual Front USB 3.2 Gen 2×2 20G with one 60W USB Power Delivery.
DIY Friendly Design: Patented Magnetic & Screwless M.2 Shield Frozr, EZ M.2 Clips, EZ Antenna, Smart Button, Pre-installed I/O Shield, Steel Armor
Audio Boost 5 HD: Ultimate audio solution with latest premium ALC4082 audio processor combining ESS audio DAC and amplifier deliver the breathtaking experience
TOOL-FREE M.2 INSTALLATION
Industrial first Magnetic with patented Screwless M.2 Shield Frozr & EZ M.2 Clip provide the easiest way for M.2 Installation.
SMT PCIE 5.0 SLOT
The advanced SMT(Surface Mount Technology) PCIE slot diminish interference and electrical noise, fully support the PCI-E 5.0 signal.
Specifications Of MSI MEG Z790 Ace Max Wifi


Model Name
MEG Z790 ACE MAX
Chipset
INTEL Z790
CPU
Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® ProcessorsLGA 1700
Memory
4x DDR5 UDIMM, Maximum Memory Capacity 192GBMemory Support 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHzMax. overclocking frequency:• 1DPC 1R Max speed up to 7800+ MHz• 1DPC 2R Max speed up to 6800+ MHz• 2DPC 1R Max speed up to 6400+ MHz• 2DPC 2R Max speed up to 6000+ MHzSupports Intel® XMP3.0 OCSupports Dual-Controller Dual-Channel modeSupports non-ECC, un-buffered memory
Onboard Graphics
1x Type-C DisplayPortSupports a maximum resolution of 4K 60Hz
Onboard Thunderbolt
Thunderbolt chip JHL85402x Thunderbolt4 (USB-C) ports Q’tySupports up to 40Gbps transfer rate with Thunderbolt devicesSupports up to 20Gbps transfer rate with USB4 devicesSupports up to 10Gbps transfer rate with USB 3.2 devicesSupports up to 5V/3A,15W power chargingEach port can daisy-chain up to three Thunderbolt 4 devices or five Thunderbolt 3 devicesSupports up to 8K display (need to connect the DisplayPort of the discrete graphics card to the Mini DisplayPort Input port on the back panel)
Slot
3x PCI-E x16 slotPCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)PCI_E2 Gen PCIe 5.0 supports up to x8 (From CPU)PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
Multi-GPU
AMD MULTI-GPU Support
Storage
5x M.2M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devicesM.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devicesM.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260 devicesM.2_4 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280 devicesM.2_5 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 22110/2280/2260 devices6x SATA 6G
RAID
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devicesSupports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices
USB
4x USB 2.0 (Front)4x USB 3.2 Gen1 Type A (Front)7x USB 3.2 Gen2 Type A (Rear)1x USB 3.2 Gen2 Type C (Rear)2x USB 3.2 Gen2x2 Type C (Front)
LAN
2x Intel® 2.5Gbps LAN
WIRELESS LAN & BLUETOOTH
Wi-Fi 7The Wireless module is pre-installed in the M.2 (Key-E) slotSupports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz (320MHz) up to 5.8GbpsSupports 802.11 a/ b/ g/ n/ ac/ ax/ beSupports Bluetooth® 5.4, MLO, 4KQAM
Audio
Realtek® ALC4082 Codec + ESS ES9280AQ Combo DAC/HPA7.1-Channel USB High Performance AudioSupports S/PDIF outputSupports up to 32-Bit/384 kHz playback on front panel
Internal IO
1x Power Connector(ATX_PWR)2x Power Connector(CPU_PWR)1x Front Type-C Quick Charge Connector(PD_PWR1)1x CPU Fan2x Pump Fan5x System Fan2x Front Panel (JFP)1x Chassis Intrusion (JCI)1x Water Flow connector1x Slow Mode Booting Jumper(JSLOW)1x Front Audio (JAUD)2x Thermal Sensor connectors(T_SEN)1x Tuning Controller connector(JDASH)3x Addressable V2 RGB LED connector (JARGB_V2)1x RGB LED connector(JRGB)1x TPM pin header(Support TPM 2.0)4x USB 2.0 ports2x USB 3.2 Gen1 Type A ports2x USB 3.2 Gen 2×2 Type C portsV-check point1x ARGB+FAN Header (JAF_1)
LED FEATURE
1x EZ LED Control switch4x EZ Debug LED1x 2-Digit Debug Code LED
BACK PANEL PORTS
Clear CMOS ButtonFlash BIOS Button2.5G LAN2.5G LANThunderbolt 4 40Gbps (Type-C)Wi-Fi / BluetoothAudio ConnectorsSmart ButtonUSB 3.2 Gen 2 10Gbps (Type-C Display port)USB 3.2 Gen 2 10Gbps (Type-A)Mini DisplayPort Input (for Thunderbolt passthrough)Optical S/PDIF-Out
OPERATING SYSTEM
Support for Windows® 11 64-bit
PCB Info
E-ATX277mmx304.8mm
Warranty
3 Years
Note
*** Features, Price, Specifications are subject to change without notice.
