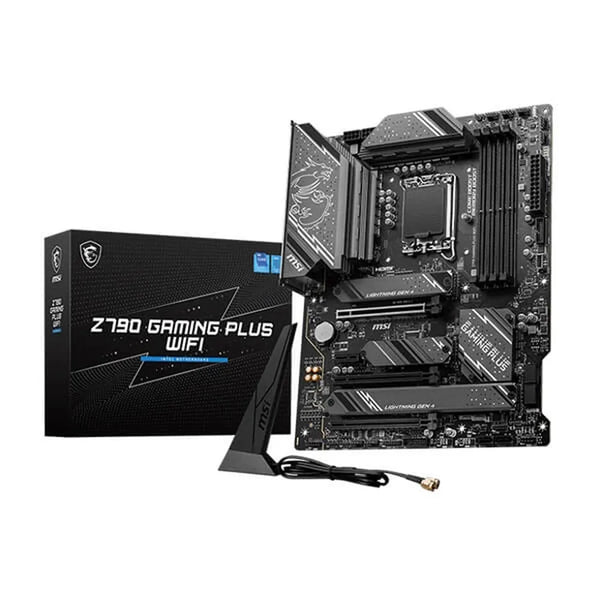

MSI Z790 Gaming Plus Wifi DDR5 Intel Motherboard

Product Description

Features Of MSI Z790 Gaming Plus Wifi

Supports Intel® Core™ 14th, 13th and 12th Gen Processors, Intel® Pentium® Gold, Celeron® Processor and Intel Processor 300(T) for LGA 1700 socket
MSI Z790 Gaming Plus Wifi DDR5 Memory, up to 7200+(OC) MHz
Enhanced Power Design: 14+1+1 Duet Rail Power System with DrMOS, dual 8-pin CPU power connectors, Core Boost, Memory Boost
Premium Thermal Solution: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads are built for high performance system and non-stop gaming experience
Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 4 x4 M.2 with M.2 Shield Frozr, USB 3.2 Gen 2×2 20G
High Quality PCB: 6-layer PCB made by 2oz thickened copper
Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience
Specifications Of MSI Z790 Gaming Plus Wifi


Model
Z790 GAMING PLUS WIFI
Chipset
INTEL Z790
CPU SUPPORT
Support Intel® Core™ 14th, 13th and 12th Gen Processors, Intel® Pentium® Gold, Celeron® Processor and Intel Processor 300(T)LGA 1700
Memory
4x DDR5, Maximum Memory Capacity 192GBMemory Support 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHzMax. overclocking frequency:• 1DPC 1R Max speed up to 7200+ MHz• 1DPC 2R Max speed up to 6600+ MHz• 2DPC 1R Max speed up to 6400+ MHz• 2DPC 2R Max speed up to 5600+ MHzSupports Intel® XMP3.0 OCSupports Dual-Controller Dual-Channel modeSupports non-ECC, un-buffered memory
Onboard Graphics
1x HDMI™Support HDMI™ 2.1 HDR, maximum resolution of 4K 60Hz*1x DisplayPortSupport DP 1.4, maximum resolution of 4K 60Hz**Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
EXPANSION SLOT
3x PCI-E x16 slot1x PCI-E x1 slotPCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset)
Storage
4x M.2M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devicesM.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devicesM.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devicesM.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices6x SATA 6G
RAID
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devicesSupports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices
USB
4x USB 2.0 (Rear)4x USB 2.0 (Front)2x USB 3.2 Gen1 Type A (Rear)4x USB 3.2 Gen1 Type A (Front)1x USB 3.2 Gen2 Type A (Rear)1x USB 3.2 Gen2 Type C (Front)1x USB 3.2 Gen2x2 Type C (Rear)
LAN
Intel® 2.5Gbps LAN
WIRELESS / BLUETOOTH
Intel® Wi-Fi 6EThe Wireless module is pre-installed in the M.2 (Key-E) slotSupports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4GbpsSupports 802.11 a/ b/ g/ n/ ac/ axSupports Bluetooth® 5.3, FIPS, FISMA* Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11.** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.
Audio
Realtek® ALC897 Codec7.1-Channel High Definition AudioSupports S/PDIF output
Internal I/O
1x Power Connector(ATX_PWR)2x Power Connector(CPU_PWR)1x CPU Fan1x Pump Fan6x System Fan2x Front Panel (JFP)1x Chassis Intrusion (JCI)1x Front Audio (JAUD)1x TBT connector (JTBT, supports RTD3)1x Tuning Controller connector(JDASH)2x Addressable V2 RGB LED connector (JARGB_V2)2x RGB LED connector(JRGB)1x TPM pin header(Support TPM 2.0)4x USB 2.0 ports4x USB 3.2 Gen1 Type A ports1x USB 3.2 Gen2 Type C ports1x USB4 card connector (JTBT_U4_1, supports RTD3)
LED FEATURE
4x EZ Debug LED
BACK PANEL PORTS
Keyboard / MouseDisplayPortUSB 2.02.5G LAN PortWi-Fi / Bluetooth AntennaAudio ConnectorsFlash BIOS ButtonUSB 2.0HDMI™ 2.1 PortUSB 3.2 Gen 1 5Gbps Type-AUSB 3.2 Gen 2×2 20Gbps Type-CUSB 3.2 Gen 2 10Gbps Type-A
OPERATING SYSTEM
Support for Windows® 11 64-bit, Windows® 10 64-bit
PCB Dimension (W × L)
ATX243.84mmx304.8mm
Warranty
3 Years
Note
*** Features, Price, Specifications are subject to change without notice.
