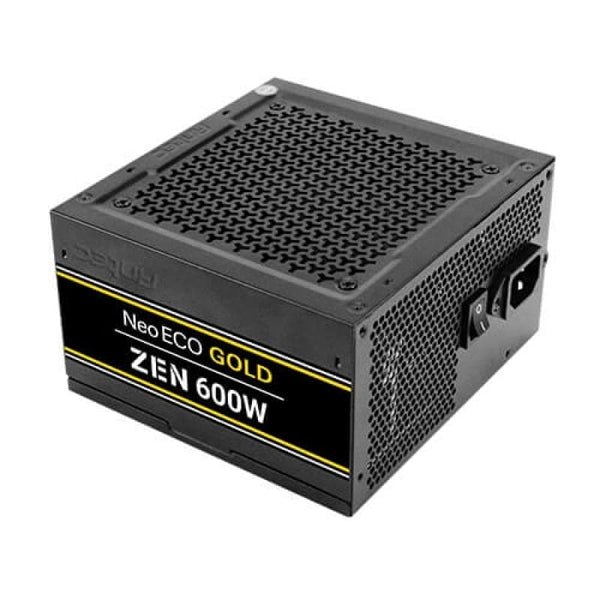

ANTEC NE600G ZEN 600W 80+ Gold Non Modular ATX 2.0 Power Supply

Product Description

Features of ANTEC NE600G ZEN

The new ANTEC NeoECO Gold ZEN series features high performance with an 80 PLUS Gold rating, achieving up to 92% efficiency and gives you savings unheard of from other power supplies.Featuring a 120mm whisper-quiet high-quality fan and CircuitShield™ Industrial Grade Protection-all backed up by our 5-year Antec Quality Warranty, NeoECO Gold ZEN series offers a highly efficient, affordable power solution.
Antec 5-Year Warranty
We stand by the quality and safety of the NeoECO Gold ZEN Supplies, offering a 5-year parts and labor warranty and unlimited access to our incomparable technical support and customer service.
Japanese Heavy-Duty Caps
Japanese capacitors ensure the tightest DC stability and regulation, for reliability that you and your system can count on.
LLC DC to DC Design
A server-class Half-Bridge LLC design with a synchronous rectification based on a DC-DC topology.
120 mm Silent Fan
Features a Thermal Manager, an advanced low voltage fan control for optimal heat & noise management and will allow your PSU to stay at an optimal temperature.
99% 12V Output
Engineered with high-quality capacitors and low-noise transformers, the NeoECO Gold ZEN series provide clean, stable power with maximum CPU & GPU support

Specifications of ANTEC NE600G ZEN


Model
NE600G Zen
Type
ATX 12V 2.4
Modular
－
Dimension
140(L) x 150(W) x 86(H)
Warranty
5 years
Input Voltage
100-240 VAC
Input Current
8A-4A
Input Frequency Range
50Hz-60Hz
PFC
Active PFC
Power Good Signal
100-500ms
Efficiency
Up To 92%
Protection
OCP/OVP/UVP/SCP/OPP/NLO
Output Capacity
600W
Operation Temperature
0~40°C
Regulatory
cTUVus/TUV/CB/RCM/CE/CCC/BSMI/FCC/KC
Fan
120mm Silence Fan
Certifications
80 Plus Gold
Connector
1 x MB 24(20 4) Pin
1 x 8(4 4) Pin EPS 12V
4 x 8(6 2) Pin PCI-E
6 x SATA
2 x Molex
Net Weight
1.73 Kgs
Gross Weight
2.10 Kgs
UPC#
0-761345-11680-0 NE600G ZEN
0-761345-11681-7 NE600G ZEN AU
0-761345-11682-4 NE600G ZEN EC
0-761345-11683-1 NE600G ZEN GB
0-761345-11684-8 NE600G ZEN JP
