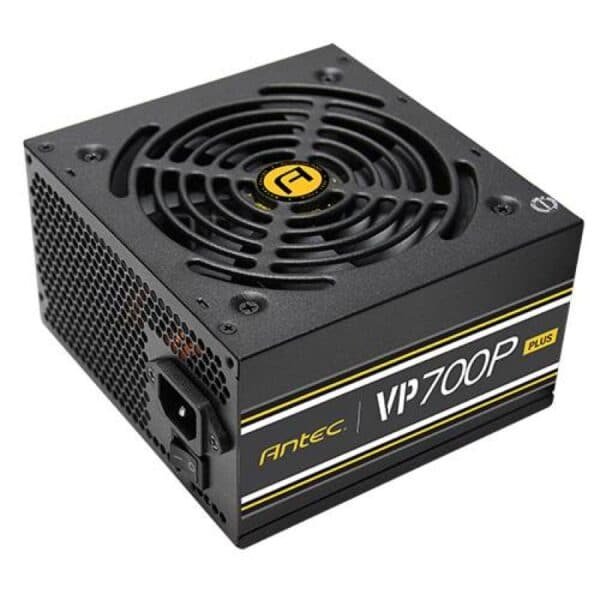

ANTEC VP700P Plus 700W 80+ White Non Modular ATX Power Supply

Product Description

Features of ANTEC VP700P Plus

The new generation of ANTEC VP700P PLUS is crafted for quality, performance and incredible value.
This entry-level solution is rated from 500W to 700W, saving energy through its high efficiency of up to 85% efficient and is 80 PLUS® 230V Standard certified.
Continuous Power – Guaranteed 700W Continuous Power from Antec
80 PLUS® 230V Standard Certified – Up to 85% efficient, to reduce your electricity bill
AQ3 – Antec Quality 3 year warranty
120mm Silent Fan
Thermal Manager – An advanced low voltage fan control for optimal heat & noise management
CircuitShield™ – Full suite of industrial grade protections: UVP/OVP/SCP/OPP/NLO
Multi PCI-E – 4 PCI-E connectors for multiple GPU support
Delivering up to 85% efficiency,
the VP P PLUS series utilizes active PFC, and provides efficiency during max and low loads—living up to the performance standards that we are known for.
3 Year Warranty:
We stand by the quality and safety of the VP_P PLUS Power Supplies, offering a 3-year parts and labor warranty and unlimited access to our incomparable technical support and customer service.
120 mmSilent Fan
The 120 mm Silent Fan is ideal for quiet computing and is designed for longer life, guaranteeing hours of operation.
Features a Thermal Manager, an advanced low voltage fan control for optimal heat & noise management and will allow your PSU to stay at an optimal temperature.
Single 12V Rail Design
VP700P PLUS series is equipped with strong single + 12V rail.The higher-ranking performance with high load capabilities ensures maximum CPU & GPU compatibility.
Specifications of ANTEC VP700P Plus


Model
VP700P PLUS
Modular
Non-Modular
Dimension (W x L x H)
140(D)*150(W)*86(H)
Warranty
3 years
Input Voltage
200-240 VAC ±10%
Input Current
5A
Input Frequency Range
47Hz-63Hz
PFC
Active PFC (>0.9 typical)
Power Good Signal
100-500ms
Efficiency
85% Typically
Protection
UVP/OVP/SCP/OPP/NLO
Output Capacity
700W
Regulatory
TUV/CB/CE
Fan
120mm Silent Fan
Certifications
80 Plus
Connector
1 x MB 24(20 4) Pin
1 x 8(4 4) Pin EPS 12V
4 x 8(6 2) Pin PCI-E
7 x SATA
2 x Molex
1 x FDD
Net Weight
1.89 Kgs
Gross Weight
2.31 Kgs
UPC#
0-761345-11657-2 VP700P Plus EC
0-761345-11658-9 VP700P Plus AU
0-761345-11659-6 VP700P Plus GB
0-761345-11665-7 VP700P Plus TH
