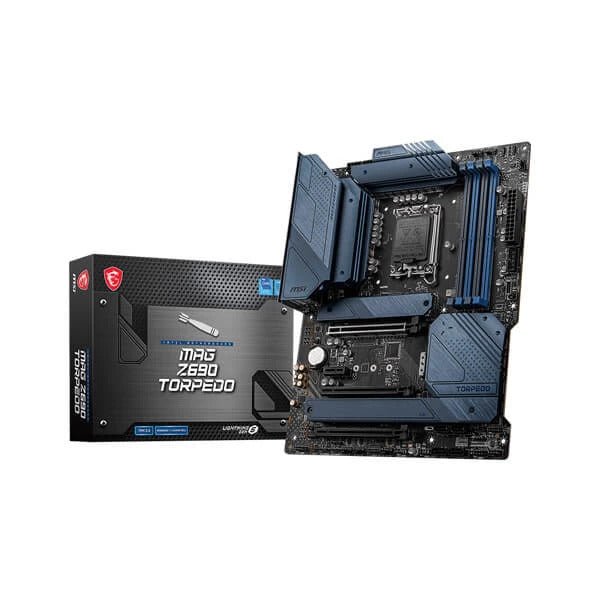

MSI MAG Z690 Torpedo DDR5 Intel Motherboard

Product Description

Feature of MSI MAG Z690 Torpedo DDR5

Supports 12th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1700 socket
Supports DDR5 Memory, up to 6400(OC) MHz
Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works
2.5G LAN and Intel Wi-Fi Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
Lightning M.2: Running at PCIe Gen 5 maximizes performance for NVMe based SSDs
Lightning USB 20G: Built-in USB 3.2 Gen 2×2 port, offers 20Gbps transmission speed, 4X faster than USB 3.2 Gen 1
AUDIO BOOST 5: Reward your ears with studio grade sound quality for the most immersive gaming experience
Multi-GPU: With Steel armor PCIe slots. Supports AMD Crossfire™
Quadruple M.2 Connectors
Onboard quadruple M.2 connectors for the maximum storageperformance.
M.2 Shield FROZR
M.2 thermal accessory. Keeps M.2 SSDs safe while preventingthrottling, making them run faster.
Lightning Gen 5
The latest PCIe 5.0 solution with up to 128GB/s bandwidth formaximum transfer speed.
Latest DDR5 Memory
A huge step of DDR performance enhancement with the latest DDR5 memory and MSI Memory Boost technology in MSI MAG Z690 Torpedo
2.5G Network Solution
Featuring premium 2.5G LAN with LAN manager to deliver better network experience.
Lightning USB 20G
Built-in USB 3.2 Gen 2×2 port, offers 20Gbps transmission speed, 4X faster than USB 3.2 Gen 1.
Memory Boost
Advanced technology to deliver pure data signals for the best performance, stability and compatibility.
Audio Boost 5
Isolated audio with a high quality audio processor & amp for themost immersive gaming experience in MSI MAG Z690 Torpedo
Specifications of MSI MAG Z690 Torpedo DDR5


Processor
Supports 12th Gen Intel® Core™, Pentium® Gold and Celeron® processors1 Processor socket LGA1700Please go to msi.com to get the newest support status as new processors are released.
Chipset
Intel® Z690 Chipset
Memory
4x DDR5 memory slots, supporting up to 128GB Supports 1R 4800 MHz (by JEDEC & POR)Max overclocking frequency:1DPC 1R Max speed up to 6400+ MHz1DPC 2R Max speed up to 5400+ MHz2DPC 1R Max speed up to 4000+ MHz2DPC 2R Max speed up to 4000+ MHzSupports Intel® XMP 3.0 OCSupports Dual Controller Dual-Channel modeSupports non-ECC, un-buffered memoryPlease refer to www.msi.com for more information on compatible memory.
Expansion Slot
3x PCIe x16 slotsPCI_E1 (From CPU)Support up to PCIe 5.0 x16PCI_E3 (From Z690 chipset)Support up to PCIe 3.0 x4PCI_E4 (From Z690 chipset)Support up to PCIe 3.0 x11x PCIe 3.0 x1 slot (From Z690 chipset)
Multi-GPU
Supports AMD® CrossFire™ Technology
Onboard Graphics
1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz1x DisplayPort 1.4 port with HBR3, supports a maximum resolution of 4K 60HzAvailable only on processors featuring integrated graphics.Graphics specifications may vary depending on the CPU installed
Storage
6x SATA 6Gb/s ports (From Z690 chipset)4x M.2 slots (Key M)M2_1 slot (From CPU)Supports up to PCIe 4.0 x4Supports 2242/ 2260/ 2280/ 22110 storage devicesM2_2 slot (From Z690 chipset)Supports up to PCIe 4.0 x4Supports 2242/ 2260/ 2280 storage devicesM2_3 slot (From Z690 chipset)Supports up to PCIe 3.0 x4Supports up to SATA 6Gb/sSupports 2242/ 2260/ 2280 storage devicesM2_4 slot (From Z690 chipset)Supports up to PCIe 4.0 x4Supports up to SATA 6Gb/sSupports 2242/ 2260/ 2280 storage devicesIntel® Optane™ Memory Ready for M.2 slots from Z690 ChipsetSupports Intel® Smart Response Technology for Intel Core™ processors
RAID
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devicesSupports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices
USB
Intel® Z690 Chipset1x USB3.2 Gen2x2 20Gbps Type-C port on the back panel4x USB 3.2 Gen 2 10Gbps ports (1 Type-C internal connector, 3 Type-A ports on the back panel)4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports through the internal connector)1x USB 2.0 Type-A port on the back panelHub-GL850G5x USB 2.0 ports (1 Type-A port on the back panel, 4 Type-A ports available through internal connectors)
Audio
Realtek® ALC4080 Codec7.1-Channel High Definition AudioSupports S/PDIF output
LAN
1x Intel® I225V 2.5Gbps LAN controller
Internal connectors
1x 24-pin ATX main power connector2x 8-pin ATX 12V power connectors6x SATA 6Gb/s connectors4x M.2 slots (M-Key)1x USB 3.2 Gen 2 10Gbps Type-C port1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 Type-A connectors (supports additional 4 USB 2.0 ports)1x 4-pin CPU fan connector1x 4-pin water-pump fan connector6x 4-pin system fan connectors1x Front panel audio connector2x System panel connectors1x Chassis Intrusion connector1x TPM module connector1x Clear CMOS jumper1x TBT connector (supports RTD3)1x Tuning Controller connector
LED Feature
1x EZ LED Control switch1x 4-pin RGB LED connectors3x 3-pin RAINBOW LED connectors4x EZ Debug LED
Back panel ports
DisplayPort 1.4USB 2.0 PortUSB 3.2 Gen 2 10Gbps Type-A2.5G LAN PortHD Audio ConnectorsHDMI 2.1 PortFlash BIOS ButtonUSB 3.2 Gen 1 5Gbps Type-AUSB 3.2 Gen 2 10Gbps Type-AUSB 3.2 Gen 2×2 20Gbps Type-COptical S/PDIF OUT
Dimensions
ATX Form Factor12 in. x 9.6 in. (30.5 cm x 24.4 cm)
Warranty
3 Years
Note
*** Features, Price, Specifications are subject to change without notice.
