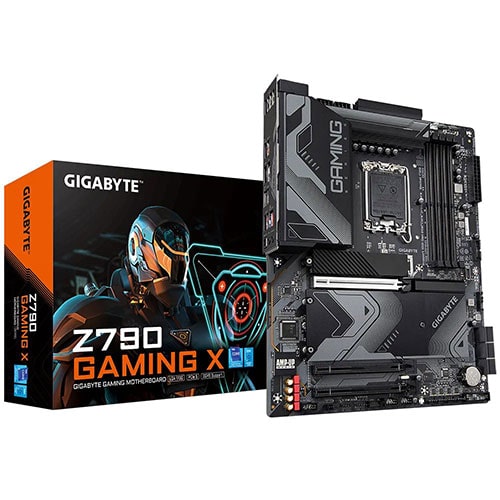

GIGABYTE Z790 Gaming X DDR5 Intel Motherboard

Product Description

Features of GIGABYTE Z790 Gaming X DDR5 Intel Motherboard

UNPARALLELED PERFORMANCE
With the fast-moving technology changes, GIGABYTE Z790 Gaming X always follows the latest trends and provides customers with advanced features and latest technologies. GIGABYTE motherboards are equipped with upgraded power solution, latest storage standards and outstanding connectivity to enable optimized performance for gaming.
OUTSTANDING THERMAL DESIGN
GIGABYTE Motherboards’ Un-throttled performance is guaranteed by innovative and optimized thermal design to ensure the best CPU, Chipset, SSD stability and low temperatures under full load application and gaming performance
CONNECTIVITY
GIGABYTE Motherboards enable the ultimate connection experience with blazing data-transfer speeds through the next generation network and storage connectivity.
PERSONALIZATION
GIGABYTE motherboards bundle several useful and intuitive software to help users to control every aspect of motherboard and provide customizable lighting effect with outstanding aesthetics to fit your unique personality.
ULTRA DURABLE
GIGABYTE Ultra Durable™ design provides product durability and high-quality manufacturing process. GIGABYTE motherboards use the best components and reinforce every slots to make each of them solid and durable.
Technical Detail
Brand : GigabyteModel : Z790 GAMING X
Technical Spec
CPU
LGA1700 socket: Support for the 13th and 12th Generation Intel® Core™, Pentium® Gold and Celeron® ProcessorsL3 cache varies with CPU
Chipset
Intel® Z790 Express Chipset
Memory
Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 memory modules4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memoryDual channel memory architectureSupport for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modulesSupport for Extreme Memory Profile (XMP) memory modules
Onboard Graphics
Integrated Graphics Processor-Intel® HD Graphics support:1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz1 x DisplayPort, supporting a maximum resolution of 4096×2304@60
Audio
Realtek® Audio CODECHigh Definition Audio2/4/5.1/7.1-channelSupport for S/PDIF Out
LAN
Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Expansion Slots
CPU:1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
Chipset:1 x PCI Express x16 slots, supporting PCIe 4.0 and running at x4 (PCIEX4_1)1 x PCI Express x16 slots, supporting PCIe 3.0 and running at x4 (PCIEX4_2)
Storage Interface
CPU:1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Chipset:2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2Q_SB)1 x M.2 connector (Socket 3, M key, type 22110/2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB)6 x SATA 6Gb/s connectorsRAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devicesRAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
USB
Chipset : 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2×2 support1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)Chipset+2 USB 2.0 Hubs:8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
Internal I/O Connectors
1 x 24-pin ATX main power connector2 x 8-pin ATX 12V power connectors1 x CPU fan header1 x water cooling CPU fan header3 x system fan headers1 x system fan/water cooling pump header2 x addressable LED strip headers2 x RGB LED strip headers4 x M.2 Socket 3 connectors6 x SATA 6Gb/s connectors1 x front panel header1 x front panel audio header1 x USB Type-C® header, with USB 3.2 Gen 2 support1 x USB 3.2 Gen 1 header2 x USB 2.0/1.1 headers2 x Thunderbolt™ add-in card connectors1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)1 x Q-Flash Plus button1 x reset button1 x reset jumper1 x Clear CMOS jumper
Back Panel Connectors
4 x USB 2.0/1.1 ports2 x USB 3.2 Gen 2 Type-A ports (red)1 x DisplayPort1 x HDMI 2.0 port3 x USB 3.2 Gen 1 ports1 x USB Type-C® port, with USB 3.2 Gen 2×2 support1 x RJ-45 port1 x optical S/PDIF Out connector2 x audio jacks
I/O Controller
iTE® I/O Controller Chip
H/W Monitoring
Voltage detectionTemperature detectionFan speed detectionWater cooling flow rate detectionFan fail warningFan speed control
BIOS
1 x 256 Mbit flashUse of licensed AMI UEFI BIOSPnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
Support for GIGABYTE Control Center (GCC)Support for Q-FlashSupport for Q-Flash PlusSupport for Smart Backup
Operating System
Support for Windows 11 64-bitSupport for Windows 10 64-bit
Form Factor
ATX Form Factor; 30.5cm x 24.4cm

Specifications of GIGABYTE Z790 Gaming X DDR5 Intel Motherboard


Model
Brand
GIGABYTE
Model
Z790 GAMING X
Supported CPU
CPU Socket Type
LGA1700
CPU Type
13th and 12th Generation Intel Core, Pentium Gold and Celeron Processors
Chipsets
Chipset
INTEL Z790
Memory
Number of Memory Slots
4 x DDR DIMM
Memory Standard
DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 memory modules
Maximum Memory Supported
128 GB
Channel Supported
Dual Channel DDR4 Memory Technology
Expansion Slots
PCI Express x16
1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)/1 x PCI Express x16 slots, supporting PCIe 4.0 and running at x4 (PCIEX4_1)/1 x PCI Express x16 slots, supporting PCIe 3.0 an
Storage Devices
SATA 3Gb/s
6 x SATA 6Gb/s connectors
Onboard Video
Onboard Video Chipset
Integrated Graphics Processor-Intel® HD Graphics
Onboard Audio
Audio Channels
2/4/5.1/7.1-channel
Audio Chipset
Realtek audio codec
Onboard LAN
LAN Chipset
Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Rear Panel Ports
USB
4 x USB 2.0/1.1 ports, 2 x USB 3.2 Gen 2 Type-A ports (red),3 x USB 3.2 Gen 1 ports, 1 x USB Type-C® port, with USB 3.2 Gen 2×2 support
S/PDIF Out
1 x optical S/PDIF Out connector
Audio Ports
2 x audio jacks
Video Ports
1 x DisplayPort and 1 x HDMI
HDMI
1 x HDMI 2.0 port
Onboard USB
Onboard USB
N/A
Onboard 1394
Onboard 1394
N/A
Physical Spec
Form Factor
ATX
Power Pin
1 x 24-pin Main Power connector, 2 x 8-pin +12V Power connectors
Dimensions
30.5cm x 24.4cm
