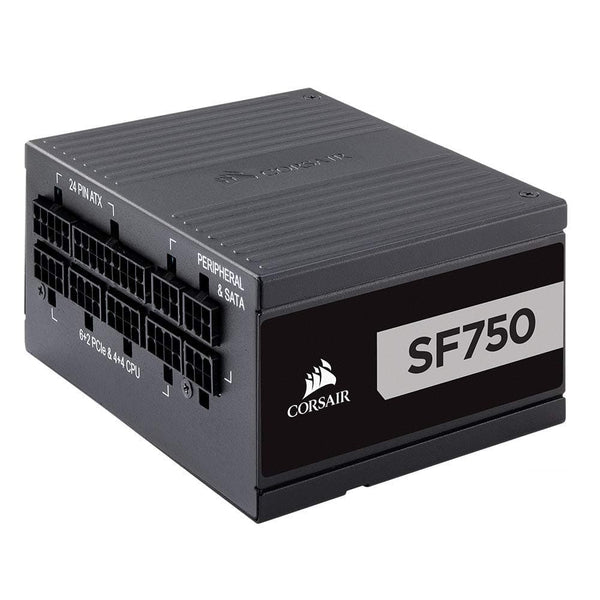

CORSAIR SF750 80+ Platinum Fully Modular Power Supply (750 W)

Product Description

Features of CORSAIR SF750

The CORSAIR SF750 80 PLUS Platinum SFX Power Supply is an extraordinarily power-dense PSU, ready to power the most cutting-edge small form factor PCs with 750 continuous watts.
AN UNPRECEDENTED 750 WATT SFX PSU
The most powerful SFX power supply in the market, perfect for the most power-dense small-form-factor PCs.
80 PLUS PLATINUM CERTIFIED
The SF750 Platinum delivers power at up to 92% efficiency, lowering energy consumption, noise, temperatures, and your power bill.
JAPANESE 105°C CAPACITORS
Using high-end electrolytic capacitors, the SF750 Platinum offers the unwavering power and long-term reliability you demand from a CORSAIR power supply.
ZERO RPM FAN MODE
The SF750 Platinum’s 92mm cooling fan doesn’t spin until you need it, for near-silent operation at low and medium loads.
92MM PWM LOW NOISE COOLING FAN
Utilizing PWM instead of the standard DC voltage control, the SF750 Platinum keeps noise low and delivers precise fan speed. The SF750 Platinum also utilizes a copper alloy heatsink, ensuring optimal thermal performance.
FULLY MODULAR CABLES
SF Platinum Series power supplies come equipped with premium, individually sleeved cables featuring a flexible paracord sleeve, ready to fit right into your new high-end PC. The individually sleeved cables also make routing and cable management a breeze, with a lower profile and improved flexibility.
SFX-TO-ATX BRACKET INCLUDED
SF Platinum Series power supplies include an SFX-to-ATX power supply adapter bracket enabling installation into any ATX compatible case.
SEVEN-YEAR WARRANTY
CORSAIR offers a seven-year warranty on all SF Platinum Series power supplies, your guarantee of reliable operation that will last across several system builds. If you need help, CORSAIR customer service and tech support are always on hand.

Specifications of CORSAIR SF750


Model
CP-9020186-UK
ATX Connector
1
Adjustable Single/Multi 12V Rail
No
ATX12V Version
v2.4
Continuous output rated temperature C
50°C
Continuous power W
750 Watts
Fan bearing technology
Rifle Bearing
Fan size mm
92mm
MTBF hours
100,000 hours
Multi-GPU ready
Yes
80 PLUS Efficiency
Platinum
PSU Form Factor
SFX/SFF
Zero RPM Mode
Yes
iCUE Compatibility
No
C-Link Ready
No
Cable Type
Low Profile
Dimensions
100mm x 63mm x 125mm
EPS12V Connector
2
EPS12V Version
v2.92
Modular
Fully
SATA Connector
8
PATA Connector
3
PCIe Connector
4
Modern Standby Compatible
No
Warranty
7 Years
Note
***Features, Price and Specifications are subject to change without notice.
