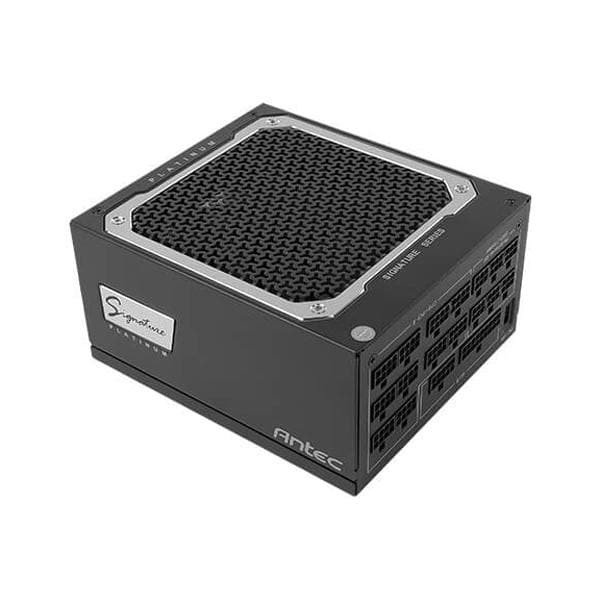

ANTEC Signature 1300 1300W 80+ Platinum Fully Modular ATX 2.0 Power Supply

Product Description

Features of ANTEC Signature 1300

Equipped with superior features that ensure peak performance for the enthusiast and gaming-oriented segment, the ANTEC Signature power supply Series boasts unparalleled stability and 80 PLUS® Platinum-certified efficiencies. Advanced thermal control with the Zero RPM mode enables the optimal balance between silence and cooling. The CircuitShield™ suite of industrial-grade protections ensures that the power delivered to your system is safe and reliable in any environment. Signature Series are a great choice for a reliable and efficient PC system for gamers and professionals.
FDB 135mm Silent Fan
Zero RPM Mode
100% Top-Grade Japanese Capacitors
Phase Wave Design
OC Link Feature
10-year Warranty
Full Modular Cable Management
FDB 135mm Silent Fan
Featuring whisper-quiet, fluid dynamic bearing 135mm fan provides high airflow with durability and longevity.
Zero RPM Mode
The Zero RPM fan mode further ensures a longer-lasting and quieter system by using thermal sensors to activate the fan only when you need it.
100% Top-Grade Japanese Capacitors
Achieve unprecedented tight voltage regulation & low ripple& noise to maximize your system’s performance.
PhaseWavetm Design
A server-class full-bridge LLC design with a synchronous rectification based on a DC-DC topology.
OC Link Feature
Allows 2 Signature PSUs to work in tandem to power the most demanding systems.
10-year Warranty
This new PSU line from Antec pushes the standard for excellence with the circuit shield suite of industrial protections and is backed by a 10-year warranty.
Full Modular Cable Management
Enables users to use only the cables which are needed and help clear out excess cables that can obstruct and reduce airflow.

Specifications of ANTEC Signature 1300


Model
Signature 1300 Platinum
Type
ATX
Modular
Fully
Dimension (W x L x H)
150 x 170 x 86mm
Input Voltage
100-240
Input Current
15A ~ 7.5A
Input Frequency Range
47Hz ~ 63Hz
PFC
APFCPFC at half / full load:>0.95 at AC 110v 60Hz(typical)>0.90 at AC 230v 50Hz(typical)
Power Good Signal
100 ~ 500mS
Efficiency
At 20% / 50% / 100% load AC 115V internal,the power efficiency should be at least 90% / 92% / 89%.
Protection
OCP / OVP / UVP / SCP / OPP / OTP / SIP / NLO
Output Capacity
1300W
Operation Temperature
0 ~ 40°C
Regulatory
CB, CE, FCC, BSMI, TUV, cTUVus, 3C, KC, RCM
Fan
135 x 135 x 25(mm) FDB Silent Fan
Certifications
80 Plus Platinum
Connector
1 x MB 24(20+4) Pin2 x 8(4+4) Pin EPS 12V12 x 8(6+2) Pin PCI-E14 x SATA5 x Molex1 x FDD
Warranty
10 Years
Note
***Features, Price and Specifications are subject to change without notice.
