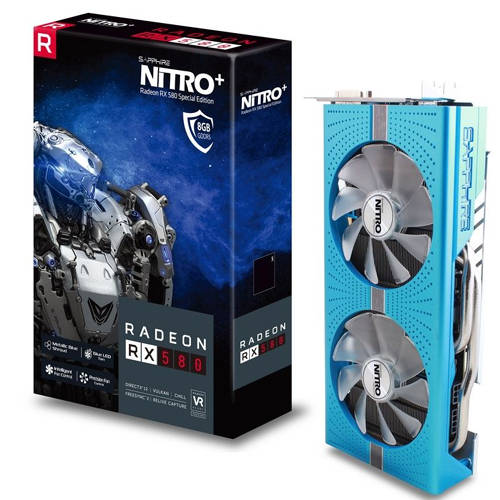

SAPPHIRE Nitro+ Radeon RX 580 Special Edition 8GB AMD Graphic Card

Product Description

Features of SAPPHIRE Nitro+ Radeon RX 580 Special Edition 8GB AMD Graphic Card

All-NEW DUAL-X COOLER
The Dual-X cooler featured in the latest SAPPHIRE Nitro+ Radeon RX 580 Special Edition 8GB AMD Graphic Card is an all-new design. Dual-X Cooling is powered by two massive yet silent fans and state-of-the-art radiator design. The new form of our 95mm blades mean greater airflow and superior heatsink coverage at lower noise compared to standard cooling designs. These feature dual ball bearing fans, which have an 85% longer lifespan than sleeve bearings in our tests.
Intelligent Fan Control III
ZERO DB COOLING
Enjoy complete silence under light workloads with entirely passive cooling. No spinning fans means no distractions while you work or chill.
PRECISE FAN CONTROL
Traditional fan may have up to 10% difference on fan RPM from fan to fan at the same fan duty cycle. Now with the new fan controller on the SAPPHIRE NITRO+, this tolerance is reduced to 3.2%. This improvement on the accuracy ensures the cooling and noise performance of every card is up to the standard.
SAPPHIRE QUICK CONNECT
With NITRO+ models, SAPPHIRE has upped the stakes with its new Fan Check system. To resolve a specific fan issue, SAPPHIRE’s Quick Connect System provides a quick and easy solution. If there’s a fan issue detected, the user doesn’t need to return the entire card.
The Graphics card is more than just another component; it’s the beating heart of your gaming system. With tasteful shroud design augmented by RGB LEDs’, each card is practically a piece of art.
GPU
Built on the future-proof Polaris architecture, the NITRO Gaming Series Graphics Cards+ play games at a smooth 1080p and beyond.
VR Friendly
The SAPPHIRE NITRO Gaming Series cards come with Dual HDMI ports, specifically designed to work with VR.
Cooling
Innovative cooling technologies to ensure optimal performance and airflow.
ROBUST VRM COOLING
On the cooling module, heatsink is stamped to the shape of the MOSFET with high thermal conductivity pad to take away the heat efficiently. On the backplate, same idea is also implemented around the back side of the MOSFET area.
Radeon Chill
Radeon™ Chill, the dynamic power-saving tool, just got even cooler. Radeon™ Chill has been revamped to fine-tune power savings per DPM state, saving even more power 5 while delivering the same amazing experience.
Engine Clock: Up to 1411 MHz (Boost)
Memory: 8GB GDDR5 8000 MHz Effective
2304 Stream Processor
1440p Gaming
Dual-X Cooling
NITRO Glow, Quick Connect

Specifications of SAPPHIRE Nitro+ Radeon RX 580 Special Edition 8GB AMD Graphic Card


MEMORY SIZE
8GB
Output
1 x DVI-D 2 x HDMI 2 x DisplayPort 1.4
BIOS Support
UEFI BIOS
Memory
256 bit Memory Bus GDDR5 Memory Type 2000 MHz, 8000 MHz Effective 8 GB Size
MEMORY TYPE
GDDR5
GPU
2304 Stream Processors 14 nm FinFET 4th Graphics Core Next (GCN) 1411 MHz Boost Engine Clock
SERIES
RX 580
API
OpenGL® 4.5 OpenCL 2.0 DirectX® 12 Shader Model 5.0
Feature
AMD CrossFire FreeSync Technology AMD Eyefinity Quad HD Display (4K*2K Support) Dual BIOS AMD Liquid VR Technology AMD Xconnect ready DirectX™ 12 Optimized Radeon VR ready Premium HDR Ready Frame Rate Target Control NITRO Fan Check NITRO Quick Connect system NITRO Glow RGB LED NITRO CoolTech(NCT) NITRO Free Flow Dual-X Cooling NITRO Boost Intelligent Fan Control III Black Diamond Choke 4 Fuse protection Precision fan control Robust VRM Cooling Radeon Chill Radeon Relive
Resolution
3840×2160 (120Hz) Pixel DisplayPort Resolution 2560×1600 (60Hz) Pixel Dual Link DVI Resolution 3840×2160p (60 Hz) HDMI Resolution
Cooling
Dual-X fans Two ball bearing
CHIPSET
AMD Radeon
Form Factor
2.2 Part Slot Occupied 260(L)X 135(W)X 43 (H) Dimension /mm
Power Consumption
<235W
WARRANTY
3 Years
Note*
Colors of PCB or other components may differ from those illustrated. All trademarks and logos are acknowledged as the property of their respective holders. Price, feature and specifications are subject to change without notice.
