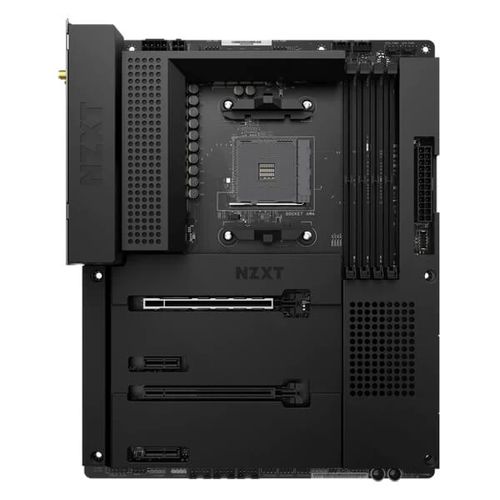

NZXT N7 B550 Wifi DDR4 AMD Motherboard (Matte Black Cover)

Current price is: ₹21,115.00. Original price was: ₹29,561.00.

NZXT N7 B550 Wifi DDR4 AMD Motherboard (Matte Black Cover)

NZXT N7 B550 Wifi DDR4 AMD Motherboard (Matte Black Cover)

Current price is: ₹21,115.00. Original price was: ₹29,561.00.

Buy Now
Add to cart

Product Description

Feature of NZXT N7 B550 WiFi

WiFi 6E connectivity
Digital RGB lighting control through NZXT CAM
Digital fan control for fan profiles within NZXT CAM for seven independent fan channels
Integrated rear I/O shield and efficient layout
Compatible with 3rd Gen AMD™ Ryzen™ processors (3000, 4000, and 5000 Series Processors)
Intel® Wi-Fi 6E wireless connectivity and Bluetooth V5.2
Two M.2 connectors for storage devices
Multi-GPU support with AMD CrossFireX™ Technology
Supports memory overclocking up to 4600+ MHz and XMP
8-channel high-definition audio
AMD Gaming Motherboard with Wi-Fi and NZXT CAM Features
NZXT N7 B550 Wifi DDR4 provides everything builders need to get the job done. Featuring Wi-Fi 6E, Bluetooth, and a streamlined board layout, the N7 B550 simplifies the building process. With built-in digital RGB and fan controls, users can create fan curves or control RGB lighting from any manufacturer easily via NZXT CAM.
Compatible with 3rd Gen AMD Ryzen processors.
Includes Wi-Fi 6E and Bluetooth V5.2.
Two M.2 connectors for storage devices.
Four RGB and seven fan channels powered by NZXT CAM.
Highly Expandable
There is an array of ports and slots to expand your PC. The N7 B550 supports USB-C, two M.2 connectors for storage devices, multi-GPU support with AMD CrossFireX Technology, 5.1-Channel audio, and much more
For AMD Processors
Compatible with 3rd Gen AMD Ryzen processors (3000, 4000, and 5000 Series Processors). Not supported are the AMD Ryzen 5 3400G and Ryzen 3200G processors.
Smart Controls
The N7 B550 has digital RGB and Fan control, allowing intuitive control of four RGB lighting channels and seven fan channels through NZXT CAM. Lighting accessories from all manufacturers are supported.

Specifications of NZXT N7 B550 WiFi


Product Model
N7-B55XT-B1
CPU & Socket
AMD Socket AM4 Ryzen™ Processors (3000, 4000, and 5000 Series Processors) – SupportedAMD Ryzen™ 5 3400G and Ryzen™ 3200G – Not Supported
Chipset
AMD® B550
Memory
4 x DIMM, Max. 128GB, DDR44666+ MHz – OC Frequency (Vermeer CPUs)4666+ MHz – OC Frequency (Matisse CPUs)4733+ MHz – OC Frequency (Renoir APUs)3200/2933/2667/2400/2133 – Base FrequencyECC & non-ECC, un-buffered memory typeDual-channel memory architectureXMP Supported
Integrated Graphics
AMD Radeon™ Vega Series Graphics in Ryzen Series APU – HDMIHDMI™ with max. resolution of 4096×2160@60HzMaximum shared memory of 16GB with 32GB installedMicrosoft PlayReady® Supported
Multi-GPU Support
Supports AMD 2-Way CrossFireX™ Technology
Storage
1 x M.2 Type 2242/2260/2280 (x4 mode) – (Vermeer & Matisse – PCIe 4.0, Renoir – PCIe 3.0)1 x M.2 Type 2242/2260/2280 (PCIe 3.0 x2 & SATA mode)6 x SATA 6Gb/s – (M2_2 and SATA3_5_6 share lanes)RAID 0/1/5/10 Supported
LAN
Realtek® RTL8125BG 2.5G
Wireless
Intel® Dual-Band Wireless – AX210 Wi-Fi 6E802.11 a/b/g/n/ac/ax Protocol2.4 / 5 / 6GHz Frequency BandsSupports MU-MIMO
Bluetooth
Bluetooth V5.2
Audio
Realtek® ALC1220 Codec8-Channel High Definition Audio, 32-bit / 192KHz DACNichicon Fine Gold Series Audio Capacitors
Rear I/O
1 x USB 3.2 Gen 2 Type-C3 x USB 3.2 Gen 2 Type-A4 x USB 3.2 Gen 1 ports2 x USB 2.0 ports1 x HDMI 2.12 x Wireless Antenna (2T2R)1 x LAN (RJ45) Port1 x 5.1-Channel Audio Jacks1 x Optical S/PDIF1 x BIOS Flashback Button1 x Clear CMOS Button
Expansion Slots
1 x PCIe x16 (x16 mode) – (Vermeer & Matisse – PCIe 4.0, Renoir – PCIe 3.0)1 x PCIe x16 (x4 mode)2 x PCIe 3.0 x1
Internal I/O
1 x 24-pin EATX power connector1 x 8-pin ATX 12V power connector1 x 4-pin CPU_FAN connector1 x 4-pin AIO_PUMP connector (Up to 24W)5 x 4-pin SYS_FAN connectors (Up to 24W)1 x CPU_FAN Connector (Up to 24W)2 x NZXT RGB LED connectors1 x 5V Addressable RGB connector1 x 12V RGB connector1 x M.2 (M Key), Type 2242/2260/2280 – (PCIe 4.0/3.0 x4 mode), 1 (PCIe 3.0 x2 & SATA mode)1 x M.2 (E Key) (For wireless cards)6 x SATA 6Gbps Ports1 x USB 3.2 Gen 2 Header (Type-C)1 x USB 3.2 Gen 1 Header (Up to 2 ports)3 x USB 2.0 Header (Up to 6 ports)1 x Front Panel Audio1 x Power Button1 x Reset Button4 x POST LEDs
Operating System
Microsoft® Windows® 10 (64-bit)
Form Factor
ATX
Warranty
3 Years
Note
***Features, Specifications, Price are subject to change without notice.
