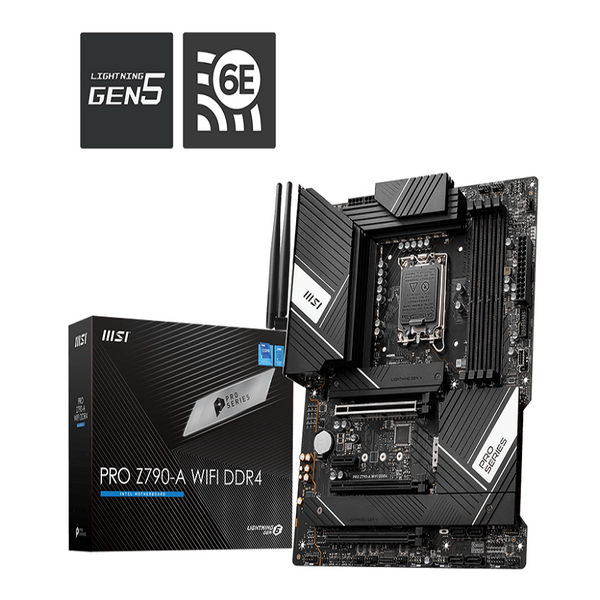

MSI Pro Z790-A Wifi DDR4 Intel Motherboard

Product Description

Features of MSI Pro Z790-A Wifi DDR4 Intel Motherboard

Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors for LGA 1700 socket
MSI Pro Z790-A Wifi DDR4 Supports DDR4 Memory, Dual Channel DDR4 5333+MHz (OC)
Enhanced Power Design:
16+1+1 DRPS with 80A SPS, dual 8-pin CPU power connectors, Core Boost, Memory Boost
Premium Thermal Solution:
Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop gaming experience
High Quality PCB:
6-layer PCB made by 2oz thickened copper and server grade level material
Lightning Fast Game experience:
PCIe 5.0 slot, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2×2
Intel Turbo USB 3.2 Gen 2:
Powered by Intel USB 3.2 Gen2 controller, Turbo USB ensures an uninterrupted connection with more stability and fastest USB speeds
2.5G LAN with Wi-Fi 6E Solution:
Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
AUDIO BOOST 5:
Reward your ears with studio grade sound quality for the most immersive gaming experience

Specifications of MSI Pro Z790-A Wifi DDR4 Intel Motherboard


CHIPSET
INTEL Z790
CPU SUPPORT
Supports 12th/13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® ProcessorsLGA 1700
MEMORY
4x DDR4, Maximum Memory Capacity 128GBMemory Support 5333/5200/5066/5000/4800/4600/4533/4400/
4266/4000/3866/3733/3600/3466/3333(O.C.)/3200/
3000/2933/2800/2666/2400/2133(By JEDCE & POR)Max. overclocking frequency:• 1DPC 1R Max speed up to 5333+ MHz• 1DPC 2R Max speed up to 4800+ MHz• 2DPC 1R Max speed up to 4400+ MHz• 2DPC 2R Max speed up to 4000+ MHzSupports Dual-Channel modeSupports non-ECC, un-buffered memorySupports Intel® Extreme Memory Profile (XMP)
ONBOARD GRAPHICS
1x HDMI™1x DisplayPortSupport HDMI™ 2.1 with HDR, maximum resolution of 4K 60Hz*Support DP 1.4, maximum resolution of 8K 60Hz**Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
EXPANSION SLOT
3x PCI-E x16 slot1x PCI-E x1 slotPCI_E1 PCIe 5.0 supports up to x16 (From CPU)PCI_E2 PCIe 3.0 supports up to x1 (From Chipset)PCI_E3 PCIe 4.0 supports up to x4 (From Chipset)PCI_E4 PCIe 3.0 supports up to x1 (From Chipset)
STORAGE
4x M.2 slotM.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devicesM.2_2 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devicesM.2_3 (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devicesM.2_4 (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices6x SATA 6G port
RAID
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devicesSupports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices
USB
2x USB 2.0 (Rear)4x USB 2.0 (Front)2x USB 3.2 Gen1 Type A (Rear)2x USB 3.2 Gen1 Type A (Front)3x USB 3.2 Gen2 Type A (Rear)1x USB 3.2 Gen2 Type C (Front)1x USB 3.2 Gen2x2 Type C (Rear)
LAN
Intel® 2.5Gbps LAN
WIRELESS / BLUETOOTH
Intel® Wi-Fi 6EThe Wireless module is pre-installed in the M.2 (Key-E) slotSupports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4GbpsSupports 802.11 a/ b/ g/ n/ ac/ axSupports Bluetooth® 5.3, FIPS, FISMA”* Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 10 build 21H1 and Windows 11.”
AUDIO
Realtek® ALC4080 Codec7.1-Channel USB High Performance AudioSupports S/PDIF output
INTERNAL I/O
1x Power Connector(ATX_PWR)2x Power Connector(CPU_PWR)1x CPU Fan1x Pump Fan6x System Fan2x Front Panel (JFP)1x Chassis Intrusion (JCI)1x Front Audio (JAUD)1x TBT connector (JTBT, supports RTD3)1x Tuning Controller connector(JDASH)3x Addressable V2 RGB LED connector (JARGB_V2)1x RGB LED connector(JRGB)1x TPM pin header(Support TPM 2.0)4x USB 2.02x USB 3.2 Gen1 Type A1x USB 3.2 Gen2 Type C
LED FEATURE
4x EZ Debug LED
BACK PANEL PORTS
DisplayPortUSB 2.02.5G LANWi-Fi / BluetoothAudio ConnectorsHDMI™Flash BIOS ButtonUSB 3.2 Gen 1 5Gbps (Type-A)USB 3.2 Gen 2 10Gbps (Type-A)USB 3.2 Gen 2×2 20Gbps (Type-C)S/PDIF-OUT
OPERATING SYSTEM
Support for Windows® 11 64-bit, Windows® 10 64-bit
PCB DIMENSION
ATX243.84mmx304.8mm
