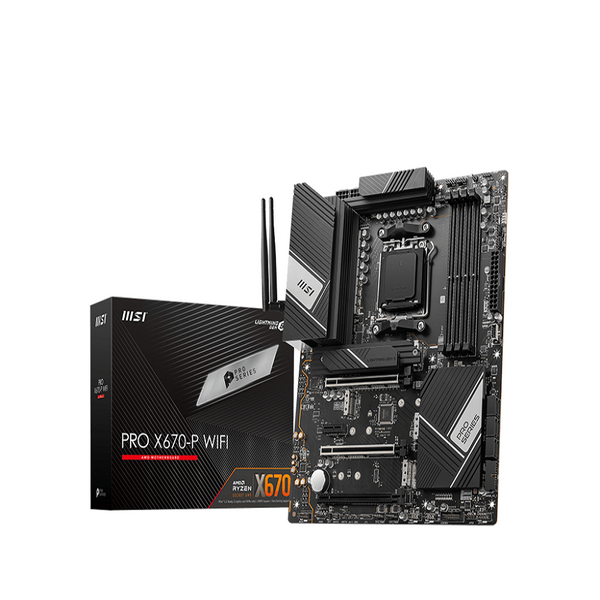

MSI Pro X670-P WIFI DDR5 AMD Motherboard

Product Description

Features OF MSI Pro X670-P WiFi

Supports AMD Ryzen™ 7000 Series Desktop Processors
MSI Pro X670-P Wifi DDR5 Memory, Dual Channel DDR5 6600+MHz (OC)
Enhanced Power Design: 14+2+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost
Premium Thermal Solution: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and Double-sided M.2 Shield Frozr are built for high performance system and non-stop gaming experience
High Quality PCB: 8-layer PCB made by 2oz thickened copper and server grade level material
Lightning Fast Game experience: PCIe 4.0 slots, Lightning Gen 5 x4 M.2, USB 3.2 Gen 2×2
2.5G LAN with Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
AUDIO BOOST 5: Reward your ears with studio grade sound quality for the most immersive gaming experience
Business Elegance
The MAG B650 TOMAHAWK WIFI is a gaming-oriented ATX motherboard constructed around the latest AMD B650 chipset that unites value with premium hardware.
Supports AMD Ryzen 7000 Processors
The PRO B650-P WIFI motherboard supports AMD Ryzen 7000 processors.
12 Phase VRM with 75A Smart Power Stage
With its dual 8 pin power connectors and exclusive Core Boost technology, the PRO B650-P WIFI is able to sustain heavy CPU power loads (up to 170W) to support system-demanding game settings:
Integrated Cooling Features
VRM Cooling: Features an extended heatsink and 7W/mK thermal pads.
PCB Cooling: Premium 6-layer printed circuit design with 2 oz. thickened copper improves heat dissipation & reliability.
SSD Cooling: M.2 Shield Frozr prevents thermal throttling.
System Cooling: Connect and synchronize cooling with strategically placed pin-headers – including a dedicated pump-fan header.
Gen4 M.2 Connectors
The PRO B650-P WIFI motherboard features MSI’s latest M.2 slots:
2 x Gen4 x4 64Gb/s slots
Fortified PCI-e 4.0 x16 Slots
MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points to support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor also shields the point of contact from electromagnetic interference:
2 x PCI-e 4.0/3.0 x16 slots* (primary with Steel Armor)
*Supports x16/x4
M.2 Shield Frozr
Even the world’s fastest SSDs will automatically slow if thermal throttling firmware detects excessively high temperatures.
M.2 Shield Frozr is MSI’s most advanced thermal solution, offering the best possible protection to ensure maximum SSD transfer speed performance.
4 x DDR5 Dual Channel (6400+ MHz OC)
Memory Boost: A fully-isolated DDR circuit delivers pure data signals for optimal gaming and overclocking performance.
Memory OC profiles in MSI BIOS are MSI OC LAB checked and can be easily enabled with auto power settings for optimized memory speed and stability.
*1DPC 1R Max. overclocking frequency 6400 MHz, supports AMD EXPO.
Wi-Fi 6E & Bluetooth 5.2
2.5G LAN: A Realtek RTL8125BG 2.5Gbps LAN controller delivers a premium network gaming experience.
Wi-Fi 6E: Features an AMD Wi-Fi 6E module (ultra-low latency, high-bandwidth) & Bluetooth 5.2 technology.
USB 3.2 Gen 2×2 Type-C: Connect to devices and transfer files at high bandwidth rates: 20Gb/s.
USB Audio: 7.1-Channel High Performance Audio with Audio Boost 5 & S/PDIF output.

Specifications Of MSI Pro X670-P WiFi

CHIPSET
AMD X670
CPU SUPPORT
Supports AMD Ryzen™ 7000 Series Desktop ProcessorsSocket AM5
MEMORY
4x DDR5, Maximum Memory Capacity 128GBMemory Support DDR5 6600+(OC)/6400(OC)/ 6200(OC)/6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHzMax. overclocking frequency:• 1DPC 1R Max speed up to 6600+ MHz• 1DPC 2R Max speed up to 6000+ MHz• 2DPC 1R Max speed up to 6400+ MHz• 2DPC 2R Max speed up to 4000+ MHzSupports Dual-Channel modeSupports non-ECC, un-buffered memorySupports AMD EXPO
ONBOARD GRAPHICS
1x HDMI™1x DisplayPortSupport HDMITM 2.1 FRL, maximum resolution of 4K 120Hz*1x Display PortSupports DP1.4, maximum resolution of 4K 60Hz*1x Type-C DisplayPortSupports DisplayPort 1.4 with HBR3, maximum resolution of 4K 120Hz**Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
EXPANSION SLOT
3x PCI-E x16 slotSupports x16/x4/x21x PCI-E x1 slotPCI_E1 PCIe 4.0 supports up to x16 (From CPU)PCI_E2 PCIe 3.0 supports up to x1 (From Chipset)PCI_E3 PCIe 4.0 supports up to x4 (From CPU)PCI_E4 PCIe 4.0 supports up to x2 (From Chipset)
STORAGE
4x M.2 slotM.2_1 (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280 devicesM.2_2 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devicesM.2_3 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devicesM.2_4 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices6x SATA 6G port
RAID
Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices*Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices*SATA_A1 & SATA_A2 do not support RAID function.
USB
4x USB 2.0 (Front)4x USB 3.2 Gen1 Type A (Rear)4x USB 3.2 Gen1 Type A (Front)2x USB 3.2 Gen2 Type A (Rear)1x USB 3.2 Gen2 Type C (Rear)1x USB 3.2 Gen2 Type C (Front)1x USB 3.2 Gen2x2 Type C (Rear)
LAN
Realtek® RTL8125BG 2.5G LAN
WIRELESS / BLUETOOTH
AMD Wi-Fi 6EThe Wireless module is pre-installed in the M.2 (Key-E) slotSupports MU-MIMO TX/RXSupports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bandsSupports 802.11 a/ b/ g/ n/ ac/ axSupports Bluetooth® 5.2*** Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 10 build 21H1 and Windows 11.** Bluetooth 5.2 will be ready in Windows 10 build 21H1 and Windows 11.
AUDIO
Realtek® ALC4080 Codec7.1-Channel High Performance AudioSupports S/PDIF outputSupports up to 32-Bit/384 kHz playback on front panel
INTERNAL I/O
1x Power Connector(ATX_PWR)2x Power Connector(CPU_PWR)1x CPU Fan1x Pump Fan6x System Fan2x Front Panel (JFP)1x Chassis Intrusion (JCI)1x Front Audio (JAUD)1x Tuning Controller connector(JDASH)2x Addressable V2 RGB LED connector (JARGB_V2)2x RGB LED connector(JRGB)4x USB 2.04x USB 3.2 Gen1 Type A1x USB 3.2 Gen2 Type C
LED FEATURE
4x EZ Debug LED
BACK PANEL PORTS
DisplayPortUSB 3.2 Gen 2 10Gbps (Type-A)USB 3.2 Gen 1 5Gbps (Type-A)2.5G LANWi-Fi / BluetoothAudio connectorsFlash BIOS ButtonHDMI™USB 3.2 Gen 2 10Gbps (Type-C Display port)USB 3.2 Gen 2×2 20Gbps (Type-C)USB 3.2 Gen 2 10Gbps (Type-A)S/PDIF-OUT
OPERATING SYSTEM
Support for Windows® 11 64-bit, Windows® 10 64-bit
PCB DIMENSION
ATX243.84mmx304.8mm
