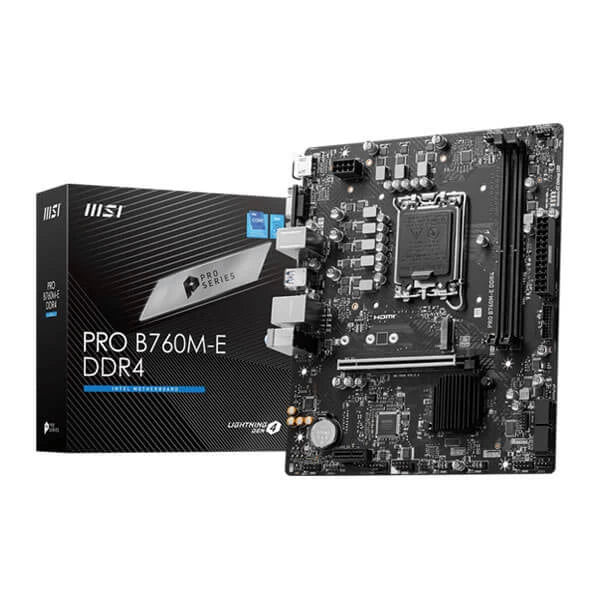

MSI Pro B760M-E DDR4 Intel Motherboard

Product Description

Features Of MSI Pro B760M-E

Supports 12th/13th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1700 socket
MSI Pro B760M-E DDR4 Memory, Dual Channel DDR4 4800+MHz (OC)
Core Boost : With premium layout and digital power design to support more cores and provide better performance
Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility
Lightning Fast Experience: PCIe 4.0, Lightning Gen4 x4 M.2
AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience
Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength
Business Elegance
The PRO B760M-E DDR4 is a business-oriented Micro-ATX motherboard featuring the latest Intel B760 chipset that fulfils business needs.
Supports Intel Core 12th & 13th Gen Processors
The PRO B760M-E DDR4 motherboard supports 12th & 13th Gen Intel Core, Pentium Gold, and Celeron processors.
Form Factor: Micro-ATX
Socket Type: LGA 1700
Chipset: Intel B760
Integrated Cooling Features
Chipset Heatsink: Pro B760M-E Provides passive cooling.
Frozr AI Cooling: Automatically adjusts system fan settings based on CPU & GPU temperatures.
2 x DDR4 Dual Channel (4800 MHz OC)*
Memory Boost: A fully-isolated DDR circuit delivers pure data signals for optimal gaming and overclocking performance.
XMP profiles in MSI BIOS are MSI OC LAB optimized and can be easily enabled with auto power settings for optimized memory speed and stability.
*1DPC 1R Max. overclocking frequency 4800+ MHz, supports Intel XMP.
Fortified PCIe 4.0 x16
MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points to support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor also shields the point of contact from electromagnetic interference:
1 x PCIe 4.0/3.0 x16 slot (with Steel Armor)
1 x PCIe 3.0 x1 slot
Gen4 M.2 Connector
The PRO B760M-E DDR4 motherboard features MSI’s Gen4 M.2 slot:
1 x Gen4 x4 64Gbps slot
Connectivity
1G LAN: A Realtek 1Gbps LAN controller delivers a premium network experience.
USB 3.2 Gen 1 Type-A: Connect to devices and transfer files at high bandwidth rates: 5Gbps.
HD Audio: 7.1-Channel High Definition Audio with Audio Boost.
Diplay Outputs: Include HDMI 1.4 (4K/30Hz) and legacy VGA

Specifications Of MSI Pro B760M-E


Model
PRO B760M-E DDR4
Chipset
INTEL B760
CPU SUPPORT
Supports 12th/13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® ProcessorsLGA 1700
Memory
2x DDR4, Maximum Memory Capacity 64GBMemory Support 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC)Max. overclocking frequency:• 1DPC 1R Max speed up to 4800+ MHz• 1DPC 2R Max speed up to 4600+ MHz
Onboard Graphics
1x HDMI™1x VGASupport HDMI™ 1.4 with HDR, maximum resolution of 4K 30Hz*Support VGA, maximum resolution of 2048×1536 50Hz, 2048×1280 60Hz, 1920×1200 60Hz*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
EXPANSION SLOT
1x PCI-E x16 slot1x PCI-E x1 slotPCI_E1 PCIe 4.0 supports up to (From CPU)PCI_E2 PCIe 3.0 supports up to (From Chipset)
Storage
1x M.2 slotM.2_1 (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices4x SATA 6G port* SATA5 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.
RAID
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
USB
4x USB 2.0 (Rear)4x USB 2.0 (Front)2x USB 3.2 Gen1 Type A (Rear)2x USB 3.2 Gen1 Type A (Front)
LAN
Realtek® RTL8111H Gigabit LAN
Audio
Realtek® ALC897 Codec7.1-Channel High Definition Audio
Internal I/O
1x Power Connector(ATX_PWR)1x Power Connector(CPU_PWR)1x CPU Fan2x System Fan2x Front Panel (JFP)1x Chassis Intrusion (JCI)1x Front Audio (JAUD)1x Com Port (JCOM)1x RGB LED connector(JRGB)1x TPM pin header(Support TPM 2.0)2x USB 2.01x USB 3.2 Gen1 Type A
LED FEATURE
4x EZ Debug LED
BACK PANEL PORTS
HDMIVGAKeyboard / MouseUSB 3.2 Gen 1 5Gbps (Type-A)LAN portAudio ConnectorsUSB 2.0USB 2.0
OPERATING SYSTEM
Support for Windows® 11 64-bit, Windows® 10 64-bit
PCB Dimension
mATX200mmx236.16mm
Warranty
3 Years
Note
*** Features, Price, Specifications are subject to change without notice.
