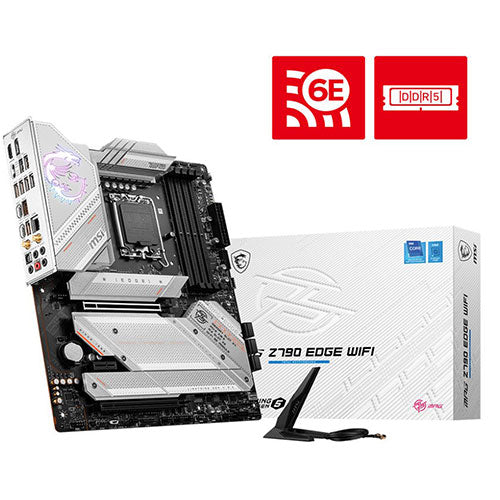

MSI MPG Z790 Edge Wifi DDR5 Intel Motherboard

Product Description

Features of MSI MPG Z790 Edge Wifi DDR5 Intel Motherboard

BE AHEAD, POP YOUR STYLE
The MSI MPG Z790 Edge Wifi DDR5 series brings out fashionable products by showing extremely unique styles and expressing a conceited attitude towards the challenge of the gaming world. With extraordinary performance and style, the MPG series defines the future of gaming fashion.
16 PHASES MIRRORED POWER ARANGEMENT
Unleash and sustain the maximum performance with a flagship VRM design built with a total of 16+1+1 Duet Rail Power System. Combining dual power connectors and 90A Smart Power Stage, MPG Z790 EDGE WIFI is ready for the challenge of high-end processors.
DIY FRIENDLY
The patented design allows you to set your M.2 and Shield Frozr without the annoying screws, provides the easiest way for M.2 installation.
LATEST DDR5 MEMORY WITH SMT SLOT
A huge step of DDR performance enhancement with the latest DDR5 memory. Combines with dedicated SMT welding process and MSI Memory Boost technology, MPG Z790 CARBON WIFI is ready to deliver the world class memory performance.
BIOS & SOFTWARE
MSI brand new MSI Center unifies a suite of MSI software utilities into a single centralized application. Take control of advanced motherboards features and unleash endless possibilities.
GLOW YOUR PC
Splash on some color and vibrant RGB lighting effects using MSI Mystic Light with 16.8 million colors and fancy LED effects. MSI Mystic Light provides you complete control of RGB lighting of your PC in one software.
HIGH-BANDWIDTH AND LOW-LATENCY NETWORK
MSI’s premium network solution provides incredible data transfer speed for demanding users.

Specifications of MSI MPG Z790 Edge Wifi DDR5 Intel Motherboard


Model
Brand
MSI
Model
Z790 EDGE
Supported CPU
CPU Socket Type
LGA1700
CPU Type
13th Gen Intel® Core™ Processors & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
Chipsets
Chipset
INTEL Z790
Memory
Number of Memory Slots
4x DDR5
Memory Standard
Support DDR5 7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory*
Maximum Memory Supported
128 GB
Channel Supported
Dual Channel DDR5 Memory Technology
Expansion Slots
PCI Express x1
1 x PCI Express x1 slot
PCI Express x16
PCI_E1 PCIe 5.0 supports up to x16 (From CPU), PCI_E2 PCIe 3.0 supports up to x1 (From Chipset), PCI_E3 PCIe 4.0 supports up to x4 (From Chipset)
Storage Devices
SATA 3Gb/s
7 x SATA 6Gb/s connectors
Onboard Video
Onboard Video Chipset
N/A
Onboard Audio
Audio Channels
7.1-Channel USB High Performance Audio
Audio Chipset
Realtek ALC4080 Codec
Onboard LAN
LAN Chipset
Intel 2.5Gbps LAN
Rear Panel Ports
USB
USB 3.2 Gen 1 5Gbps Type-A, USB 3.2 Gen 2 10Gbps Type-A, USB 3.2 Gen 2 10Gbps Type-C, USB 3.2 Gen 2×2 20Gbps Type-C
S/PDIF Out
1 x Optical S/PDIF out
Audio Ports
Audio Connectors
Video Ports
1 x DisplayPort and 1 x HDMI
HDMI
1 x HDMI
Onboard USB
Onboard USB
N/A
Onboard 1394
Onboard 1394
N/A
Physical Spec
Form Factor
ATX Form Factor
Power Pin
1x Power Connector(ATX_PWR), 2x Power Connector(CPU_PWR)
Dimensions
243.84 x 304.8 mm
