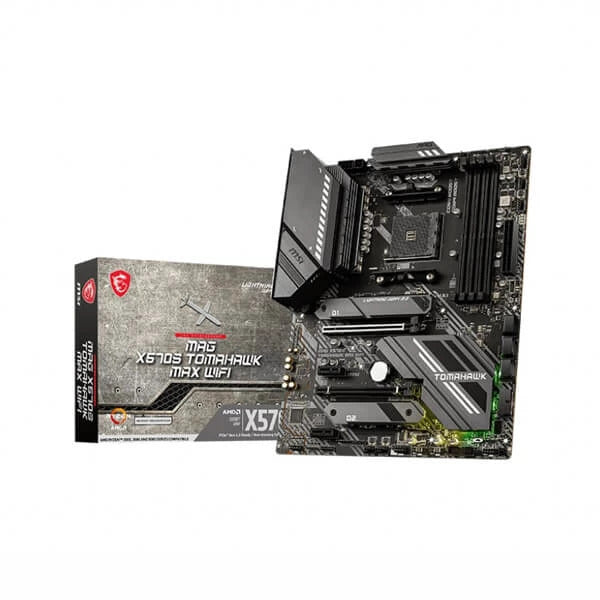

MSI MAG X570S Tomahawk Max Wifi DDR4 AMD Motherboard

Product Description

Feature of MSI MAG X570S Tomahawk Max WiFi

MAG X570S TOMAHAWK MAX WIFI
2.5Gbps LAN provides incredible data transfer speed faster than general Gigabit LAN. This is a premium solution for demanding users.
HIGH-BANDWIDTH AND LOW-LATENCY NETWORK
MSI MAG X570S Tomahawk Max motherboards are built with a variety of connectors to satisfy gamers.Enhanced audio,advanced LAN networking capabalities,USB and Mystic Light turn any gaming experience into an immerse one.
CONNECTIVITY
Utilizing AMD Ryzen 5000 series processors, MSI X570S motherboards feature latest Lightning Gen 4 M.2 which is the fastest onboard storage solution on the market with up to 64 Gb/s transfer speed.
LIGHTNING GEN 4 M.2
High performance MSI motherboards are loaded with advanced features and the latest technology to overwhelm any challenge at hand no matter whether you’re a gamer, prosumer, or PC enthusiast.
ENHANCED PERFORMANCE
With more cores’ processors, thermal and power design is more important to make sure the temperature keeps lower. MSI extended PWM heatsink and enhanced circuit design ensures even high-end AMD CPU to run in full speed with MSI motherboards.
THERMAL SOLUTION FOR MORE CORES AND HIGHER PERFORMANCE
Supports AMD Ryzen™ 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series, 3000 G-Series, 2000 Series and 2000 G-Series desktop processors
Supports DDR4 Memory, up to 5100(OC) MHz
Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works
2.5G LAN and Intel Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
Lightning M.2: Running at PCIe Gen4 x4 maximizes performance for NVMe based SSDs
AUDIO BOOST 5: Reward your ears with studio grade sound quality for the most immersive gaming experience
Multi-GPU: With Steel armor PCIe slots. Supports 2-Way AMD Crossfire™

Specifications of MSI MAG X570S Tomahawk Max WiFi


Processor
Supports AMD Ryzen™ 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series, 3000 G-Series, 2000 Series and 2000 G-Series desktop processors1Supports Socket AM4
Chipset
AMD X570 Chipset
Memory
4x DDR4 memory slots, support up to 128GBSupports 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC1Max overclocking frequency by A-XMP OC mode:For Ryzen™ 5000 G-Series & 4000 G-Series processors1DPC 1R Max speed up to 5100 MHz1DPC 2R Max speed up to 4000 MHz2DPC 1R Max speed up to 4266 MHz2DPC 2R Max speed up to 3600 MHzFor Ryzen™ 5000 Series & 3000 Series processors1DPC 1R Max speed up to 5100 MHz1DPC 2R Max speed up to 3866 MHz2DPC 1R Max speed up to 4000 MHz2DPC 2R Max speed up to 3600 MHzSupports Dual-Channel modeSupports non-ECC, un-buffered memory
Expansion Slot
Supports PCIe 4.0 / PCIe 3.0 specificationPCIe 4.0 is available only on AMD Ryzen™ 5000 Series and 3000 Series desktop processors1x PCIe x16 slot (From processor)PCI_E1 supports PCIe 4.0/ 3.0 x161x PCIe x16 slot (From X570 chipset)PCI_E3 supports PCIe 4.0/ 3.0 x42x PCIe 3.0 x1 slots (From X570 chipset)
Multi-GPU
Supports AMD CrossFire™ Technology
Onboard Graphics
1x HDMI 2.1 port, supports a maximum resolution of 4K 60Hz 1 2Available only on processors featuring integrated graphics.Graphics specifications may vary depending on the CPU installed.
Storage
6x SATA 6Gb/s ports (from AMD X570 Chipset)2x M.2 slots (Key M)Support up to PCIe 4.0 for AMD Ryzen™ 5000 Series and 3000 Series desktop processorsSupport up to PCIe 3.0 for AMD Ryzen™ 5000 G-Series, 4000 G-Series, 3000 G-Series, 2000 Series and 2000 G-Series desktop processorSupports up to SATA 6Gb/sM2_1 slot (from Processor)Support 2280/22110 storage devicesM2_2 slot (from AMD X570 Chipset)Supports 2242/ 2260/ 2280 storage devices
RAID
Supports RAID 0, RAID 1 and RAID 10
USB
AMD X570 Chipset3x USB 3.2 Gen 2 10Gbps ports (2 Type-A ports on the back panel, 1 Type-C internal connector)4x USB 3.2 Gen 1 5Gbps ports available through the internal USB 3.2 Gen 1 5Gbps connectors6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 2.0 connectors)AMD Processor2x USB 3.2 Gen 2 10Gbps ports on the back panel (Type-A & Type-C)2x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel
Audio
Realtek® ALC4080 Codec7.1-Channel High Definition AudioSupports S/PDIF output
LAN
1x Realtek® 8125B 2.5Gbps LAN Controller
Wireless LAN & Bluetooth
Intel® Wi-Fi 6E AX210The Wireless module is pre-installed in the M.2 (Key-E) slotSupports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz 1 (160MHz) up to 2.4GbpsSupports 802.11 a/ b/ g/ n/ ac/ axSupports Bluetooth® 5.22, FIPS, FISMAWi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in WIN10 21H1.Bluetooth 5.2 will be ready in WIN10 21H1.
Internal connectors
1x 24-pin ATX main power connector1x 8-pin ATX 12V power connector1x 4-pin ATX 12V power connector6x SATA 6Gb/s connectors2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)2x USB 3.2 Gen 1 5Gbps connectors (supports additional 4 USB 3.2 Gen 1 5Gbps ports)1x USB 3.2 Gen 2 10Gbps Type-C port1x 4-pin CPU fan connector1x 4-pin water-pump connector 4x 4-pin system fan connectors1x Front panel audio connector2x System panel connectors1x Chassis Intrusion connector1x TPM module connector1x Serial port connector1x Chassis Intrusion connector
LED Feature
2x 4-pin RGB LED connectors2x 3-pin RAINBOW LED connectors4x EZ Debug LED1X EZ LED Control switch
Back panel ports
PS/2 Mouse / KeyboardWi-Fi AntennaUSB 3.2 Gen 1 5Gbps (Type-A)USB 3.2 Gen 2 10Gbps (Type-A)2.5G LAN PortHD Audio ConnectorsFlash BIOS ButtonUSB 2.0 PortHDMI 2.1 PortUSB 3.2 Gen 2 10Gbps (Type-C)USB 3.2 Gen 2 10Gbps (Type-A)Optical S/PDIF OUT
Dimensions
ATX Form Factor12 in. x 9.6 in. (30.5 cm x 24.4 cm)
Operating System
Support for Windows® 10 64-bit
Warranty
3 Years
Note
***Features, Price and Specifications are subject to change without notice.
