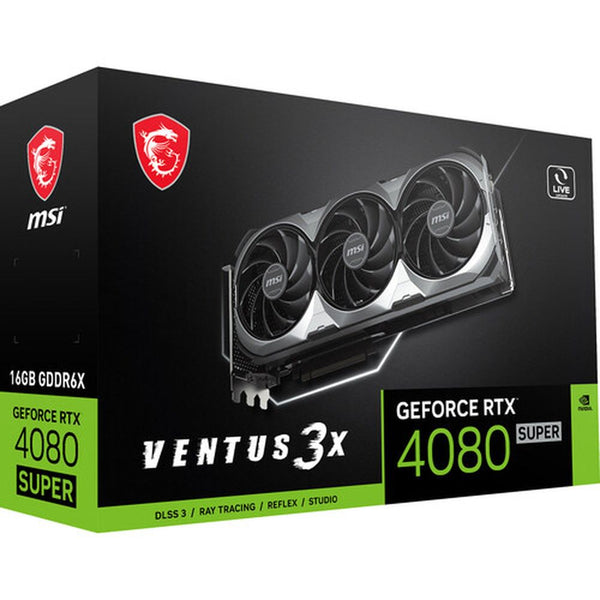

MSI GeForce RTX 4080 Super Ventus 3X 16GB Nvidia Graphic Card

Product Description

Features of MSI GeForce RTX 4080 Super Ventus 3X 16GB
TAKE THE ESSENTIALS
MSI GeForce RTX 4080 Super Ventus 3X 16GB brings a fundamentally solid experience to users looking for a performance graphics card. A sharp-looking updated design with TORX FAN 4.0 and Airflow Control lets VENTUS breeze through any task.
REVOLUTIONARYTRIPLE-FAN THERMAL
Three fans on a huge heatsink ensures a cool and quiet experience.
COPPER BASEPLATE
Heat from the GPU and memory modules is immediately captured by a solid nickel-plated copper baseplate and then rapidly transferred to an array of heat pipes. This widening of the thermal transfer systems with highly efficient mechanisms improves overall efficiency.
COREPIPE
Core Pipes are precision-crafted to make maximum use of the available space. A squared section of heat pipes fully touch the GPU baseplate to then spread heat along the full length of the heatsink.
AIRFLOW CONTROL
Stay stealthy with Airflow Control which improves airflow dynamics. Deflectors provide additional surface area and guide air to where it’s needed for maximum cooling.
COREPIPE
Core Pipes are precision-crafted to make maximum use of the available space. A squared section of heat pipes fully touch the GPU baseplate to then spread heat along the full length of the heatsink.
TORX FAN 4.0
TORX FAN 4.0 is built on teamwork, with pairs of fan blades bound together with a linked outer ring design that focuses airflow into the Triple-Fan cooling system.
DrMos
DrMOS power stage solutions provide great efficiency with low power loss and enhanced voltage controls.
2 Oz Copper
A thickened copper layer inside the PCB increases conductivity which improves heat dissipation and reliability.
Fuse
Additional fuses built into the custom PCB provide additional safeguards against electrical damage.
Sheet-Metal Anti-Bending
A sheet-metal anti-bending plate reinforces the whole card while thermal pads allow cooling to reach critical component underneath.
Support Bracket
A bundled support bracket can be attached to your PC case for additional graphics card reinforcement.

Specifications of MSI GeForce RTX 4080 Super Ventus 3X 16GB Nvidia Graphic Card


MODEL NAME
GeForce RTX™ 4080 SUPER 16G VENTUS 3X
GRAPHICS PROCESSING UNIT
NVIDIA® GeForce RTX™ 4080 SUPER
INTERFACE
PCI Express® Gen 4
CORE CLOCKS
Extreme Performance: 2565 MHz (MSI Center) Boost: 2550 MHz
CUDA® CORES
10240 Units
MEMORY SPEED
23 Gbps
MEMORY
16GB GDDR6X
MEMORY BUS
256-bit
OUTPUT
DisplayPort x 3 (v1.4a) HDMI™ x 1 (Supports 4K@120Hz HDR, 8K@60Hz HDR, and Variable Refresh Rate as specified in HDMI™ 2.1a)
HDCP SUPPORT
Y
POWER CONSUMPTION
320 W
POWER CONNECTORS
16-pin x 1
RECOMMENDED PSU
850 W (Min.750 W)
CARD DIMENSION (MM)
322 x 136 x 62 mm
WEIGHT (CARD / PACKAGE)
1543 g / 2147 g
DIRECTX VERSION SUPPORT
12 Ultimate
OPENGL VERSION SUPPORT
4.6
MAXIMUM DISPLAYS
4
G-SYNC® TECHNOLOGY
Y
DIGITAL MAXIMUM RESOLUTION
7680 x 4320
