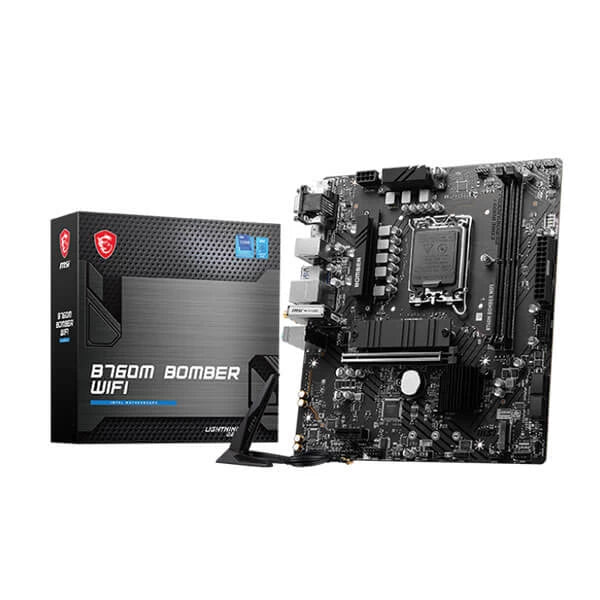

MSI B760M Bomber WIFI DDR5 Intel Motherboard

Product Description

Features Of MSI B760M Bomber WIFI DDR5

MSI B760M Bomber WIFI DDR5 Supports 12th/13th Gen Intel Core, Pentium® Gold and Celeron® processors for LGA 1700 socket
Supports DDR5 Memory, Dual Channel DDR5-6400+MHz (OC)
Core Boost : With premium layout and digital power design to support more cores and provide better performance
Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility
Lightning Fast Experience: PCIe 4.0, Lightning Gen4 x4 M.2 with M.2 Shield Frozr
2.5G LAN with Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience
Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength.

Specifications Of MSI B760M Bomber WIFI DDR5


Model
B760M BOMBER WIFI
Chipset
INTEL B760
CPU SUPPORT
Supports 12th/13th Gen Intel Core Processors, Pentium Gold and Celeron Processors LGA 1700
Memory
2x DDR5, Maximum Memory Capacity 96GB MemoryDDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC)Max. overclocking frequency:1DPC 1R Max speed up to 6400+ MHz1DPC 2R Max speed up to 5600+ MHz
Onboard Graphics
1x HDMI™Support HDMI™ 2.1 with HDR, maximum resolution of 4K 60Hz1x DisplayPortSupport DP 1.4, maximum resolution of 4K 60Hz1x D-SubSupport VGA, maximum resolution of 2048×1536 50Hz, 2048×1280 60Hz, 1920×1200 60Hz
EXPANSION SLOT
1x PCI-E x161x PCI-E x1PCI_E1 Gen PCIe 4.0 supports up to (From CPU)PCI_E2 Gen PCIe 4.0 supports up to (From Chipset)
Storage
2x M.2 (Qty)M.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devicesM.2_2 (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices4x SATA 6G (Qty)* SATA7 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.
RAID
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
USB
2x USB 2.04x USB 2.04x USB 3.2 Gen1 Type A2x USB 3.2 Gen1 Type A
LAN
Realtek RTL8125B 2.5Gbps LAN
WIRELESS / BLUETOOTH
Intel Wi-Fi 6EThe Wireless module is pre-installed in the M.2 (Key-E) slotSupports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz (160MHz) up to 2.4GbpsSupports 802.11 a/ b/ g/ n/ ac/ axSupports Bluetooth 5.3, FIPS, FISMA
Audio
Realtek ALC897 Codec7.1-Channel High Definition Audio
Internal I/O
1x Power Connector(ATX_PWR)1x Power Connector(CPU_PWR)1x CPU Fan2x System Fan2x Front Panel (JFP)1x Chassis Intrusion (JCI)1x Front Audio (JAUD)1x Com Port (JCOM)2x Addressable V2 RGB LED connector (JARGB_V2)1x RGB LED connector(JRGB)1x TPM pin header(Support TPM 2.0)4x USB 2.02x USB 3.2 Gen1 Type A
LED FEATURE
4x EZ Debug LED
BACK PANEL PORTS
HDMI™VGADisplayPortKeyboard / Mouse2.5G LANWi-Fi / BluetoothAudio ConnectorsUSB 2.0USB 3.2 Gen 1 5Gbps (Type-A)
OPERATING SYSTEM
Support for Windows 11 64-bit, Windows 10 64-bit
PCB Dimension (W × L)
mATX220mmx243.84mm
Warranty
3 Years
Note
*** Features, Price, Specifications are subject to change without notice.
