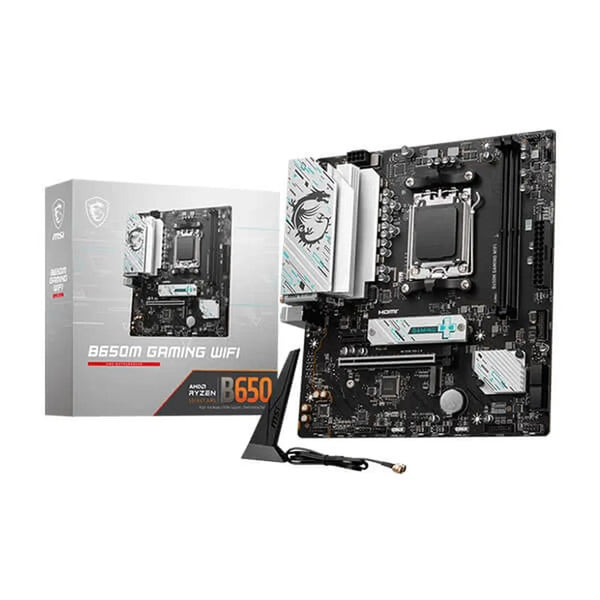

MSI B650M Gaming WIFI DDR5 Motherboard

Product Description

Features Of MSI B650M Gaming WIFI
Ryzen 7000 READY, HIGH PERFORMANCE – The B650M GAMING WIFI (mATX) outfitted with AMD B650 chipset (AM5, Ryzen 7000 ready); The VRM features MSI Core Boost technology for enhanced CPU performance & stability
INTEGRATED COOLING – VRM cooling features 7W/mK MOSFET thermal pads and an extended heatsink; Includes chipset heatsink, M.2 Shield Frozr, a dedicated pump-fan cooling header & 6-layer PCB with 2 oz. thickened copper
DDR5 MEMORY, PCIe 4.0 x16 SLOT – 2 x DDR5 DIMM slots with Memory Boost isolated circuitry for overclocking (1DPC 1R, 7800+ MHz); Primary PCIe x16 slot supports PCIe 4.0 (64Gbps) and includes Steel Armor, secondary PCIe x1 slot supports PCIe 3.0
DUAL M.2 CONNECTORS – Storage options include 2 x M.2 Gen4 64Gbps slots to prevent thermal throttling during hyper-fast SSD access
WI-FI 6E CONNECTIVITY – Network hardware includes an AMD Wi-Fi 6E module with Bluetooth 5.3 & 2.5Gbps LAN; Rear ports include USB 3.2 Gen 1 Type-C (5Gbps), HDMI 2.1, DisplayPort 1.4, and 7.1 HD Audio with Audio Boost
Extended Heatsink
Extended Heatsink enlarges the surface of heat dissipation, ensuring even high- end processors to run in full speed.
M.2 Shield Frozr
Keeps M.2 SSDs safe while preventing throttling, making them run faster.
7W/mK Thermal Pad & Additional Choke Pad
High quality 7W/mK MOSFET thermal pads and extra choke thermal pads ensure all cores running in high performcance.
LIGHTNING GEN 4 PCI-E
MSI lightning Gen 4 PCI-E represents the bandwidth of a x16 interface to 64GB/s that has doubled compared to its previous generation
REINFORCED, HEAVY SOLDERED CONNECTIONS
MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points and support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor shields the point of contact from electromagnetic interference.
THE ISOLATED ANALOGY STRUCTURE FOR AUDIO CONNECTORS
To provide clear voice, MSI develops a unique structure – Isolated Analogy Structure. The external metal framework of the audio connectors is separated from the internal layout, which ensures the sound quality crisp.
EXTEND YOUR RGB EXPERIENCE WITH EASE
Add more color if you want! Mystic Light Extension pin header provides an intuitive way to control additional RGB strips and other RGB peripherals added to a system, without needing a separate RGB controller.
HIGH-BANDWIDTH AND LOW-LATENCY NETWORK
MSI’s premium network solution provides incredible data transfer speed for demanding users.
MSI B650M Gaming Wifi Supports AMD Ryzen™ 8000 / 7000 Series Desktop Processors
Supports DDR5 Memory, up to 7800+(OC) MHz
Core Boost : With premium layout and digital power design to support more cores and provide better performance
Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility
Lightning Fast Game experience: PCIe 4.0 slot, Lightning Gen4 M.2
Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength
AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience
High Quality PCB: 6-layer PCB made by 2oz thickened copper
Specification Of MSI B650M Gaming WIFI


Model
B650M GAMING WIFI
Chipset
AMD B650
CPU
Supports AMD Ryzen™ 8000/ 7000 Series Desktop ProcessorsSocket AM5
Memory
2x DDR5, Maximum Memory Capacity 96GBMemory Support DDR5 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHzMax. overclocking frequency:• 1DPC 1R Max speed up to 7800+ MHz• 1DPC 2R Max speed up to 6400+ MHzSupports Dual-Channel modeSupports non-ECC, un-buffered memorySupports AMD EXPO™
Onboard Graphics
1x HDMI™Support HDMI™ 2.1, maximum resolution of 4K 60Hz*1x DisplayPortSupport DP 1.4, maximum resolution of 4K 60Hz**Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Slot
1x PCI-E x16 slotSupports x16/x1• Supports x16 (For Ryzen™ 7000 Series processors)• Supports x8 (For Ryzen™ 7 8700G and Ryzen™ 5 8600G processors)• Supports x4 (For Ryzen™ 5 8500G processor)1x PCI-E x1 slotPCI_E1 Gen PCIe 3.0 supports up to x1 (From Chipset)PCI_E2 Gen PCIe 4.0 supports up to x16 (From CPU)
Storage
2x M.2M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280 devicesM.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280 devices4x SATA 6G• M2_2 supports PCIe 4.0 x2 speed when Ryzen™ 5 8500G is installed
RAID
Supports RAID 0, RAID 1, and RAID 10 for SATA storage devicesSupports RAID 0, RAID 1, and RAID 10 for M.2 NVMe storage devices
USB
2x USB 2.0 (Rear)4x USB 2.0 (Front)3x USB 3.2 Gen1 Type A (Rear)1x USB 3.2 Gen1 Type C (Rear)4x USB 3.2 Gen1 Type A (Front)
LAN
Realtek® RTL8125BG 2.5Gbps LAN
WIRELESS LAN & BLUETOOTH
AMD Wi-Fi 6EThe Wireless module is pre-installed in the M.2 (Key-E) slotSupports MU-MIMO TX/RXSupports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bandsSupports 802.11 a/ b/ g/ n/ ac/ axSupports Bluetooth® 5.3*** Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11.** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.
Audio
Realtek® ALC897 Codec7.1-Channel High Definition Audio
Internal IO
1x Power Connector(ATX_PWR)1x Power Connector(CPU_PWR)1x Front Type-C Quick Charge Connector(PD_PWR1)1x CPU Fan3x System Fan2x Front Panel (JFP)1x Chassis Intrusion (JCI)1x Front Audio (JAUD)2x Addressable V2 RGB LED connector (JARGB_V2)1x RGB LED connector(JRGB)1x TPM pin header(Support TPM 2.0)4x USB 2.0 ports4x USB 3.2 Gen1 Type A ports
LED FEATURE
4x EZ Debug LED
BACK PANEL PORTS
DisplayPortHDMI™USB 3.2 Gen 1 5Gbps (Type-A)2.5G LANWi-Fi / BluetoothAudio connectorsFlash BIOS ButtonUSB 3.2 Gen 1 5Gbps (Type-C)USB 3.2 Gen 1 5Gbps (Type-A)USB 2.0
OPERATING SYSTEM
Support for Windows® 11 64-bit, Windows® 10 64-bit
PCB Info
mATX226mmx243.84mm
Warranty
3 Years
Note
*** Features, Price, Specifications are subject to change without notice.
