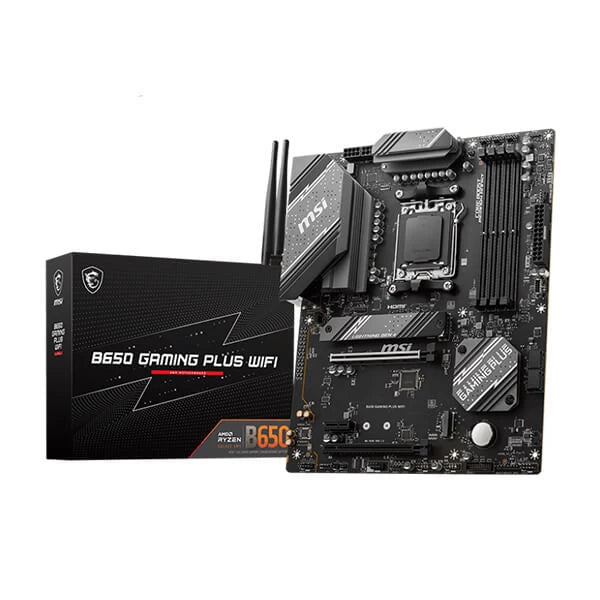

MSI B650 Gaming Plus WIFI DDR5 Motherboard

Product Description

Features Of MSI B650 Gaming Plus WIFI
MSI Supports AMD Ryzen™ 8000 / 7000 Series Desktop Processors
Supports DDR5 Memory, Dual Channel DDR5 7200+MHz (OC)
Enhanced Power Design: 12+2+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost
Premium Thermal Solution: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop work
Lightning Fast Game experience: PCIe 4.0 slots, Lightning Gen 4 x4 M.2 with M.2 Shield Frozr, USB 3.2 Gen 2×2 20G
2.5G LAN with Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
High Quality PCB: 6-layer PCB made by 2oz thickened copper
Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience
DIY Friendly
PCI-E Steel Armor reinforces the expansions slots with metal plating and extra solder points, giving it the rigidity to handle heavy graphics cards. The EZ DEBUG LED and Flash BIOS Button help to streamline your troubleshooting process.
Expansion Slots
Two PCIe 4.0 x16 slots are available, with the first capable of supporting powerful graphics cards while the second one operates in x4 mode. The PCIe 3.0 x1 slot is ideal for network and port expansion cards.
Thermal Enhancements
This motherboard is designed to avoid heat throttling with a variety of features such as an extended heat sink and a 7W/mK MOSFET thermal pad. M.2 Shield Frozr covers help to ensure optimal SSD performance during heavy sustained workloads. CPU and liquid cooling pump headers are available for your choice of cooling system.
USB Connectivity
The rear panel includes a USB-C 3.2 Gen 2×2 port that can transfer up to 20 Gb/s with compatible devices while the two USB-A 3.2 Gen 2 ports support up to 10 Gb/s. There are also four 5 Gb/s USB-A 3.2 Gen 1 ports.
Front panel headers include support for two USB-A 3.2 Gen 1, one USB-C 3.2 Gen 2, and four USB-A 2.0 ports.
Graphics Ports
Both the HDMI 2.1 and DisplayPort 1.4 outputs support up to 4K, 60 Hz HDR monitors when using CPUs with integrated graphics.
Specifications Of MSI B650 Gaming Plus WIFI


Model
B650 GAMING PLUS WIFI
Chipset
AMD B650
CPU SUPPORT
Supports AMD Ryzen™ 7000 Series Desktop ProcessorsSocket AM5
Memory
4x DDR5, Maximum Memory Capacity 192GBMemory Support DDR5 6000+(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHzMax. overclocking frequency:• 1DPC 1R Max speed up to 6000+ MHz• 1DPC 2R Max speed up to 6000+ MHz• 2DPC 1R Max speed up to 6000+ MHz• 2DPC 2R Max speed up to 5400+ MHzSupports Dual-Channel modeSupports non-ECC, un-buffered memorySupports AMD EXPO
Onboard Graphics
1x HDMI™Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz1x DisplayPortSupports DP1.4, maximum resolution of 4K 60Hz
EXPANSION SLOT
2x PCI-E x16 slot1x PCI-E x1 slotPCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
Multi-GPU
AMD MULTI-GPU Support
Storage
2x M.2M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280 devicesM.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices4x SATA 6G
RAID
Supports RAID 0, RAID 1 and RAID 1 for SATA storage devicesSupports RAID 0 and RAID 1 for M.2 NVMe storage devices
USB
4x USB 2.0 (Front)4x USB 3.2 Gen1 Type A (Rear)2x USB 3.2 Gen1 Type A (Front)3x USB 3.2 Gen2 Type A (Rear)1x USB 3.2 Gen2 Type C (Front)1x USB 3.2 Gen2x2 Type C (Rear)
LAN
Realtek® 8125BG 2.5G LAN
WIRELESS / BLUETOOTH
AMD Wi-Fi 6EThe Wireless module is pre-installed in the M.2 (Key-E) slotSupports MU-MIMO TX/RXSupports 20MHz, 40MHz, 80MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bandsSupports 802.11 a/ b/ g/ n/ ac/ axSupports Bluetooth® 5.3
Audio
Realtek® ALC897 Codec7.1-Channel High Definition Audio
Internal I/O
1x Power Connector(ATX_PWR)2x Power Connector(CPU_PWR)1x CPU Fan1x Pump Fan4x System Fan2x Front Panel (JFP)1x Chassis Intrusion (JCI)1x Front Audio (JAUD)1x Com Port (JCOM)1x Tuning Controller connector(JDASH)2x Addressable V2 RGB LED connector (JARGB_V2)2x RGB LED connector(JRGB)1x TPM pin header(Support TPM 2.0)4x USB 2.0 ports2x USB 3.2 Gen1 Type A ports1x USB 3.2 Gen2 Type C ports
LED FEATURE
4x EZ Debug LED
BACK PANEL PORTS
DisplayPort2.5G LANUSB 3.2 Gen 2 10Gbps (Type-A)USB 3.2 Gen 1 5Gbps (Type-A)Wi-Fi / BluetoothAudio connectorsFlash BIOS ButtonHDMI™USB 3.2 Gen 2 10Gbps (Type-A)USB 3.2 Gen 2×2 20Gbps (Type-C)
OPERATING SYSTEM
Support for Windows® 11 64-bit, Windows® 10 64-bit
PCB Dimension (W × L)
ATX243.84mmx304.8mm
Warranty
3 Years
Note
*** Features, Price, Specifications are subject to change without notice.
