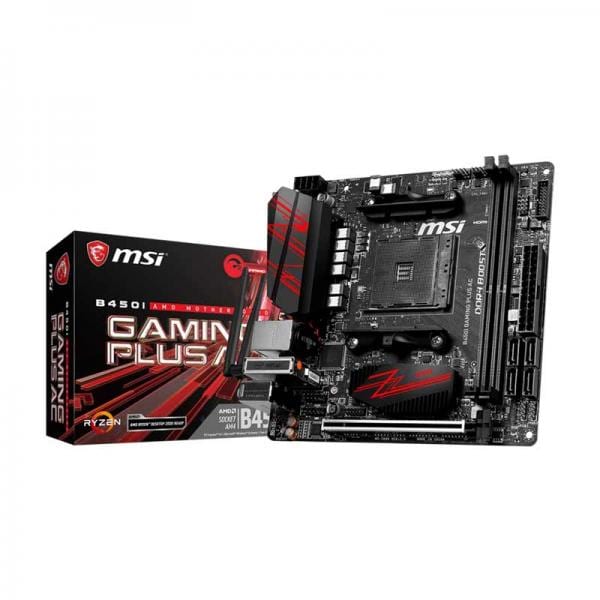

MSI B450I Gaming Plus Ac WiFi Motherboard

Product Description

Features Of MSI B450I Gaming Plus Ac WiFi

Supports AMD® Ryzen 1st and 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors for Socket AM4
MSI B450I Gaming Plus Ac Wifi DDR4-3466(OC) Memory
Lightning Fast Game experience: TURBO M.2, Store MI
Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience
Core Boost: With premium layout and digital power design to support more cores and provide better performance.
DDR4 Boost: Give your DDR4 memory a performance boost with A-XMP
Intel® Wireless support: delivers AC speeds up to 433Mbps with lower CPU loading and better long-term usage.
VR Ready: Automatically optimizes your system for VR usage, pushing for maximum performance.
In-Game Weapons: Game Boost, GAMING Hotkey, X-Boost
EZ Debug LED: Easiest way to troubleshoot
GAMING CERTIFIED: 24-hour on and offline game and motherboard testing by eSports players
STAY COOL WHILE GAMING
Cooling your PC is essential for reliable performance. We’ve made sure to include enough fan headers with full control to allow you to cool your system any way you want.
DESIGNED FOR LIMITLESS TUNING
B450I Gaming Plus AC has Founded on experience and with a long history of creating the best performing motherboards packed with smart features, you can count on this motherboard to deliver the best performance under the most extreme conditions. Countless system tuning and troubleshooting tools are at your disposal to push your system to new heights and satisfy even the most demanding tweaker.
YOUR IN-GAME ADVANTAGE
B450I Gaming Plus AC can Outsmart and outperform your opponents in-game using an array of unique MSI GAMING tools. Clever hardware & software tools, created to keep you one step ahead of the competition and boost your skills.
UNMATCHED MEMORY PERFORMANCE
B450I Gaming Plus AC motherboards are crammed with features to fuel your gaming rig’s memory with more speed, higher overclockability and increased stability.
MAXIMIZE YOUR USB DEVICE PERFORMANCE
Transfer your favorite games, music and movies over USB faster than ever. MSI offers a wide variety of options to connect and boost your USB 3.1 devices, delivering transfer speeds up to 5Gb/s!
SOUND THAT PULLS YOU INTO THE GAME
Get the most immersive sound experience when gaming in B450I Gaming Plus AC. MSI Audio Boost delivers the highest sound quality through the use of premium quality audio components. This lets you enjoy breathtaking, game-changing sound to create the most exciting gameplay.
BE THE FIRST ON THE BATTLEFIELD
This MSI GAMING motherboard supports all the latest storage standards. This allows you to connect any ultra-fast storage device, giving you in-game benefits. Start games faster, load levels faster and have a real advantage over your enemies.
DOMINATE THE GAME WITH THE LOWEST LATENCY
Get ready to crush your enemies on the battlefield with MSI GAMING LAN. Featuring the highest quality components tuned to deliver the best online gaming experience without lag.
APPS TO GREATLY IMPROVE EFFICIENCY
With years of experience in creating performance enhancing tools that are easy to use, only the highest quality applications are at your disposal. Use these tools to get the most out of your motherboard and achieve victory when gaming.

Specifications Of MSI B450I Gaming Plus Ac WiFi


PROCESSOR
Supports AMD® Ryzen 1st and 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors for Socket AM4
CHIPSET
AMD® B450 Chipset
MEMORY
2 x DDR4 memory slots, support up to 32GBSupports 1866/ 2133/ 2400/ 2667Mhz (by JEDEC)Supports 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466 MHz (by A-XMP OC MODE)Dual channel memory architectureSupports non-ECC UDIMM memorySupports ECC UDIMM memory (non-ECC mode)
SLOTS
1 x PCIe 3.0 x16 slotSupports x16 speed with AMD® Ryzen™ 1st and 2nd Generation processorsSupports x8 speed with AMD® Ryzen™ with Radeon Vega Graphics processorsSupports x4 speed with AMD® Athlon™ with Radeon™ Vega Graphics Processors
STORAGE
AMD® CPU1 x M.2 ports (M2_1, Key M)Supports PCIe 3.0 x4 (AMD® Ryzen 1st and 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics) or PCIe 3.0 x2 (AMD® Athlon™ with Radeon™ Vega Graphics) and SATA 6Gb/s 2280 storageAMD® B450 Chipset4 x SATA 6Gb/s ports
RAID
AMD® B450 ChipsetSupports RAID 0, RAID 1 and RAID 10 for SATA storage devices
ONBOARD GRAPHICS
1 x DisplayPort, support a maximum resolution of 4096×2304 @60Hz, 2560×1600 @60Hz, 3840×2160 @60Hz,1920×1200 @60Hz1,21 x HDMI™ 1.4 port, supports a maximum resolution of 4096×2160 @30Hz, 2560×1600 @60Hz1,2Only support when using AMD® Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics ProcessorsMaximum shared memory of 2048 MB
USB
AMD® B450 Chipset2 x USB 3.1 Gen1 (SuperSpeed USB 5Gbps) Type-A ports on the back panel4 x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 2 ports available through the internal USB 2.0 connector)AMD® CPU4x USB 3.1 Gen1 (SuperSpeed USB) ports (2 Type-A ports on the back panel, 2 ports available through the internal USB 3.1 Gen1 connector)
AUDIO
Realtek® ALC887 Codec7.1-Channel High Definition Audio
LAN
1 x Realtek® 8111H Gigabit LAN controller
WIFI & BLUETOOTH
Intel® Dual Band Wireless-AC 3168 moduleThe Wireless module is pre-install in the M2_2 (Key E) slot.Supports Wi-Fi 1×1 802.11ac, dual band (2.4GHz,5GHz) up to 433 Mbps speed.Supports Bluetooth® 4.2, 4.1, BLE, 4.0, 3.0, 2.1, 2.1 EDR
INTERNAL CONNECTORS
1 x 24-pin ATX main power connector1 x 8-pin ATX 12V power connector4 x SATA 6Gb/s connectors1 x USB 2.0 connector (support additional 2 USB 2.0 ports)1 x USB 3.1 Gen1 connectors (support additional 2 USB 3.1 Gen1 ports)1 x 4-pin CPU fan connector1 x 4-pin system fan connector1 x Front panel audio connector2 x System panel connectors1 x Chassis Intrusion connector1 x Clear CMOS jumper2 x 5050 RGB LED strip 12V connectors
BACK PANEL PORTS
USB 2.0DisplayPortLANWi-Fi / BluetoothHD Audio ConnectorsPS/2 Combo Port, HDMIHDMIUSB 3.1 Gen1USB 3.1 Gen1
DIMENSIONS
6.7 in. x 6.7 in. (17.0 cm x 17.0 cm)Mini-ITX Form Factor
MOUNTING
4 mounting holes
OPERATING SYSTEM
Support for Windows® 10 64-bitSupport for Windows® 7 64-bit*To support Windows® 7 64-bit, you must install an AMD Pinnacle Ridge & Summit Ridge CPU.
Warranty
3 Years
Note
***Features, Price and Specifications are subject to change without notice.
