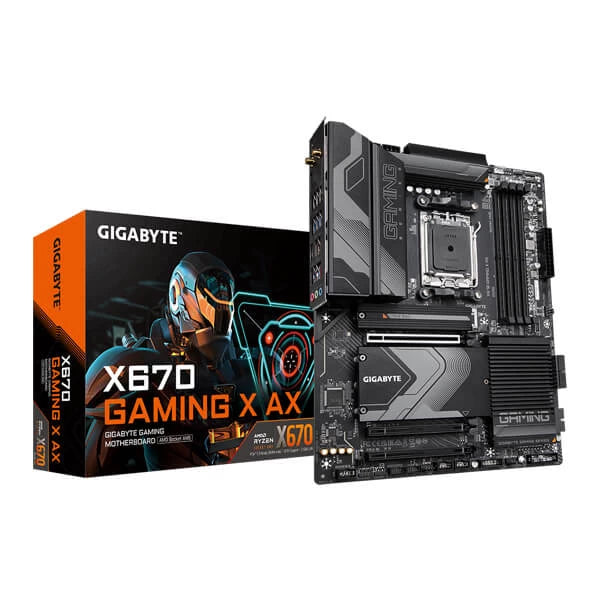

GIGABYTE X670 Gaming X AX Wifi DDR5 AMD Motherboard

Product Description

Features of GIGABYTE X670 Gaming X AX Wifi DDR5 AMD Motherboard

AMD Socket AM5：Supports AMD Ryzen™ 7000 Series Processors
Unparalleled Performance：Twin 16+2+2 Phases Digital VRM Solution
Dual Channel DDR5：4SMD DIMMs with AMD EXPO™ & Intel® XMP Memory Module Support with GIGABYTE X670 Gaming X AX Wifi
Next Generation Storage：1PCIe 5.0 x4 and 3*PCIe 4.0 x4 M.2 Connectors
Mega-Heatpipe & M.2 Thermal Guard：To Ensure VRM Power Stability & 25110 PCIe 5.0 M.2 SSD Performance
EZ-Latch：PCIe x16 Slot & M.2 Connectors with Quick Release & Screwless Design
Fast Networks：2.5GbE LAN & Wi-Fi 6E 802.11ax
Extended Connectivity：HDMI, Dual USB-C® 20Gbps and Upcoming GIGABYTE USB4 AIC Support
Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card

Specifications of GIGABYTE X670 Gaming X AX Wifi DDR5 AMD Motherboard


CPU
AMD Socket AM5, support for: AMD Ryzen™ 7000 Series Processors
Chipset
AMD X670
Memory
Support for DDR5 6400(OC)/6200(OC)/6000(OC)/5600(OC)/5200/4800/4400 MT/s memory modules4 x DDR5 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memoryDual channel memory architectureSupport for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modulesSupport for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules
Onboard Graphics
Integrated Graphics Processor:1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz* Support for HDMI 2.1 version and HDCP 2.3.** Support native HDMI 2.1 TMDS compatible ports.
Audio
Realtek® Audio CODECHigh Definition Audio2/4/5.1/7.1-channel
LAN
Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication module
AMD Wi-Fi 6E RZ616 (MT7922A22M)WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bandsBLUETOOTH 5.2Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
Expansion Slots
CPU:1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.Chipset:1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x2 (PCIEX2)Support for AMD CrossFire™ technology (PCIEX16 and PCIEX4)
Storage Interface
CPU:1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 5.0(Note) x4/x2 SSD support) (M2A_CPU)(Note) Actual support may vary by CPU.1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU)Chipset:2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2C_SB, M2D_SB)4 x SATA 6Gb/s connectorsRAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devicesRAID 0, RAID 1, and RAID 10 support for SATA storage devices
USB
CPU:2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel2 x USB 3.2 Gen 1 ports on the back panelCPU + USB 2.0 Hub:4 x USB 2.0/1.1 ports on the back panelChipset:2 x USB Type-C® ports, with USB 3.2 Gen 2×2 support (1 port on the back panel, 1 port available through the internal USB header)8 x USB 3.2 Gen 1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)4 x USB 2.0/1.1 ports available through the internal USB headers
Internal I/O Connectors
1 x 24-pin ATX main power connector2 x 8-pin ATX 12V power connectors1 x CPU fan header1 x water cooling CPU fan header3 x system fan headers1 x CPU cooler LED strip/RGB LED strip header2 x addressable LED strip headers2 x RGB LED strip headers4 x SATA 6Gb/s connectors4 x M.2 Socket 3 connectors1 x front panel header1 x front panel audio header1 x USB Type-C® header, with USB 3.2 Gen 2×2 support2 x USB 3.2 Gen 1 headers2 x USB 2.0/1.1 headers1 x THB_U4 add-in card connector1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)1 x power button1 x reset button1 x Clear CMOS button1 x reset jumper1 x Clear CMOS jumper
Back Panel Connectors
1 x Q-Flash Plus button2 x SMA antenna connectors (2T2R)1 x HDMI port6 x USB 3.2 Gen 1 ports4 x USB 2.0/1.1 ports2 x USB 3.2 Gen 2 Type-A ports (red)1 x USB Type-C® port, with USB 3.2 Gen 2×2 support1 x RJ-45 port3 x audio jacks
I/O Controller
iTE® I/O Controller Chip
H/W Monitoring
Voltage detectionTemperature detectionFan speed detectionWater cooling flow rate detectionFan fail warningFan speed control
BIOS
1 x 256 Mbit flashUse of licensed AMI UEFI BIOSPnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
Support for GIGABYTE Control Center (GCC)* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.Support for Q-FlashSupport for Q-Flash PlusSupport for Smart Backup
Bundled Software
Norton® Internet Security (OEM version)LAN bandwidth management software
Operating System
Support for Windows 11 64-bitSupport for Windows 10 64-bit
Form Factor
ATX Form Factor; 30.5cm x 24.4cm
Warranty
3 Years
Note
*** Features, Price, Specifications are subject to change without notice.
