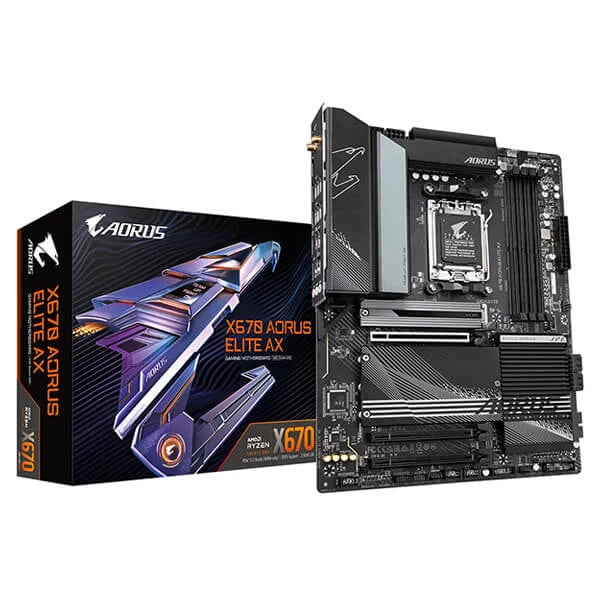

GIGABYTE X670 Aorus Elite AX Wifi DDR5 AMD Motherboard

Product Description

Features Of GIGABYTE X670 Aorus Elite AX Wi-Fi
AMD Socket AM5：Supports AMD Ryzen™ 7000 Series Processors
Unparalleled Performance：Twin 16*+2+2 Phases Digital VRM Solution
GIGABYTE X670 Aorus Elite AX Wifi DDR5：4*SMD DIMMs with AMD EXPO™ & Intel® XMP Memory Module Support
Next Generation Storage：1*PCIe 5.0 x4 and 3*PCIe 4.0 x4 M.2 Connectors
Mega-Heatpipe & M.2 Thermal Guard：To Ensure VRM Power Stability & 25110 PCIe 5.0 M.2 SSD Performance
EZ-Latch：PCIe x16 Slot & M.2 Connectors with Quick Release & Screwless Design
Fast Networks：2.5GbE LAN & Wi-Fi 6E 802.11ax
Extended Connectivity：HDMI, Dual USB-C® 20Gbps and Upcoming GIGABYTE USB4 AIC Support
Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card
UNPARALLELED PERFORMANCE
With fast moving of technology changes, GIGABYTE follows with the latest trends and provides customers with advanced features and latest technologies. GIGABYTE motherboards come with upgraded power solution, latest storage standards and outstanding connectivity to enable optimize performance for gaming needs.
OUTSTANDING THERMAL DESIGN
GIGABYTE X670 Aorus Elite AX Wif Motherboards’ Un-throttled performance is guaranteed by innovative and optimized thermal design to ensure the best CPU, Chipset, SSD stability and low temperatures under full load application and gaming performance.
CONNECTIVITY
GIGABYTE Motherboards enable the ultimate connection experience with blazing data-transfer speeds through the next generation network, storage, and WIFI connectivity.
PERSONALIZATION
GIGABYTE motherboards bundle several useful and intuitive software to help users to control every aspect of motherboard and provide customizable lighting effect with outstanding aesthetics to fit your unique personality.
ULTRA DURABLE
GIGABYTE Ultra Durable™ design provides product durability and high-quality manufacturing process. GIGABYTE motherboards use the best components and reinforce every slots to make each of them solid and durable.
Specifications Of GIGABYTE X670 Aorus Elite AX Wi-Fi


CPU
AMD Socket AM5, support for: AMD Ryzen™ 7000 Series Processors
Chipset
AMD X670
Memory
Support for DDR5 6400,6200,6000,5600,5200,4800,4400 MHz memory modules4 x DDR5 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memoryDual channel memory architectureSupport for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modulesSupport for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules
Onboard Graphics
1 x HDMI port, supporting a maximum resolution of 4096×2160@60 HzSupport for HDMI 2.1 version and HDCP 2.3.Support native HDMI 2.1 TMDS compatible ports.
Audio
Realtek® Audio CODECHigh Definition Audio2/4/5.1/7.1-channelYou can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
LAN
Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication module
AMD Wi-Fi 6E RZ616 (MT7922A22M)WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bandsBLUETOOTH 5.2Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
Expansion Slots
CPU:1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.Chipset:1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x2 (PCIEX2)Support for AMD CrossFire™ technology (PCIEX16 and PCIEX4)
Storage Interface
CPU:1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 5.0(Note) x4/x2 SSD support) (M2A_CPU) (Note) Actual support may vary by CPU.1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU)Chipset:2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2C_SB, M2D_SB)4 x SATA 6Gb/s connectorsRAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devicesRAID 0, RAID 1, and RAID 10 support for SATA storage devices
USB
CPU:2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel2 x USB 3.2 Gen 1 ports on the back panelCPU + USB 2.0 Hub:4 x USB 2.0/1.1 ports on the back panelChipset:2 x USB Type-C® ports, with USB 3.2 Gen 2×2 support (1 port on the back panel, 1 port available through the internal USB header)8 x USB 3.2 Gen 1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)4 x USB 2.0/1.1 ports available through the internal USB headers
Internal I/O Connectors
1 x 24-pin ATX main power connector2 x 8-pin ATX 12V power connectors1 x CPU fan header1 x water cooling CPU fan header3 x system fan headers1 x CPU cooler LED strip/RGB LED strip header2 x addressable LED strip headers2 x RGB LED strip headers4 x SATA 6Gb/s connectors4 x M.2 Socket 3 connectors1 x front panel header1 x front panel audio header1 x USB Type-C® header, with USB 3.2 Gen 2×2 support2 x USB 3.2 Gen 1 headers2 x USB 2.0/1.1 headers1 x THB_U4 add-in card connector1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)1 x power button1 x reset button1 x Clear CMOS button1 x reset jumper1 x Clear CMOS jumper
Back Panel Connectors
1 x Q-Flash Plus button2 x SMA antenna connectors (2T2R)1 x HDMI port6 x USB 3.2 Gen 1 ports4 x USB 2.0/1.1 ports2 x USB 3.2 Gen 2 Type-A ports (red)1 x USB Type-C® port, with USB 3.2 Gen 2×2 support1 x RJ-45 port3 x audio jacks
I/O Controller
iTE® I/O Controller Chip
H/W Monitoring
Voltage detectionTemperature detectionFan speed detectionWater cooling flow rate detectionFan fail warningFan speed controlWhether the fan speed control function is supported will depend on the fan you install.
BIOS
1 x 256 Mbit flashUse of licensed AMI UEFI BIOSPnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
Support for GIGABYTE Control Center (GCC)Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.Support for Q-FlashSupport for Q-Flash PlusSupport for Smart Backup
Bundled Software
Norton® Internet Security (OEM version)LAN bandwidth management software
Operating System
Support for Windows 11 64-bitSupport for Windows 10 64-bit
Form Factor
ATX Form Factor; 30.5cm x 24.4cm
Warranty
3 Years
Note
*** Features, Price, Specifications are subject to change without notice.
