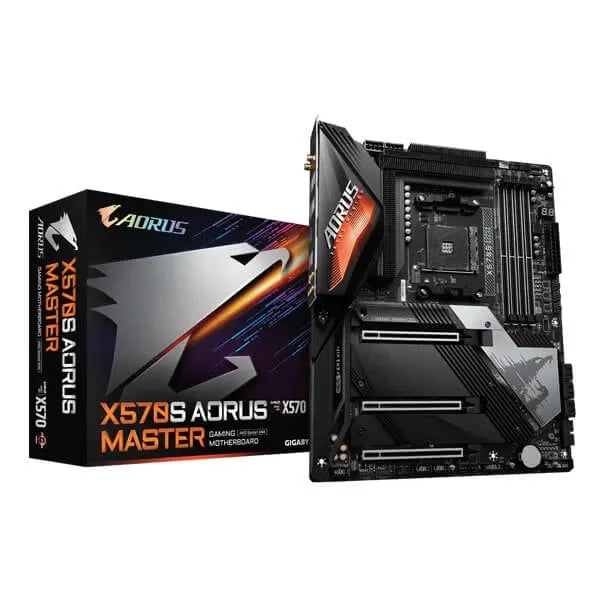

GIGABYTE X570S Aorus Master DDR4 AMD Motherboard

Product Description

Feature of Gigabyte X570S Aorus Master DDR4

Supports AMD Ryzen™ 5000 Series/ Ryzen™ 4000 G Series/ Ryzen™ 3000 Series/ Ryzen™ 3000 G Series/ Ryzen™ 2000 Series/ Ryzen™ 2000 G Series Processors
Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs
Active OC Tuner features Dynamic Change Between P.B.O. and Manual OC Settings
Direct 14+2 Phases Infineon Digital VRM Solution with 70A Power Stage
Advanced Thermal Solution with Fins-Array II, Direct Touch Heatpipe II, M.2 Thermal Guard III and Thermal Backplate
Intel® WiFi 6E 802.11ax & BT 5.2
Quad Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with Thermal Guards
Blazing Fast Intel® 2.5GbE LAN with cFosSpeed
SuperSpeed USB 3.2 Gen 2×2 TYPE-C® delivers up to 20Gb/s transfer speeds
125dB SNR AMP-UP Audio with High-End ESS SABRE 9118 DAC, ALC1220-VB and WIMA Audio Capacitors
Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP and Noise Detection
RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Support Addressable LED & RGB LED Strips
Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card
UNPARALLELED PERFORMANCE
To unleash the full potential of the latest AMD Ryzen™ 5000 series processors, the motherboard requires the best CPU power, memory and IO design. With the best quality components and GIGABYTE R&D design capability, X570S AORUS MASTER is a true beast among motherboards.
Direct-Touch Heatpipe II
With an extra large 8mm heatpipe and made by a new manufacturing process which has narrowed down the gap between the heatpipe and heatsink. The new Direct-Touch Heatpipe II greatly helps to dissipate the heat on MOSFETs.
2X Copper PCB
2X Copper PCBs design effectively lower the component temperature by its high thermal conductivity and low impedance.
Fins-Array II
Fins-Array II uses brand new louvered stacked-fins design which not only increases surface area by 300% compared to traditional heatsinks, but also improves thermal efficiency with better airflow and heat dissipation.
9 W/mK Thermal Conductivity Pad
By using 1.5mm thicker 9 W/mK thermal conductivity pads, it can transfer 4x more of heat dissipation compared to traditional thermal pads in same time.
M.2 Thermal Guard III
M.2 Thermal Guard III constructed with 2.6X optimized heat dissipation surface and double-sided M.2 heatsinks to prevent throttling and bottlenecks on high-speed/ large capacity of PCIe 4.0 M.2 SSDs.
ADVANCED THERMAL SOLUTION
GIGABYTE X570S Aorus Master DDR4 uses an unprecedented and innovative thermal design to ensure the best CPU, Chipset, SSD stability and low temperatures under full loading application and gaming.
NEXT GENERATION CONNECTIVITY
A Flagship product needs to be future-proof so your system stays up-to-date with the latest technology. X570S AORUS MASTER provides all next generation network, storage, and WIFI connectivity to keep you up to speed.
Specifications of Gigabyte X570S Aorus Master DDR4


CPU
AMD Socket AM4, support for: AMD Ryzen™ 5000 Series Processors/ Ryzen 5000 G-Series/ AMD Ryzen™ 4000 G-Series Processors/ AMD Ryzen™ 3000 Series Processors/ AMD Ryzen™ 3000 G-Series Processors/ AMD Ryzen™ 2000 Series Processors/ AMD Ryzen™ 2000 G-Series Processors(Please refer “CPU Support List” for more information.)
Chipset
AMD X570
Internal I/O Connectors
1 x 24-pin ATX main power connector2 x 8-pin ATX 12V power connectors1 x CPU fan header1 x water cooling CPU fan header4 x system fan headers4 x system fan/water cooling pump headers2 x addressable LED strip headers2 x RGB LED strip headers1 x CPU cooler LED strip/RGB LED strip header4 x M.2 Socket 3 connectors6 x SATA 6Gb/s connectors1 x front panel header1 x front panel audio header1 x USB Type-C® header, with USB 3.2 Gen 2 support2 x USB 3.2 Gen 1 headers2 x USB 2.0/1.1 headers1 x noise detection header1 x Trusted Platform Module (TPM) header (2×6 pin, for the GC-TPM2.0_S module only)1 x Thunderbolt™ add-in card connector2 x temperature sensor headers1 x power button1 x reset button1 x Clear CMOS jumperVoltage Measurement Points
Memory
AMD Ryzen™ 5000 Series processors:Support for DDR4 5100(O.C.) / 5000(O.C.) / 4866(O.C.) / 4600(O.C.)/ 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modulesAMD Ryzen™ 4000 G-Series processors:Support for DDR4 5400(O.C.)/ 5200(O.C.) / 5000(O.C.) / 4866(O.C.) / 4600(O.C.)/ 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modulesAMD Ryzen™ 3000 Series processors:Support for DDR4 5200(O.C.) / 5000(O.C.) / 4866(O.C.) / 4600(O.C.)/ 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modulesAMD Ryzen™ 3000 G-Series Processors/AMD Ryzen™ 2000 Series Processors/ AMD Ryzen™ 2000 G-Series Processors:Support for DDR4 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 2933 / 2667 / 2400 / 2133 MHz memory moduleses4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memoryDual channel memory architectureSupport for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modulesSupport for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modulesSupport for Extreme Memory Profile (XMP) memory modules(Please refer “Memory Support List” for more information.)
Expansion Slots
1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:AMDRyzen™ 5000 Series Processors/AMDRyzen™ 3000 Series Processors support PCIe 4.0 x16 modeAMDRyzen™ 4000G-SeriesProcessors/AMDRyzen™ 2000 Series Processors support PCIe 3.0 x16 modeAMDRyzen™ 3000G-SeriesProcessors/AMDRyzen™ 2000 G-Series Processors support PCIe 3.0 x8 mode1 x PCI Express x16 slot (PCIEX8), integrated in the CPU:AMDRyzen™ 5000 Series Processors/AMDRyzen™ 3000 Series Processors support PCIe 4.0 x8 modeAMDRyzen™ 4000G-SeriesProcessors/AMDRyzen™ 2000 Series Processors support PCIe 3.0 x8 modeAMDRyzen™ 3000G-SeriesProcessors/AMDRyzen™ 2000 G-Series Processors do not support this slot* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.* The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode.1 x PCI Express x16 slot (PCIEX4), integrated in the Chipset:Supporting PCIe 4.0* /3.0 x4 mode* For AMD Ryzen™ 5000 Series Processors/AMD Ryzen™ 3000 Series Processors only.* The PCIEX4 slot shares bandwidth with the M2C_SB connector. The PCIEX4 slot becomes unavailable when a device is installed in the M2C_SB connector.
Wireless Communication module
Intel® Wi-Fi 6E AX210WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bandsBLUETOOTH 5.2Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate* Actual data rate may vary depending on environment and equipment.
USB
CPU:2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel2 x USB 3.2 Gen 1 ports on the back panelChipset+ASMedia® USB 3.2 Gen 2×2 Controller:1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2×2 supportChipset:1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header3 x USB 3.2 Gen 2 Type-A ports (red) on the back panel4 x USB 3.2 Gen 1 ports, available through the internal USB headersChipset+2 USB 2.0 Hubs:8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
LAN
Intel® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Storage Interface
1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/2280/22110 SSDs:AMD Ryzen™ 5000 Series Processors/AMD Ryzen™ 3000 Series Processors support SATA and PCIe 4.0 x4/x2 SSDsAMD Ryzen™ 4000 G-Series Processors/AMD Ryzen™ 3000 G-Series Processors/AMDRyzen™ 2000SeriesProcessors/AMDRyzen™ 2000 G-Series Processors support SATA and PCIe 3.0 x4/x2 SSDs1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2280/22110 SSDs:Supporting PCIe 4.0* /3.0 x4/x2 SSDs* For AMD Ryzen™ 5000 Series Processors/AMD Ryzen™ 3000 Series Processors only.2 x M.2 connectors (M2C_SB/M2D_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2280/22110 SSDs:Supporting SATA and PCIe 4.0* /3.0 x4/x2 SSDs* For AMD Ryzen™ 5000 Series Processors/AMD Ryzen™ 3000 Series Processors only.6 x SATA 6Gb/s connectors, integrated in the Chipset:Support for RAID 0, RAID 1, and RAID 10* Refer to “1-9 Internal Connectors,” for the installation notices for the M.2 and SATA connectors.
Audio
Realtek® ALC1220-VB audio CODEC* The front panel line out jack supports DSD audio.ESS SABRE9118 DAC chipSupport for DTS:X® UltraHigh Definition Audio2/4/5.1/7.1-channelSupport for S/PDIF Out
Multi-Graphics Technology
Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologiesFor AMD Ryzen™ 5000 Series Processors/AMD Ryzen™ 4000 G-Series Processors/AMD Ryzen™ 3000 Series Processors/AMD Ryzen™ 2000 Series Processors only.
Operating System
Support for Windows 10 64-bit
Back Panel Connectors
1 x Q-Flash Plus button1 x Clear CMOS button2 x SMA antenna connectors (2T2R)1 x USB Type-C® port, with USB 3.2 Gen 2×2 support5 x USB 3.2 Gen 2 Type-A ports (red)2 x USB 3.2 Gen 1 ports4 x USB 2.0/1.1 ports1 x RJ-45 port1 x optical S/PDIF Out connector5 x audio jacks
Unique Features
Support for APP Center* Available applications in APP Center may vary by motherboard model. Supported functions of each applicationmay also vary depending onmotherboard specifications.@BIOSEasyTuneFast BootGame BoostON/OFF ChargeRGB FusionSmart BackupSystem Information ViewerSupport for Q-Flash PlusSupport for Q-FlashSupport for Xpress Install
I/O Controller
iTE® I/O Controller Chip
H/W Monitoring
Voltage detectionTemperature detectionFan speed detectionWater cooling flow rate detectionOverheating warningFan fail warningFan speed control* Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.Noise detection
BIOS
1 x 256 Mbit flashUse of licensed AMI UEFI BIOSPnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor
ATX Form Factor; 30.5cm x 24.4cm
Bundle Software
Norton® Internet Security (OEM version)cFosSpeed
Warranty
3 Years
Note*
Price, feature and specifications are subject to change without notice.
