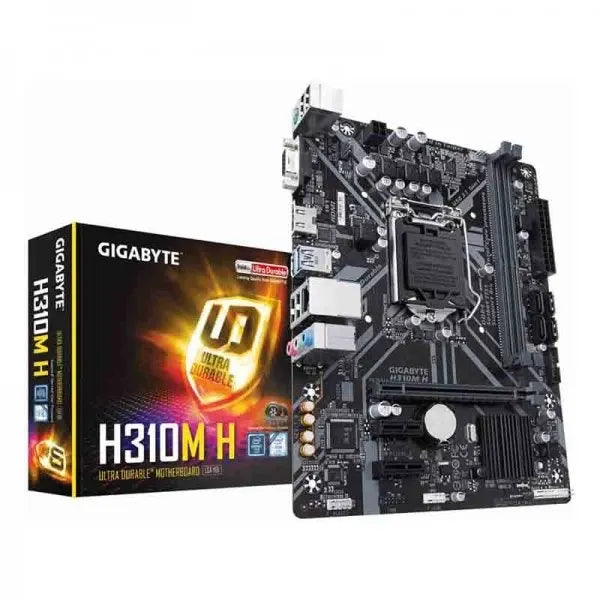

GIGABYTE H310M H DDR4 Intel Motherboard

Product Description

Features of GIGABYTE H310M H DDR4 Intel

Dual Channel Non-ECC Unbuffered DDR4Supports 8th Gen Intel® Core™ Processors Intel H310 Ultra Durable motherboard with GIGABYTE 8118 Gaming LAN, Anti-Sulfur Resistor, Smart Fan 5, CEC 2019 ready
8-Channel HD Audio with High Quality Audio Capacitors
GIGABYTE H310M H Exclusive 8118 Gaming LAN with Bandwidth Management
CEC 2019 Ready, Save Power With a Simple Click
Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP
All new GIGABYTE™ APP Center, simple and easy use
Anti-Sulfur Resistors Design
Exclusive Realtek 8118 Gaming LAN
Gigabyte H310M H (LGA-1151) High-Speed Gigabit LAN with Automatic Bandwidth Allocation
Realtek 8118 LAN is a high-performance and friendly network chip for gaming players with automatic bandwidth allocation to ensure the highest network priority of the game or application. It can provide users with the most comprehensive features and the fastest and smoothest Internet experience.
Smart Fan 5
With Smart Fan, 5 users can ensure that their gaming PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan, 5 more hybrid fan headers that support both PWM and Voltage mode fans have been introduced to make the motherboard more liquid cooling friendly.
Hybrid Fan Pin Headers
Assume complete control over your liquid cooling setup! Smart Fan 5 receives up-to-the-second information on flow rate through the Hybrid Fan Pin Headers—giving you absolute mastery over your PC.All Hybrid Fan Headers can automatically detect the type of cooling device whether it be fan or pump with different PWM or Voltage mode.

Specifications of GIGABYTE H310M H DDR4 Intel


CPU
Support for 8th Generation Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1151 packageL3 cache varies with CPU
Chipset
Intel® H370 Express Chipset
Memory
2 x DDR4 DIMM sockets supporting up to 32 GB of system memoryDual channel memory architectureSupport for DDR4 2666/2400/2133 MHz memory modulesSupport for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modulesSupport for Extreme Memory Profile (XMP) memory modules
Onboard Graphics
1 x D-Sub port, supporting a maximum resolution of 1920×1200@60 Hz1 x HDMI port, supporting a maximum resolution of 4096×2160@30 Hz
Audio
Realtek® ALC887 codecHigh Definition Audio2/4/5.1/7.1-channel
LAN
Realtek® GbE LAN chip (10/100/1000 Mbit)
Expansion Slots
1 x PCI Express x16 slot, running at x16(The PCIEX16 slot conforms to PCI Express 3.0 standard.)2 x PCI Express x1 slots(The PCI Express x1 slots conform to PCI Express 2.0 standard.)
Storage Interface
Chipset:4 x SATA 6Gb/s connectors
USB
4 x USB 3.1 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header
Internal I/O Connectors
1 x 24-pin ATX main power connector1 x 4-pin ATX 12V power connector4 x SATA 6Gb/s connectors1 x CPU fan header1 x system fan header1 x front panel header1 x front panel audio header1 x USB 3.1 Gen 1 header1 x USB 2.0/1.1 headers1 x Trusted Platform Module (TPM) header (2×6 pin, for the GC-TPM2.0_S module only)1 x Clear CMOS jumper
Back Panel Connectors
1 x PS/2 keyboard/mouse port1 x D-Sub port1 x HDMI port2 x USB 3.1 Gen 1 ports4 x USB 2.0/1.1 ports1 x RJ-45 port3 x audio jacks
I/O Controller
iTE® I/O Controller Chip
H/W Monitoring
Voltage detectionTemperature detectionFan speed detectionOverheating warningFan fail warningFan speed control
BIOS
1 x 128 Mbit flashUse of licensed AMI UEFI BIOSPnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
Support for APP Center* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.3D OSD@BIOSAutoGreenCloud StationEasyTuneFast BootGame BoostON/OFF ChargePlatform Power ManagementSmart BackupSmart KeyboardSmart TimeLockSmart HUDSystem Information ViewerUSB BlockerV-TunerSupport for Q-FlashSupport for Xpress Install
Bundle Software
Norton® Internet Security (OEM version)
Operating System
Support for Windows 10 64-bit
Form Factor
Micro ATX Form Factor; 22.6cm x 17.4cm
Warranty
3 Years
Note
***Features, Price and Specifications are subject to change without notice.
