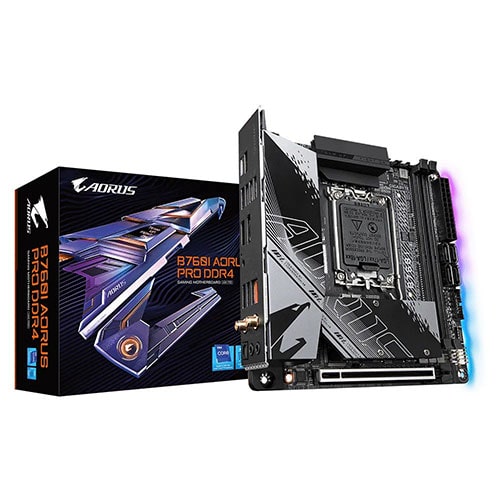

GIGABYTE B760I Aorus Pro DDR4 Intel Motherboard

Product Description

Features of GIGABYTE B760I Aorus Pro DDR4 Intel Motherboard

UNPARALLELED PERFORMANCE
With the fast-moving technology changes, GIGABYTE always follows the latest trends and provides customers with advanced features and latest technologies. GIGABYTE motherboards are equipped with upgraded power solution, latest storage standards and outstanding connectivity to enable optimized performance for gaming.
OUTSTANDING THERMAL DESIGN
GIGABYTE B760I Aorus Pro unparalleled performance is guaranteed by innovative and optimized thermal design to ensure the best CPU, Chipset, SSD stability and low temperatures under full load application and gaming performance.
CONNECTIVITY
GIGABYTE Motherboards enable the ultimate connection experience with blazing data-transfer speeds through the next generation network, storage, and Wi-Fi connectivity.
PERSONALIZATION
GIGABYTE motherboards bundle several useful and intuitive software to help users to control every aspect of motherboard and provide customizable lighting effect with outstanding aesthetics to fit your unique personality.
ULTRA DURABLE
GIGABYTE Ultra Durable™ design provides product durability and high-quality manufacturing process. GIGABYTE motherboards use the best components and reinforce every slots to make each of them solid and durable.

Specifications of GIGABYTE B760I Aorus Pro DDR4 Intel Motherboard


Model
Brand
GIGABYTE
Model
B760I AORUS PRO DDR4
Supported CPU
CPU Socket Type
LGA1700
CPU Type
13th and 12th Generation Intel Core, Pentium Gold and Celeron Processors
Chipsets
Chipset
Intel B760 Express Chipset
Memory
Number of Memory Slots
2 x DDR4 DIMM
Memory Standard
DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733
Maximum Memory Supported
64GB
Channel Supported
Dual Channel DDR4 Memory Technology
Expansion Slots
PCI Express x16
1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
Storage Devices
SATA 3Gb/s
4 x SATA 6Gb/s connectors
Onboard Video
Onboard Video Chipset
Integrated Graphics Processor-Intel® HD Graphics
Onboard Audio
Audio Chipset
Realtek audio codec
Onboard LAN
LAN Chipset
Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Rear Panel Ports
Audio Ports
2 x audio jacks
Video Ports
1 x DisplayPort
HDMI
1 x HDMI Port
Onboard USB
Onboard USB
N/A
Onboard 1394
Onboard 1394
N/A
Physical Spec
Form Factor
Mini ITX
Power Pin
1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector
Dimensions
17.0 x 17.0cm
