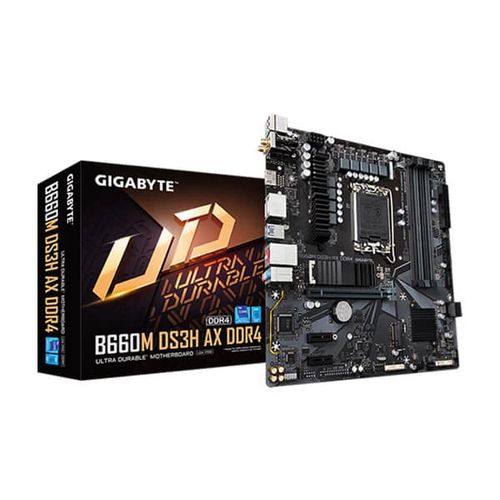

GIGABYTE B660M DS3H AX DDR4 Wifi Intel Motherboard

Product Description

The GIGABYTE B660M DS3H AX DDR4 WiFi is a feature-rich motherboard, designed for users who need a balance of performance, connectivity, and ease of use. Here’s a detailed breakdown of its key features and specifications:

Key Features:

1. CPU Support:
   • LGA1700 socket for 12th Generation Intel® Core™ processors (i9, i7, i5), with support for the latest Intel Core chips and varying L3 cache depending on the CPU used.
2. Hybrid Power Design:
   • 6+2+1 Phases Hybrid Digital VRM with MOS Heatsink for better power delivery and thermal performance, ensuring stable operation at high CPU frequencies and heavy workloads.
3. WiFi 6 & Bluetooth 5.2:
   • Intel® Wi-Fi 6 (802.11ax) 2T2R (2 transmit, 2 receive) with dual-band 2.4GHz/5GHz support, offering up to 2.4 Gbps data rate.
   • Bluetooth 5.2 for improved wireless device connectivity.
   • AERO Antenna for enhanced signal strength and stability.
4. 2.5GbE LAN:
   • Realtek® 2.5GbE LAN for up to 2.5Gbps network speeds, providing 2x faster transfer speeds compared to standard 1GbE networking.
   • This feature is particularly beneficial for gamers and users who need high-speed internet connectivity.
5. Dual Ultra-Fast PCIe 4.0 M.2:
   • Dual M.2 slots (PCIe 4.0 x4/x2) with M.2 Thermal Guard to prevent throttling or overheating of high-speed M.2 SSDs, ensuring peak performance during heavy workloads.
6. USB 3.2 Gen 2 Type-C®:
   • SuperSpeed USB 3.2 Gen 2 Type-C® port on the rear I/O panel for fast and versatile connections to a variety of devices, offering high-speed data transfer.
7. Smart Fan 6:
   • Includes multiple temperature sensors and hybrid fan headers with FAN STOP technology, allowing users to create custom cooling profiles and maintain low temperatures for high-performance gaming and workloads.
   • Supports PWM/DC fans and pumps for enhanced cooling flexibility.
8. Q-Flash Plus:
   • BIOS update feature without needing to install CPU, memory, or graphics card. Simply download a BIOS file, rename it, and use the Q-Flash Plus button for a smooth and easy BIOS update process.
9. RGB FUSION 2.0:
   • Allows for customizable RGB lighting with support for both Addressable LED and RGB LED strips to add a stylish touch to your PC build.
10. M.2 Thermal Guard:
    • The M.2 Thermal Guard prevents overheating and performance throttling in M.2 SSDs by dissipating heat effectively.

Specifications:

• Chipset: Intel® B660 Express Chipset
• Memory Support:
  • Supports DDR4 memory with speeds up to 5333 MHz (O.C.) and up to 128GB of total system memory (32GB per DIMM).
  • Dual-channel architecture and support for XMP profiles for enhanced memory performance.
• Graphics:
  • Supports integrated Intel® HD Graphics with HDMI, DisplayPort (up to 4K resolution) and up to 3 displays simultaneously (depending on the CPU’s integrated graphics).
• Storage:
  • 2x M.2 PCIe 4.0 x4 slots for fast SSDs (supporting up to 2280 form factor).
  • 4x SATA 6Gb/s connectors for additional storage options.
  • Supports Intel® Optane™ Memory.
• Expansion Slots:
  • 1x PCIe x16 (PCIe 4.0) for high-speed graphics cards.
  • 2x PCIe x1 (PCIe 3.0) for additional expansion cards.
• Audio:
  • Realtek® Audio Codec providing 7.1-channel high-definition audio with capacitors for cleaner sound and an audio noise guard for better signal integrity.
• Wireless Communication:
  • Intel® Wi-Fi 6 AX201/AX200/AX211 (depending on the board revision) supporting dual-band Wi-Fi (2.4/5 GHz) with Bluetooth 5.2 and up to 2.4 Gbps data rates.
  • Intel® Wi-Fi 6E AX211 (for some PCB revisions) adds 6GHz band support for faster and less congested wireless performance.
• USB Ports:
  • 1x USB Type-C® (USB 3.2 Gen 2) on the back panel.
  • 5x USB 3.2 Gen 1 (3 on the back, 2 internal headers).
  • 2x USB 2.0/1.1 ports on the back, with 4 more available via internal headers.
• I/O Panel:
  • 1x PS/2 Keyboard/Mouse port.
  • 1x D-Sub, 1x HDMI, 2x DisplayPort for multiple display output options.
  • 3x USB 3.2 Gen 1 ports, 1x USB Type-C®, and 2x USB 2.0/1.1 ports.
  • 2x SMA antenna connectors for Wi-Fi (with the AERO antenna).
  • 1x RJ-45 port for Ethernet and 3x audio jacks.
• Form Factor: Micro ATX (24.4 cm x 24.4 cm)

Additional Features:

• Software Bundles: Includes utilities like Norton® Internet Security, Realtek® Gaming LAN Bandwidth Control Utility, and GIGABYTE’s APP Center for system monitoring, BIOS management, and overclocking.
• BIOS: 256 Mbit flash BIOS with UEFI BIOS interface (licensed AMI BIOS).
• Warranty: 3 Years

Operating System Compatibility:

• Windows 11 64-bit and Windows 10 64-bit.

Conclusion:

The GIGABYTE B660M DS3H AX DDR4 WiFi motherboard provides excellent value for users who want solid performance with modern connectivity features. It offers fast Wi-Fi 6, 2.5GbE LAN, PCIe 4.0, and dual M.2 slots, all backed by a robust VRM design and cooling options. Its support for Intel’s 12th Gen Core processors, coupled with features like Smart Fan 6 and RGB Fusion, makes it a great choice for gamers and PC enthusiasts.
