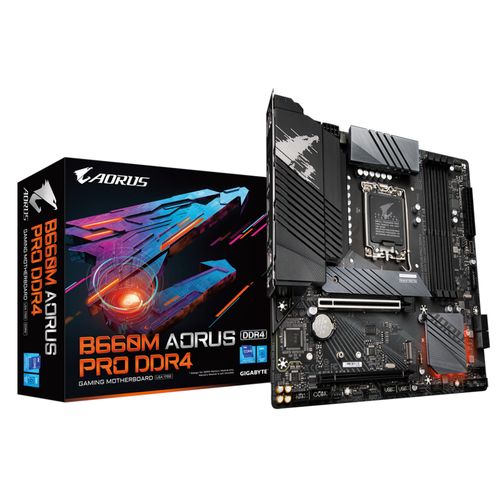

GIGABYTE B660M Aorus Pro DDR4 Intel Motherboard

Gigabyte B660M Aorus Pro DDR4 Motherboard Features & Specifications

The Gigabyte B660M Aorus Pro DDR4 is a powerful, feature-packed Micro ATX motherboard that supports Intel’s 12th Gen processors and features advanced technologies for performance, connectivity, and customization. It is designed for gamers, enthusiasts, and professionals who want high-performance and stability in their system.

Key Features

1. Processor Support:
   • Compatible with 12th Gen Intel® Core™, Pentium® Gold, and Celeron® processors (LGA 1700 socket), providing excellent processing power for both single-threaded and multi-threaded tasks.
2. Memory Support:
   • Supports Dual Channel Non-ECC Unbuffered DDR4 memory, with speeds up to 5333 MHz (OC).
   • 4 DIMM slots, supporting up to 128 GB of system memory.
   • Includes support for XMP (Extreme Memory Profile) for easier memory overclocking.
   • Shielded Memory Routing to reduce electromagnetic interference (EMI), improving stability and enabling better memory overclocking.
3. Power Delivery – 12+1+1 Phase VRM:
   • The motherboard features 12+1+1 Twin Hybrid Phases Digital VRM Design, delivering stable power to the CPU, ensuring high overclocking potential and performance stability.
   • 60A DrMOS provides efficient power delivery to the processor and enhanced performance, particularly for demanding applications like gaming and content creation.
4. Thermal Design:
   • Fully Covered Thermal Design with high coverage MOSFET heatsinks ensures that the motherboard stays cool even under heavy loads.
   • Dual PCIe 4.0 M.2 slots are equipped with Thermal Guards to prevent overheating and thermal throttling, ensuring maximum storage performance.
5. Connectivity:
   • Intel® 2.5GbE LAN provides high-speed internet connectivity, offering up to 2.5 Gbps, ideal for gaming, streaming, and large data transfers.
   • SuperSpeed USB 3.2 Gen 2×2 Type-C® port delivers transfer speeds up to 20Gb/s for fast data access.
   • Multiple USB 3.2 and USB 2.0 ports, both on the front and rear, ensuring plenty of connectivity for external devices.
6. Multi-Graphics Support:
   • Supports AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies, enabling multi-GPU setups for gamers and content creators who need additional graphical power.
7. Advanced Storage:
   • 2 x PCIe 4.0 x4 M.2 slots for high-speed NVMe SSDs, with one slot supporting PCIe 4.0 (up to 5.0 GB/s) and the other slot supporting PCIe 3.0 (up to 3.5 GB/s).
   • 4 x SATA 6Gb/s connectors, with support for SATA RAID 0, RAID 1, RAID 5, and RAID 10, offering flexible storage solutions.
   • Intel® Optane™ Memory Ready for system acceleration.
8. Video Outputs:
   • 1 x HDMI 2.1 port supporting 4K resolution (4096×2160 @ 60Hz).
   • 1 x DisplayPort 1.2 supporting 4K resolution (4096×2304 @ 60Hz).
   • These outputs allow the motherboard to work with integrated graphics (when using a compatible CPU), enabling high-resolution displays without the need for a discrete GPU.
9. Smart Fan 6:
   • Smart Fan 6 includes multiple temperature sensors, hybrid fan headers, and FAN STOP technology for enhanced cooling management. Users can control fan speeds based on system temperatures for quieter operation or increased cooling performance during heavy loads.
10. RGB Fusion 2.0:
    • Customizable RGB lighting with multi-zone addressable LEDs. The motherboard supports addressable LED strips and RGB LED strips, which can be controlled through RGB Fusion 2.0 software to create a personalized aesthetic for your build.
11. Q-Flash Plus:
    • With Q-Flash Plus, you can update the BIOS without installing the CPU, memory, or graphics card, making it easy to upgrade or restore the BIOS in case of failure.
12. Pre-installed I/O Shield:
    • The pre-installed I/O shield makes installation easier and quicker, improving the build experience.

Specifications

Unique Features

1. 12+1+1 Phase VRM Design:
   • The Twin Hybrid Phases Digital VRM Design (12*+1+1) ensures that the CPU gets clean and stable power delivery, which is essential for overclocking and running demanding applications.
2. Blazing Fast Networking:
   • Intel® 2.5GbE LAN allows for faster internet speeds, especially useful for gaming, video streaming, and large file transfers.
3. Dual PCIe 4.0 M.2 with Thermal Guard:
   • PCIe 4.0 M.2 slots ensure that the motherboard can take advantage of next-gen NVMe SSDs for ultra-fast storage speeds, while the Thermal Guards prevent overheating.
4. RGB Fusion 2.0:
   • A customizable lighting solution with multi-zone addressable LEDs and support for both addressable LED strips and RGB LED strips, offering complete aesthetic control.
5. Smart Fan 6 with FAN STOP:
   • Advanced cooling control with multiple sensors and customizable fan curves. The FAN STOP feature allows fans to stop entirely under low load for a quieter system.
6. Q-Flash Plus:
   • BIOS updating without installing the CPU, memory, or GPU, which is a lifesaver when performing a BIOS recovery or update.

Summary

The Gigabyte B660M Aorus Pro DDR4 motherboard is an excellent choice for users looking to build a high-performance, future-proof system. It supports Intel’s 12th Gen processors, offers fast PCIe 4.0 storage options, and delivers high-speed networking with Intel 2.5GbE LAN. The motherboard also features advanced power delivery, robust thermal solutions, and a rich set of connectivity options, making it ideal for both gaming and professional workloads.

With support for XMP memory overclocking, Dual M.2 slots with thermal guards, multi-GPU support, and customizable RGB lighting, this motherboard is an attractive choice for enthusiasts and DIY builders. Whether you’re building a gaming PC or a workstation, the Gigabyte B660M Aorus Pro DDR4 provides the features, performance, and expandability you need for a top-tier system.
