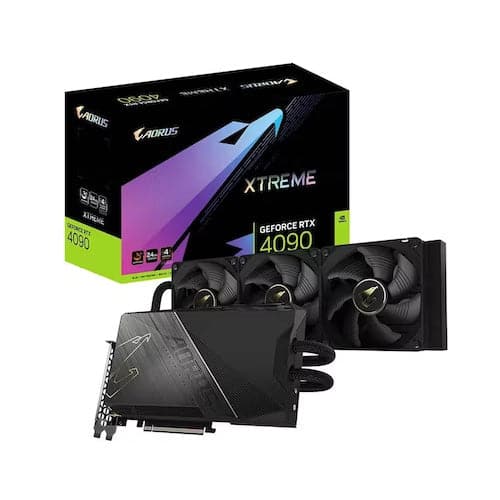

GIGABYTE Aorus Xtreme GeForce RTX 4090 WaterForce 24GB Nvidia Graphic Card

Product Description

Features of GIGABYTE Aorus Xtreme GeForce RTX 4090 WaterForce 24GB Nvidia Graphic Card

KEY FEATURE
NVIDIA Ada Lovelace Streaming Multiprocessors:Up to 2x performance and power efficiency
4th Generation Tensor Cores: Up to 4x performance with DLSS 3 vs. brute-force rendering
3rd Generation RT Cores: Up to 2X ray tracing performance
Powered by GeForce RTX™ 4090
Integrated with 24GB GDDR6X 384-bit memory interface
WATERFORCE all-in-one cooling system
360mm radiator with 3x 120mm fans
Protection metal back plate
4 Years Warranty (Online registration required)
CORE CLOCK
2565 MHz (Reference Card: 2520 MHz)
WATERFORCE COOLING SYSTEM
The ideal way for PC enthusiasts to enjoy the benifits of water cooling without complicated installations. AORUS provides an all-around cooling solution as critical parts like GPU, VRAM and MOSFET are actively cooled to ensure system stability under high overclocks.
OPTIMIZED 360MM ALUMINUM RADIATOR
The triple-sized radiators and fins increase the surface area and volume for thermal, making the graphics card more stable and cooler under high overclocks.
3X 120MM FANS
The triple-fan design can generate more airflow to better heat dissipation, delivering a powerful cooling and quiet gaming experience.
2X DOUBLE BALL BEARING
The double ball bearing structure has better heat endurance and efficiency than sleeve structure, and has at least twice the service life.
LARGE COPPER BASE PLATE
Without any extra fan on the card, WATERFORCE provides the best cooling solution for the GPU/VRAM/MOSFET. The copper plate efficiently dissipates the heat to result in a real silent environment.
460MM BRAIDED FEP TUBES
With nearly no moisture absorption, high thermal stability and high pressure tolerance, the sturdy FEP tubes greatly enhance product life and durability.
PROTECTION METAL BACK PLATE
The metal back plate not only provides an aesthetical shape, but also enhances the structure of the graphics card to provide complete protection.
EXTREME OVERCLOCKING
The graphics card features excellent power phase design to allow the MOSFETs to operate at lower temperatures and provide a more stable voltage output. Load balancing of each MOSFET can effectively improve the overclocking performance and extend the life of the card.
ULTRA DURABLE
Ultra Durable certified highest-grade metal chokes, lower ESR solid capacitors, 2oz copper PCB, and lower RDS(on) MOSFETs, plus over-temperature design to deliver superior performance and longer system life.
FRIENDLY PCB DESIGN
Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.
4-YEAR WARRANTY
We want you to experience the best service you have ever had. This is why, on top of our standard 3-year warranty, we would like to offer you an additional 1 year of protection to your graphics card free of charge. You can enjoy a 4-year warranty by registering on the website within 30 days of purchase.
24GB 384-Bit GDDR6X
Core Clock 2565 MHz
1 x HDMI 2.1 3 x DisplayPort 1.4a
16384 CUDA Cores
PCI Express 4.0

Specifications of GIGABYTE Aorus Xtreme GeForce RTX 4090 WaterForce 24GB Nvidia Graphic Card


Model
Brand
GIGABYTE
Model
GV-N4090AORUSX W-24GD
Form Factor
RTX 4090 XTREME WATERFORCE 24G
Interface
Interface
PCI Express 4.0
Chipset
GPU
NVIDIA® GeForce RTX® 4090
Core clock
2565 MHz (Reference Card: 2520 MHz)
Memory
Memory Clock
21 Gbps
Memory Size
24GB
Memory Interface
384-bit
Memory Type
GDDR6X
3D API
DirectX
DirectX : 12 Ultimate
OpenGL
OpenGL 4.6
Ports
HDMI
HDMI 2.1*1
DisplayPort
3 x DisplayPort 1.4a
General
Max Resolution
7680 x 4320
Cooler
Triple fan
Power Connector
1 x 16-pin
