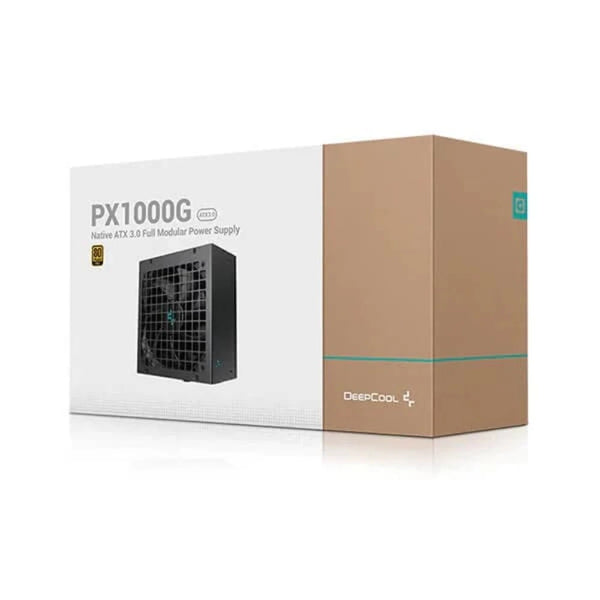

DEEPCOOL PX1000G 1000W 80+ Gold Fully Modular ATX 3.0 Power Supply

Product Description

Features of DEEPCOOL PX1000G 1000W 80 + Gold Fully Modular  Power Supply

The DeepCool PX1000G is a newly designed power supply that meets the latest ATX 3.0 standard. With a dedicated 12VHPWR, 2 EPS, and 3 PCI-e ports, the PX1000G provides stable power for a wide range of components.
Past, Present and Future
With the ability to provide three times the total GPU and twice the total system power for 0.1 ms, power spikes will never be an issue. The PX1000G will provide stable and consistent power for legacy and next-generation PCs for the foreseeable future.
PCI-e 5.0 Power Perfected
Equipped with the new PCI-e Gen 5.0 12VHPWR cable, the PX-G provides up to 600W for power hungry GPUS.
Static to Dynamic
The PX1000G comes equipped with the option to switch into semi-fanless operation. In hybrid mode, the 135mm FDB fan will dynamically adjust out of its zero RPM state once the system load hits a certain threshold.

Specifications of DEEPCOOL PX1000G 1000W 80 + Gold Fully Modular ATX 3.0 Power Supply



Model
R-PXA00G-FC0B-UK
Type
ATX12V V3.0
Product Dimensions
150×160×86mm (W x L x H)
Efficiency certification
80Plus GOLD/Cybenetics_Platinum
Fan Size
135mm
Fan Bearing
FDB (Fluid Dynamic Bearing)
Topology
Active PFC + Half Bridge SRC LLC + DC to DC
Power Good Signal
100-150ms
Hold Up Time
≥16ms
Efficiency
≥90% Under Typical Load(50% Loading)
Protection
OPP/OVP/SCP/OTP/OCP/UVP
Operation Temperature
0 – 40℃
Regulatory
CE/FCC/CCC/TUV-RH/RCM/EAC/CAN ICES-003(B)/NMB-003(B)/UKCA/BIS/KC
Erp Regulation
ErP 2014
MTBF
100,000 Hours
Warranty
10 Years
Note
*** Features, Price, Specifications are subject to change without notice.
