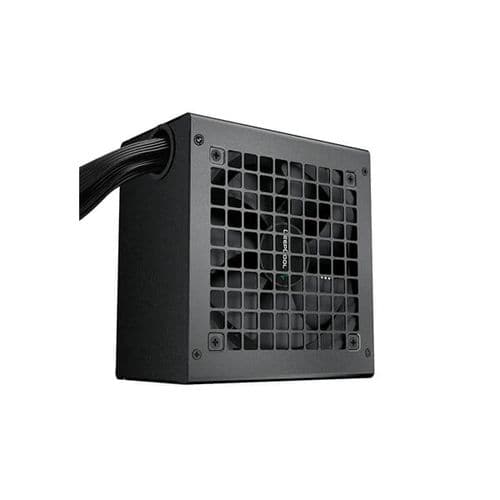

DEEPCOOL PK750D 750W 80+ Bronze Non Modular ATX 2.0 Power Supply

Product Description

Features of DEEPCOOL PK750D Bronze Non Modular Power Supply


PK750D
The DeepCool PK750D series power supply offers reliable 80 PLUS Bronze efficiency to power computer system builds with stability and low noise performance.
BEAUTIFUL IN BRONZE
The PK-D series is certified 80 PLUS Bronze, delivering up to 85% efficiency under typical load minimizing excess heat waste and lowering energy costs.
DC-DC CONVERSION
A highly efficient DC-DC board designed for the +3.3V and +5V rails help achieve tighter voltage regulation and improve system compatibility for next-generation components.
TOUGH AND DURABLE
Designed to operate effortlessly in high temperatures up to 40°C and high altitudes up to 5000m while providing continuous stable power output.
ERP LOT 6 COMPLIANT
Designed to be highly power efficient when in power standby mode to meet international ErP Lot 6 standards to lower overall energy consumption.
Technical Details
Brand : DeepCool
Model : PK750D
Technical Specs
Type : ATX12V V2.4
Product Dimensions : 150×140×86mm (W x L x H)
80PLUS Certifications : Bronze
Fan Size : 120mm
Fan Bearing : Hypro Bearing
Topology : Active PFC+DC to DC
Capacitors : Taiwan capacitor
Power Good Signal : 100-150ms
Hold Up Time : ≥16ms(80% Load)
Efficiency : ≥85% Under Typical Load(50% Loading)
Protection : SCP,OPP,OTP,OVP,OCP,UVP
Operation Temperature : 0 – 40 °C
Regulatory : CB/CE/FCC/CAN ICES-003(B)/NMB-003(B)/ TUV-RH/CCC/UKCA/EAC/RCM/BIS
Erp Regulation : ErP 2013
MTBF : 100,000 Hours

Specifications of DEEPCOOL PK750D 750W 80+ Bronze Non Modular Power Supply


Model
Brand
Deepcool
Model
PK750D
Series
PK-D
Spec
Type
ATX 12V V2.4
Maximum Power
750W
Fans
120mm fan
PFC
Active PFC
Power Good Signal
100-150ms
Hold-up Time
≥16ms(80% Load)
Efficiency
≥85% Under Typical Load(50% Loading)
Over Voltage Protection
SCP,OPP,OTP,OVP,OCP,UVP
