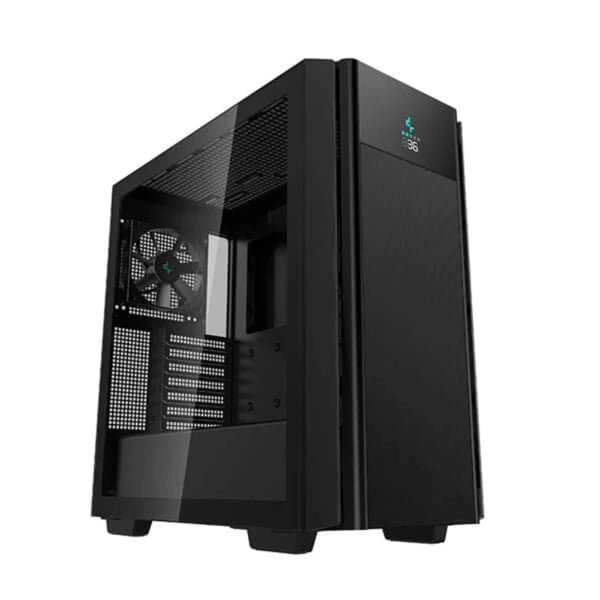

DEEPCOOL CH510 Mesh Digital EATX Mid Tower Cabinet (Black)

Product Description

Features:
The DeepCool CH510 MESH DIGITAL is a high airflow mid-tower ATX case with great flexibility and wide component compatibility for any system build. Featuring a display screen that is programmable to monitor internal system temperatures for critical information up front.
High-Airflow PanelThe CH510 MESH DIGITAL is an ideal case for any level builder needing a spacious interior and robust features designed for the modern PC gamer. The large metal mesh front panel allows vast amounts of airflow for optimal system cooling.
Built-In DisplayMonitor system information stats for critical CPU or GPU temperatures with a digital display built into the front panel for info access up close.
More Capacity, More PowerBig power needs big cooling and the CH510 MESH DIGITAL provides ample amount of mounting locations to install plentiful cooling. Install large radiators up to 360mm either in front or on top, or fit up to 9x 120mm or 5x 140mm cooling fans for extreme airflow throughout.
Wide and Spacious InteriorMaximize potential with flexible configurations that meet the needs of any system setup. With space for large GPUs up to 380mm and CPU coolers up to 175mm in height, the CH510 provides ample space without being too bulky.

Specifications:

Model Number
R-CH510-BKNSE1-G-1
Product Dimensions
455×230×470mm(L×W×H)
Net Weight
7.5Kg
Materials
ABS+SPCC+Tempered Glass
Motherboard Support
Mini-ITX / Micro-ATX / ATX / E-ATX
Front I/O Ports
USB3.0×1、Tpye-c×1、Audio×1
3.5″ Drive Bays
2
2.5″ Drive Bays
2+1
Expansion Slots
7 Slots
Pre-Installed Fans
Rear: 1×120mm
Fan Support
Front: 3×120 / 2×140mmTop: 3×120 / 2×140mmRear: 1×120 / 1×140mmPSU Shrouded: 2×120mm
Radiator Support
Front: 120/140/240/280/360mmTop: 120/140/240/280/360mmRear: 120/140mm
CPU Cooler Height Limit
175mm
GPU Length Limit
380mm
Power Supply Type
ATX PS2 （maximum length: 170mm）
Warranty
1 Year
Note
*** Features, Price, Specifications are subject to change without notice.
