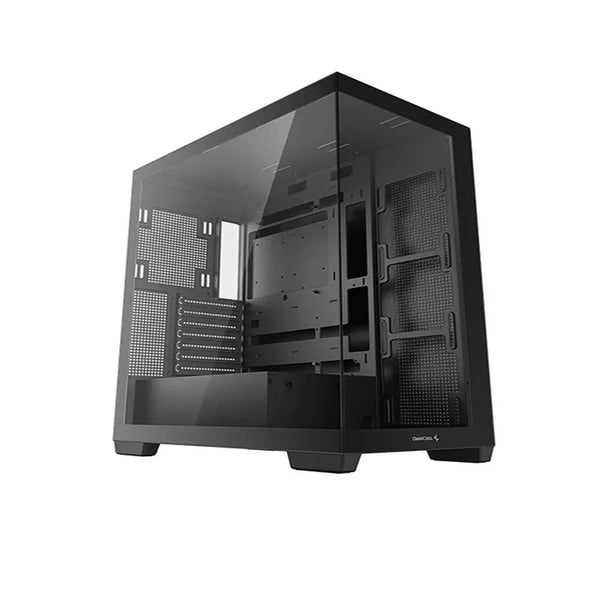

DEEPCOOL CG580 Panaromic ATX Mid Tower Cabinet ( Black )

Product Description

Features of DEEPCOOL CG580 Panaromic ATX Mid Tower Cabinet ( Black )

The DEEPCOOL CG580 is a picturesque single-chamber panoramic case that was built to accommodate the most commonly used components available while showing them off in style. With support for 360mm radiators and numerous fan configurations, the CG580 is also extremely functional. No fans are included, so the case is fully primed to accept your favorite cooling fans.
SCENIC VIEW
The lack of an A pillar between the front and side tempered glass panels removes the main obstruction to a clear and uninterrupted view of your incredible build.
KEEPING IT CLEAN
The internal single chamber layout optimizes the available space with 33mm of cable management space, while the motherboard tray supports motherboards with back connectors from ASUS and MSI; as a result, your system will look more steamlined and cleaner than ever before.
THE SUPPORT YOU NEED
Designed to support up to ATX motherboards, 360mm radiators at the top and side, 410mm long GPUs (limited to 262mm if a radiator and fan set are mounted on the side), 210mm PSUs, 176mm tall air coolers, and up to 9 120mm fans, the CG580 can be configured in a wide array of combinations for your modern hardware needs. The bottom position can support either a 120mm fan or a 3.5″” HDD drive.
RADIATORS:
Top: 120/140/240/280/360mm
Side: 120/240/360mm
Rear: 120/140mm
FANS:
Top: 3x120mm/2x140mm
Side: 3x120mm
Rear: 1x120mm/1x140mm
Bottom: 1x120mm
PSU Shroud: 2x120mm
Specification of DEEPCOOL CG580 Panaromic ATX Mid Tower Cabinet ( Black )


Product Dimensions
437×235×501mm(L×W×H)
Net Weight
7.9Kg
Materials
ABS+SGCC+Tempered Glass
Motherboard Support
ITX/Micro-ATX/ATX ATX(Rear Connector)/Micro-ATX(Rear Connector)
Front I/O Ports
USB3.0×2、Audio×1、Power、Reset
3.5″ Drive Bays
2
2.5″ Drive Bays
2+1
Expansion Slots
7Slots
Pre-Installed Fans
None
Fan Support
Front: NA Top: 3×120mm/2x140mm Side: 3x120mm Rear: 1×120mm/1x140mm Bottom: 1×120mm（3.5 HDD/120FAN :Choose one of two） PSU Shrouded: 2×120mm
Radiator Support
Front: NA Top: 120/140/240/280/360mm Side: 120/240/360mm Rear: 120/140mm
CPU Cooler Height Limit
176mm
GPU Length Limit
410mm (limited to 262mm if a 360mm radiator and fan set are mounted on the side)
Power Supply Type
ATX PS2（maximum length: 210mm）
