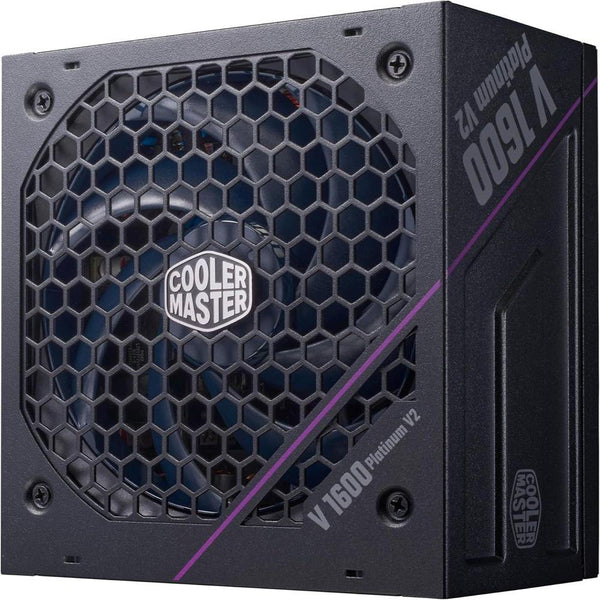

COOLER MASTER V 1600W V2 80+ Platinum Fully Modular ATX 3.1 Power Supply

Product Description

Features of COOLER MASTER V 1600W V2 80+ Platinum Fully Modular ATX 3.1 Power Supply

Introducing the V Platinum V2, featuring an ultraquiet Mobius fan, 80 Plus Platinum efficiency, optimized thermal performance, dual 40 series GPU support, and ATX 3.1 support with a durable 12V-2×6 cable. Each ofthese features makes it the ultimate in silent, powerful performance.
The V Platinum V2 also includes a protective conformal coating, a zero-RPM fan mode, fully modular cabling, high-quality Japanese capacitors, and a 12-year warranty, making it one of our most feature-packed PSUs to date.
The Cooler master V Platinum V2 ensures silent operation with an ultra-quiet Mobius fan, a protective conformal coating heatsink, smart thermal control, zero-RPM fan mode, fully modular cabling, and 80 Plus Platinum efficiency.
Ultra-quiet Mobius fan
An ultra-quiet Mobius fan featuring high-performance oil reflow and an innovative ring blade design.
80 Plus Platinum efficiency certification
This unit is certified to achieve more than 92% efficiency at typical loads.
Optimized thermal performance
Anodiccoated heat sinks keep average component temperatures lower than a traditional heat sink for enhanced durability and a prolonged life span.
ATX 3.1 support & a durable 12V-2×6 cable
Includes ATX 3.1 support and a 90-degree 12+4pin (12V-2×6) PCIe 5.1 cable featuring lower temperatures, enhanced durability, and improved safety.
Dual 40 series GPU support
 Two 12V-2×6 connectors for dual 40 series GPU support.
Protective coating
A conformal coating provides protection against dust, moisture, and insects.
Interleaved PFC design
An interleaved PFC decreases power loss by minimizing the current and reducing interference.
Smart thermal control mode
Fan speed is automatically adjusted according to the PSU’s operating temperature.
Silent fan performance with a zero-RPM mode
This unit defaults to zero fan spin, providing silent fan performance.
Fully modular cabling
Efficiently reduces clutter, increases airflow, and improves overall efficiency and thermal performance.
High-quality Japanese capacitors
Large, high-quality Japanese capacitors feature reduced ripple noise andenhanced reliability.
12-year warranty
This unit comes with a standardlimited manufacturing warranty of 12 years from thedate of purchase.

Advanced Heat Dissipation: The purple anodized heat sink with bevel cuts effectively lowers temperatures by concentrating the flow field and enhancing heat dissipation.
Dual Durable 90° 12v-2X6 Cables: Featuring a 90° 12V-2×6 PCIe 5.0 connector, for improved electrical durability and safety.
ATX 3.1 Cables: The ATX 3.1 delivers up to 600W per connector, for an impressive 1200W output.
Mobius Fan: An advanced oil reflow, ring blade design, and accelerated air vents, this setup excels in noise reduction and thermal performance.
Loop Dynamic Bearing: The design features a thick oil coating and lubrication for stable performance.
Zero Speed Mode: Featuring lower noise level output and improved airflow thanks to a higher RPM.

Specifications of COOLER MASTER V 1600W V2 80+ Platinum Fully Modular ATX 3.1 Power Supply


Form Factor
ATX
Watts
1600W
Category
Above 750W
Modular
Fully Modular
PFC
Active PFC
Input Frequency
50-60Hz
ErP 2014 Lot 3
Yes
ATX 24 Pin Connectors
1
EPS 4+4 Pin Connectors
1
80 PLUS Rating
80 PLUS Platinum
EPS 8 Pin Connector
1
Power Good Signal
100 – 150 ms
12V-2×6 Connectors
2
SATA Connectors
16
MTBF
>100,000 Hours
Fan Bearing
LDB
80 Plus
Platinum
Operating Temperature
0-50°C
Fan Size
135mm
Input Voltage
100-240V
Peripheral 4 Pin Connectors
4
Protections
OVP
Protections
OPP
Protections
SCP
Series
V Platinum Series
Protections
UVP
PCI-e 6+2 Pin Connectors
5
Protections
OTP
Protections
OCP
Protections
Surge and Inrush Protection
Dimensions (L x W x H)
160 x 150 x 86 mm
Regulatory
CCC
Regulatory
CE
ATX Version
ATX 12V Ver. 3.1
Regulatory
RCM
Fan Speed
2400±10% RPM
Regulatory
EAC
Regulatory
cTUVus
Regulatory
FCC
Efficiency
≥ 92% @ Typical Load
Regulatory
BSMI
Hold Up Time
≥ 16ms
Regulatory
TUV
Regulatory
UKCA
Regulatory
RoHS2.0 / BIS
Regulatory
KC (based on region’s request.)
Input Current
16-8A
Model
MPZ-G002-AFAP
