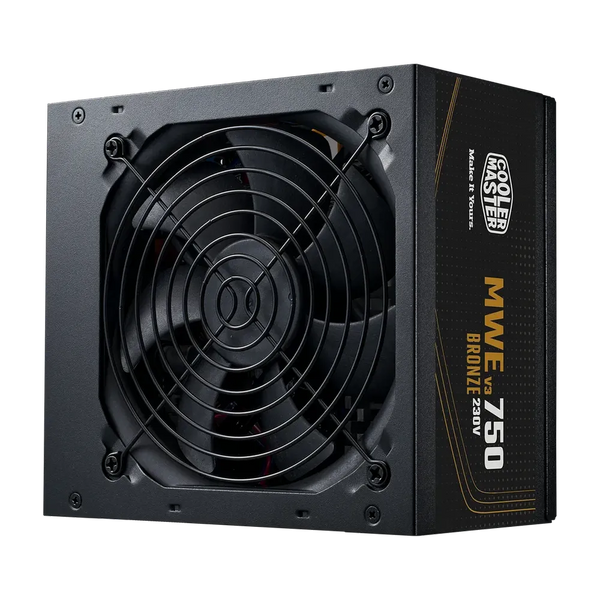

COOLER MASTER MWE V3 750W 80+ Bronze 3.1 Non Modular Power Supply

Product Description

Features of COOLER MASTER MWE V3 750W 80+ Bronze 3.1 Non Modular Power Supply

Introducing the COOLER MASTER MWE V3 750W 80+ Bronze 3.1 Non Modular Power Supply, the evolutionary next step in Cooler Master power and the ATX 3.1 upgrade to our MWE Bronze V2 PSU. With features such as 80 Plus Bronze efficiency, a DC-to-DC + LLC circuit design, and a quiet HDB fan cooling, the V3 provides valuable performance in multiple dimensions. Several changes and additions improve the overall user experience. Together, these design choices deliver an advanced PSU that is highly efficient and reliable. With an embossed cable, exceptional temperature resilience and a 5-year warranty, the MWE Bronze V3 will evolve your machine.
Quiet HDB fan
 A hydrodynamic bearing fan delivers long-lasting quiet and effectivecooling.
80 Plus Bronze efficiency certification
This unit is certified to achieve more than 88% efficiency at typical loads in a 230V test.
High temperature resilience
A 40°C maximum operating temperature allows for pushing your machine to the limits with overclocking and other high-intensity applications.
Embossed cable
An embossed cable texture provides a softer and overall improved grip with a pleasing aesthetic.
ATX 3.1 support
Compliant with ATX 3.1 to fully support a peak power 1.5 times higher than the rated maximum wattage, this unit is ideal for use with the 40 series GPUs.
Single +12V rail
All power comes from a single +12V source, ensuring consistent output through all connected cables.
DC-to-DC technology
The DC-DC circuit design offers reliable, stable output to all connected components.
2 EPS Connectors
Two 4-pin EPS connectors are included for universal compatibility with current- gen motherboards.
5-year warranty
This unit comes with a standard limited manufacturing warranty of 5 years from the date of purchase.

Specifications of COOLER MASTER MWE V3 750W 80+ Bronze 3.1 Non Modular Power Supply


Product Name
MWE Bronze 750 V3 230V
Item Code
MPE-7501-ACABW-3B
ATX Version
ATX 12V Ver. 3.1
PFC
Active PFC
Input Voltage
200 – 240V
Input Current
6A
Input Frequency
50 – 60Hz
Dimensions (L x W x H)
140 x 150 x 86mm
Fan Size
120 mm
Fan Bearing
HDB
Efficiency
≥ 88% @ Typical Load
80 PLUS Rating
80 PLUS Bronze
ErP 2014 Lot 3
Yes
Operating Temperature
0 ~ 40℃
Power Good Signal
100 – 150ms
Hold Up Time
≥ 16ms
MTBF
>100,000 hours @ 25℃ ambient
Protections
UVP / OVP / OPP / OTP / SCP
Regulatory
TUV, CE, FCC, CCC, EAC, RCM, UKCA, RoHS2.0 / BIS,
KC (based on region’s request.)
Net Weight
1.75 kg / 3.8581 lb
Gross Weight
2.15 kg / 4.7421 lb
Package Dimensions
245 x 190 x 110mm (9.65 x 7.48 x 4.33″)
Carton Dimensions
570 x 260 x 215mm (22.44 x 10.24 x 8.46″)
Unit / Carton
5 pcs
Carton / Pallet
32 pcs
