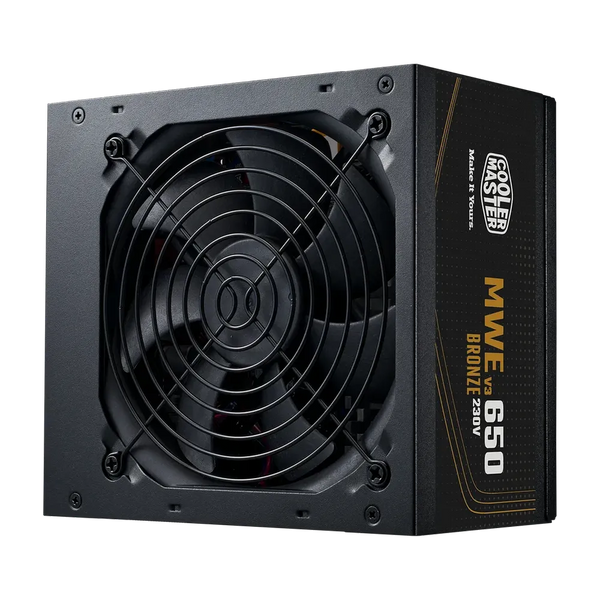

COOLER MASTER MWE 650W V3 80 Plus Bronze Non Modular ATX 3.1 Power Supply

Product Description

Features of COOLER MASTER MWE 650W V3

COOLER MASTER MWE Bronze 650W V3 230V is the upgraded version of the MWEBronze featuring ATX 3.1 support, high temperature resilience, a smart DC-to-DC + LLC circuit design, a quiet HDB fan, 80 Plus Bronze efficiency, an embossed cable, and a 5-year warranty.
ATX 3.1 support
High temperature resilience
Quiet HDB fan
80 Plus Bronze certified efficiency
Embossed cable
5-year warranty
ATX 3.1 SUPPORT
Compliant with ATX 3.1 to fully support a peak power 1.5 times higher than the rated maximum wattage, this unit is ideal for use with the 40 series GPUs.
EMBOSSED CABLE
An embossed cable texture provides a softer and overall improved grip with a pleasing aesthetic.
QUIET HDB FAN
A hydrodynamic bearing fan delivers long- lasting quiet and effective cooling.*Allperformance stats confirmed in 25°C ambient temperature testing.
CERTIFIED EFFICIENCY
The MWE Bronze V3 230V is certified to achieve more than 88% efficiency at typicalloads.
HIGH TEMPERATURE RESILIENCE
A 40°C operating temperature allows for pushing your machine to the limits.

Specifications of COOLER MASTER MWE 650W V3

PFC
Active PFC
Input Frequency
50-60Hz
ErP 2014 Lot 3
Yes
Operating Temperature
0-40°C
ATX 24 Pin Connectors
1
Power Good Signal
100 – 150 ms
Warranty
5 Years
EPS 4+4 Pin Connectors
2
MTBF
>100,000 Hours
Fan Size
120mm
Category
500 to 750W
Modular
Non Modular
Fan Bearing
HDB
80 Plus
Bronze
PCI-e 6+2 Pin Connectors
4
SATA Connectors
6
80 PLUS Rating
80 PLUS Bronze EU 230V
Peripheral 4 Pin Connectors
3
Input Current
5A
Series
MWE Bronze Series
Protections
OVP
Protections
OPP
Protections
SCP
Dimensions (L x W x H)
140 x 150 x 86 mm / 5.5 x 5.9 x 3.4 inch
Protections
UVP
Protections
OTP
Hold Up Time
>16ms
Input Voltage
200-240V
Regulatory
CCC
Regulatory
CE
ATX Version
ATX 12V Ver. 3.1
Regulatory
RCM
Regulatory
EAC
Regulatory
cTUVus
Regulatory
FCC
Efficiency
>88% @ Typical Load
Regulatory
TUV
Regulatory
UKCA
Regulatory
RoHS2.0 / BIS
Regulatory
KC (based on region’s request.)
Model
MPE-6501-ACABW-3B
