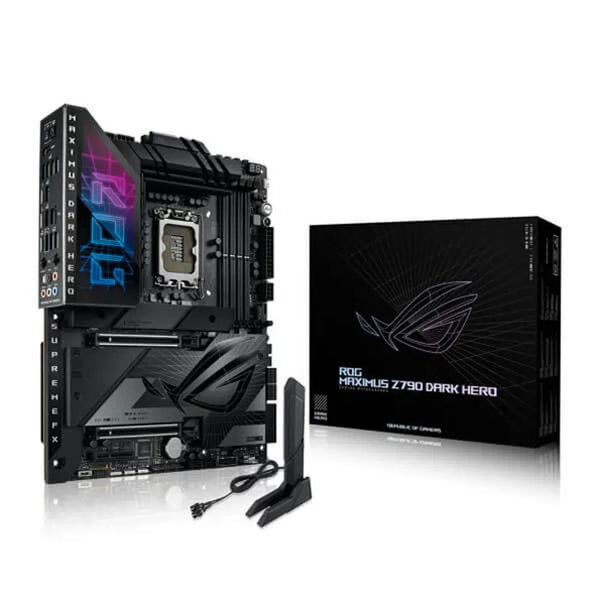

ASUS ROG Maximus Z790 Dark Hero Wifi DDR5 Intel Motherboard

Product Description

Features of ASUS ROG Maximus Z790 Dark Hero

The ASUS ROG Maximus Z790 Dark Hero boasts robust cooling, WiFi 7 and ample PCIe 5.0 slot for unmatched performance, and it offers full compatibility with 14th Gen Intel® Core™ processors. Meanwhile, its stealthy design is accentuated by new Polymo lighting, which illuminates the I/O shroud with a microstructural array of dual-layer RGB and adds a personalized touch of style to your gaming setup.
ROG OVERCLOCKING TECHNOLOGIES
Psyche up and engage the Dark Hero overclocker in you, with onboard intelligence to scan, predict, and adapt CPU performance parameters, and tools to command and track system vitals.
WIFI 7
Next-gen WiFi 7* chipset introduces all-new ultrawide 320 MHz channel bandwidth in the 6 GHz band and 4096 QAM, delivering up to 2.4X ultra-fast WiFi speeds**. The revolutionary Multi-Link Operation (MLO) provides a more stable WiFi connection and lower latency, unlocking the realms of the unknown in gaming, streaming, and industrial IoT.
2.5Gb ETHERNET
Low-latency gaming, speedy file transfers, and high-resolution video streaming are among the many perks of onboard Intel® 2.5 Gbps Ethernet.
M.2 Q-LATCH
The innovative Q-Latch makes it easy to install or remove an M.2 SSD without the need for specific tools. The design employs a simple locking mechanism to secure the drive and neatly eliminate traditional screws.
AI COOLING II
Balance the thermals and acoustics of any build with a single click. A proprietary ASUS algorithm slashes unnecessary noise while running a quick stress test, and then monitors CPU temperatures to dynamically adjust fans to optimal speeds.

Specifications of ASUS ROG Maximus Z790 Dark Hero


Model Name
ROG MAXIMUS Z790 DARK HERO
CPU
Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® ProcessorsSupports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0
Chipset
Intel® Z790 Chipset
Memory
4 x DIMM slots, max. 192GB, DDR58000+(OC)/7800+(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory*”Dual channel memory architectureSupports Intel® Extreme Memory Profile (XMP) memory moduleASUS Enhanced Memory Profile II (AEMP II)Supports DIMM Flex
Graphics
1 x HDMITM port2 x Intel® Thunderbolt™ 4 ports (USB Type-C®) support DisplayPort and Thunderbolt™ video outputs
Expansion Slots
Intel® CoreTM Processors (14th & 13th & 12th Gen)2 x PCIe 5.0 x16 slots (support x16 or x8/x8 modes)Intel® Z790 Chipset1 x PCIe 4.0 x4 slot
Storage
Total supports 5 x M.2 slots and 4 x SATA 6Gb/s portsIntel® CoreTM Processors (14th & 13th & 12th Gen)M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode.)M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode.)Intel® Z790 ChipsetM.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)M.2_4 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)M.2_5 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)4 x SATA 6Gb/s ports
Ethernet
1 x Intel® 2.5Gb EthernetASUS LANGuard
Wireless & Bluetooth®
Intel® Wi-Fi 7*2×2 Wi-Fi 7 (802.11be)**Supports 2.4/5/6GHz frequency band***Support Wi-Fi 7 320MHz bandwidth, up to 5.76Gbps transfer rate.Bluetooth® v5.4***** Compatible with Windows 11 or later.** Wi-Fi 7 MLO(Multi-link Operation) full functions support will be ready in Windows 11 2024 Platform (Windows 11 24H2) or later.*** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.**** The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer’s website for the latest specifications.
USB
Rear USB (Total 12 ports)2 x Thunderbolt™ 4 ports (2 x USB Type-C®)6 x USB 10Gbps ports (5 x Type-A + 1 x USB Type-C®)4 x USB 5Gbps ports (4 x Type-A)Front USB (Total 9 ports)1 x USB 20Gbps connector (supports USB Type-C® with up to 60W PD/QC4+)2 x USB 5Gbps headers support 4 additional USB 5Gbps ports2 x USB 2.0 headers support 4 additional USB 2.0 ports
Audio
ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082*- Impedance sense for front and rear headphone outputs- Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking- High quality 120 dB SNR stereo playback output and 110 dB SNR recording input- Supports up to 32-Bit/384 kHz playback on front panel”Audio Features- SupremeFX Shielding Technology- ESS® ES9218 QUAD DAC- Gold-plated audio jacks- Rear optical S/PDIF out port- Premium audio capacitors
Back Panel I/O Ports
2 x Thunderbolt™ 4 USB Type-C® ports6 x USB 10Gbps ports (5 x Type-A + 1 x USB Type-C®)4 x USB 5Gbps ports (4 x Type-A)1 x HDMITM port1 x Wi-Fi Module1 x Intel® 2.5Gb Ethernet port5 x Gold-plated audio jacks1 x Optical S/PDIF out port1 x BIOS FlashBack™ button 1 x Clear CMOS button
Internal I/O Connectors
Fan and Cooling related1 x 4-pin CPU Fan header1 x 4-pin CPU OPT Fan header1 x 4-pin AIO Pump header4 x 4-pin Chassis Fan headers1 x W_PUMP+ header1 x 2-pin Water In header1 x 2-pin Water Out header1 x 3-pin Water Flow headerPower related1 x 24-pin main power connector2 x 8-pin +12V power connector1 x 8-pin PCIe power connectorStorage related5 x M.2 slots (Key M)4 x SATA 6Gb/s portsUSB1 x USB 20Gbps connector (supports USB Type-C®)2 x USB 5Gbps headers support 4 additional USB 5Gbps ports2 x USB 2.0 headers support 4 additional USB 2.0 portsMiscellaneous3 x Addressable Gen 2 headers1 x AURA RGB header1 x FlexKey button1 x Front panel audio header (F_AUDIO)1 x Start button1 x ReTry button1 x 10-1 pin system panel header1 x Thermal sensor header1 x CPU over voltage jumper1 x Alteration PCIe mode switch
Special Features
Extreme OC Kit- FlexKey button- ReTry button- Start buttonExtreme Engine Digi+- 10K Black metallic capacitors- MicroFine alloy chokeASUS Q-Design- M.2 Q-Latch- PCIe Slot Q-Release- Q-Antenna- Q-Code- Q-Connector- Q-DIMM- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) with DRAM Detection- Q-SlotASUS Thermal Solution- M.2 heatsink backplate- M.2 heatsink- Metal backplate- VRM heatsink designASUS EZ DIY- BIOS FlashBack™ button- Clear CMOS button- CPU Socket lever protector- ProCool II- Pre-mounted I/O shield- SafeSlot- SafeDIMMAURA Sync- AURA RGB header(s)- Addressable Gen 2 header(s)Front Panel USB 20Gbps with Quick Charge 4+ Support- Support: up to 60W fast charging and USB Wattage Watcher*- Output: 5/9/15/20V max. 3A, PPS:3.3–21V max. 3A- Compatible with PD3.0 and PPS
Software Features
ROG Exclusive Software- ROG CPU-Z- DTS® Sound Unbound- Internet Security (1 year full version)ASUS Exclusive SoftwareArmoury Crate- AIDA64 Extreme (1 year full version)- Aura Creator- Aura Sync- Fan Xpert 4 (with AI Cooling II)- GameFirst- Two-Way AI Noise Cancelation- Power Saving- Sonic StudioAI Suite 3- Easy Optimization with AI Overclocking- TPU- DIGI+ Power Control- Turbo app- PC CleanerMyAsusUSB Wattage WatcherIntel® Unison™Adobe Creative Cloud (Free Trial)WinRAR (40 Days Free Trial)UEFI BIOSAI Overclocking GuideASUS EZ DIY- ASUS CrashFree BIOS 3- ASUS EZ Flash 3- ASUS UEFI BIOS EZ Mode- ASUS MyHotkeyMemTest86
BIOS
256 Mb Flash ROM, UEFI AMI BIOS
Manageability
WOL by PME, PXE
Accessories
Cables1 x ARGB RGB extension cable4 x SATA 6Gb/s cablesAdditional Cooling Kit1 x Thermal pad for M.21 x DDR5 fan holderMiscellaneous1 x ASUS WiFi Q-Antenna3 x M.2 backplate Q-Latch packages3 x M.2 backplate Rubber Packages1 x Q-connector1 x ROG stickers1 x ROG key chain1 x M.2 rubber package1 x ROG VIP cardInstallation Media1 x USB drive with utilities and driversDocumentation1 x Quick start guide
Operating System
Windows® 11, Windows® 10 64-bit
Form Factor
ATX Form Factor12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Dimension
Product (mm)_ L*W*H 305mm*244mm*49mmColor Box (mm)_ L*W*H 370mm*312mm*108mm
Weight
Motherboard only 2.425KGFull package 4.070KG
Warranty
3 Years
Note
*** Features, Price, Specifications are subject to change without notice.
