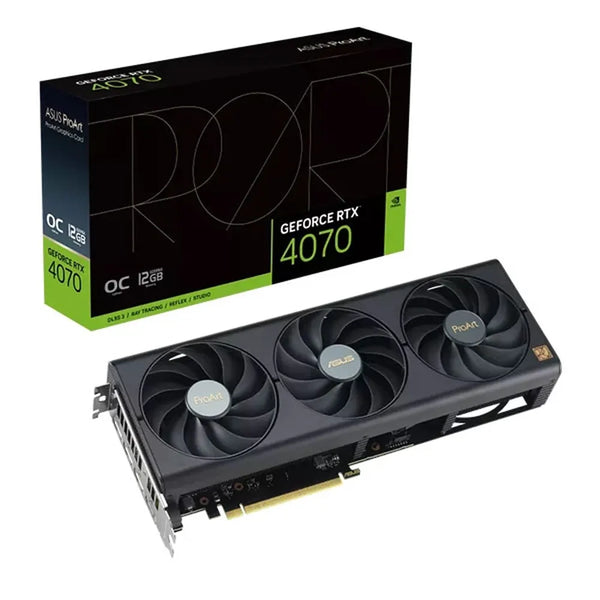

ASUS ProArt GeForce RTX 4070 OC Edition 12GB Nvidia Graphic Card

Product Description

Features of ASUS ProArt GeForce RTX 4070 OC Edition 12GB

NVIDIA Studio: RTX and AI-accelerated creator apps, exclusive AI software, and Studio Drivers for unmatched creativity and performance
NVIDIA Ada Lovelace Streaming Multiprocessors: Up to 2x performance and power efficiency
4th Generation Tensor Cores: Up to 4x performance with DLSS 3 vs. brute-force rendering
3rd Generation RT Cores: Up to 2x ray tracing performance
OC mode: 2565 MHz (OC mode)/ 2535 MHz (Default mode)
Axial-tech fans scaled up for 21% more airflow
2.5-slot design: allows for greater build compatibility while maintaining premium cooling
Dual Ball Fan Bearings last up to twice as long as conventional designs
Auto-Extreme precision automated manufacturing for higher reliability
GPU Tweak III profile Connect enables creators to seamlessly optimize system performance and cooling for every app
Compact. Creative. Power.
Blur the lines between imagination, the digital world, and reality. The ProArt GeForce RTX™ 4070 packs the venerable Ada Lovelace architecture and potent cooling into a 2.5-slot frame, bringing immense creative power to compact builds and full-scale workstations.
Axial-tech Upgrades
A Fresh Spin
Bigger and better. Axial-tech fans spin on dual-ball bearings and have been scaled up to propel 21% more air through the card, setting the stage for lower temperatures, less noise, and higher performance.
Reverse Rotation and 0dB Technology
Orchestrated Chill
The two side fans spin counterclockwise to minimize turbulence and maximize air dispersion through the heatsink. All three fans come to a standstill when GPU temps are below 50 Celsius, letting you play less-demanding games or perform light tasks in relative silence. Fans start up again when temps are over 55 C, referencing a speed curve that balances performance and acoustics for work or play.
2.5-slot Design
Custom Heatsink
Heatpipes efficiently wick heat into a fin stack optimized for airflow from the Axial-tech fans. The entire array is dressed in stealthy black to match the ProArt theme.
Premium Power Delivery
1st Responder
Digital power control, an array of high-current power stages, and a lineup of 15K caps ensure massive reserves to reliably push performance boundaries.
Compact PCB
Packs a Punch
Component and trace layouts have been optimized onto a short PCB to reduce power losses and let heat escape through a massive backplate vent.

Specifications of ASUS ProArt GeForce RTX 4070 OC Edition 12GB


Model
ASUS ProArt GeForce RTX 4070 OC Edition 12GB
Graphic Engine
NVIDIA® GeForce RTX™ 4070
Bus Standard
PCI Express 4.0
Open GL
OpenGL®4.6
Video Memory
12GB GDDR6X
Engine Clock
OC mode: 2565MHzDefault mode: 2535MHz (Boost)
Cuda Core
5888
Memory Speed
21 Gbps
Memory Interface
192 Bit
Resolution
Digital Max Resolution 7680 x 4320
Interface
Yes x 1 (Native HDMI 2.1)Yes x 3 (Native DisplayPort 1.4a)HDCP Support Yes (2.3)
Maximum Display Support
4
NVlink/ Crossfire Support
No
Accessories
1 x Collection Card1 x Speedsetup Manual1 x ASUS Velcro Hook & Loop1 x Thank you Card
Software
ASUS GPU Tweak III & GeForce Game Ready Driver & Studio Driver: please download all software from the support site.
Dimensions
300 x 120 x 50 mm11.81 x 4.72 x 1.97 inches
Recommended PSU
650W
Power Connectors
1 x 8-pin
Slot
2.5 Slot
Warranty
3 Years
Note**
**Prices, Specifications & Features are subject to change without notice
