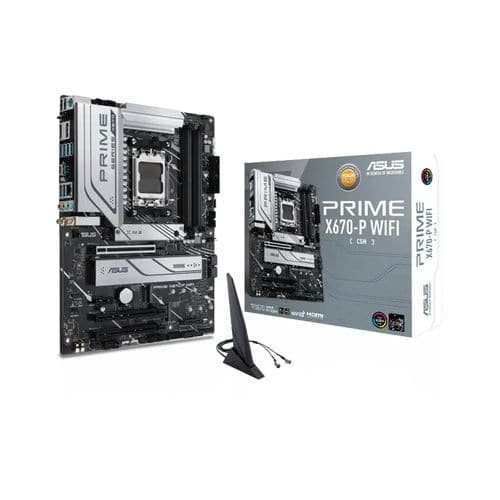

ASUS Prime X670-P Wifi CSM DDR5 AMD Motherboard

Product Description

Features of ASUS Prime X670-P Wifi CSM DDR5 AMD Motherboard

ASUS Prime series motherboards are expertly engineered to unleash the full potential of AMD Ryzen 7000-series processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, ASUS Prime X670-P Wifi CSM provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features.
ASUS Corporate Stable Model
ASUS Corporate Stable Model (CSM) is a commercial program designed to provide stable and reliable motherboards. Offering up to 36-month product lifecycle support and 6-month end-of-life notice to allow sufficient lead times for your organization to get ready for product transitions. Each purchase of an ASUS CSM motherboard comes with ASUS Control Center Express – server-grade IT management software.
ASUS Control Center Express
ASUS Control Center Express is an integrated IT monitoring and management software designed to deploy faster, simplify IT operations and improve productivity with comprehensive control and user-friendly functions. ASUS Control Center Express is compatible with over 100 ASUS motherboards to provide a high-quality, TCO-optimized solution for your business needs.
Optimize IT endpoint management
Designed to assist IT staff in monitoring and controlling devices within their corporate networks, and facilitate inventory checking in multiple locations remotely
Automate IT maintenance
Allows IT staff to schedule automatic updates of the latest BIOS, software and utilities to specific or all devices at off-peak times, enhancing system stability and IT operational flexibility
Securely manage all of endpoints
Securely manage endpoint configuration, portable storage access and PC software applications by enabling them to create grouping rules on individual devices
Flexibility
Comprehensive controls form the foundation of the ASUS PRIME series. The PRIME X670 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity.
Intelligent Control
CPU Performance BoostAMD Precision Boost Overdrive(PBO) pushes the CPU current and voltage budget to opportunistically increase performance. By aggressively tuning the PBO parameters, AMD‘s algorithm can leverage the motherboard’s robust power solution to ramp up performance even higher.
All-Around Energy EfficiencyThe Power Saving function contains several settings can easily optimize power consumption and maximize energy savings. You can enable a CPU power limit, darken Aura lighting, and set the fan profile to a power saving mode. You can also toggle the Power Saver plan that is built into Microsoft Windows.
Flexible Air- and Liquid-Cooling ControlsASUS Fan Xpert 4 software provides comprehensive control over fans and all-in-one (AIO) coolers. Whether cooling with air or water, an Auto-Tuning mode intelligently configures all parameters with a single click. There’s also an Extreme Quiet mode that reduces all fan speeds to below the default minimum to keep your system whisper-quiet when performing light tasks. Fans and AIO coolers can also be controlled via the UEFI BIOS.
Precise Digital Power ControlThe Digi+ voltage-regulator module (VRM) delivers real-time control over voltage droop, automatically switching frequency and power-efficiency settings. It also allows you to fine-tune your CPU for ultimate stability and performance.
AI Cooling ll
AI Cooling II balances the thermals and acoustics of any build with a single click. A proprietary ASUS algorithm slashes unnecessary noise while running a quick stress test, and then it monitors CPU temperatures to dynamically adjust fans to optimal speeds.
UEFI BIOS
The renowned ASUS UEFI BIOS provides everything you need to configure, tweak and tune your system. It offers intelligently simplified options for PC DIY beginners, as well as comprehensive features for seasoned veterans.background_decoration
COOLING
PRIME X670 series is engineered with multiple onboard heatsinks and an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads.
M.2 Heatsink
An M.2 heatsink takes care of the M.2 slot, warding off throttling that can occur with M.2 storage during sustained transfers.
Passive Chipset Heatsink
An aluminum passive chipset heatsink ensures optimal cooling for more stable performance. The passive heatsink approach is more durable and longer-lasting, avoiding dust and dirt build-up problems often encountered by conventional active heatsinks with dedicated fan designs.
Cooler by Design
PRIME X670 series features comprehensive cooling controls that are configurable via Fan Xpert 4 software or via the UEFI BIOS.
Multiple Temperature Sources
Each header can dynamically reference four thermal sensors. Fan Xpert 4 allows you to map the temperature of supported ASUS graphics cards to optimize cooling for GPU- and CPU-intensive tasks.
AIO Pump Header
A dedicated PWM/DC header for self-contained water-cooling setups.
Smart Protection
A dedicated integrated circuit protects each fan header from overheating and overcurrent.
4-Pin PWM/DC Fan
Each onboard header supports auto-detection of PWM or DC fans.
PERFORMANCE
The PRIME X670 series is built to handle the high core counts and bandwidth demands of AMD processors. ASUS X670 motherboard provides all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling, and flexible data transfer options.
Robust Power Design
Stable power is essential to extract every last bit of performance out of AMD processors. The PRIME X670-P WIFI-CSM is geared to cater to the demands of these high-core-count CPUs.
ProCool ConnectorsProprietary connectors augment the motherboard’s link to the PSU with 4-pin+8-pin connectors that pass 12 volts of power directly to the processors. Each jack features solid pins that can handle more current than hollow-pin connectors.
12+2 DrMOS Power Stages12+2 DrMOS power stages combine high-side and low-side MOSFETS and drivers into packages rated for 60 amperes each, delivering power, efficiency, stability and performance to current and future AMD processors.
Six-Layer PCB DesignMultiple PCB layers optimize heat management for critical components, providing more headroom to push CPUs beyond stock speeds.
DDR5 Performance Enhancement
Comprehensive memory tuning options are the cornerstone of PRIME motherboards. With the PRIME X670-P WIFI-CSM, you can extract all of the potential out of your DDR5 modules, whether they’re from an extreme-speed kit or an entry-level set that would otherwise be locked.
ASUS OptiMem II
Revisions to the motherboard’s trace routing provide the latest Intel processors with unrestricted access to memory bandwidth. ASUS OptiMem II technology carefully maps memory signal pathways across different PCB layers to reduce vias and adds shielding zones that significantly reduce crosstalk.
PCIe 5.0 M.2 Support
PRIME X670-P WIFI-CSM offers a total of three M.2 slots, the first one supports data-transfer speeds of up to 128Gbps via PCIe 5.0, enabling quicker boot-up and app load times with OS or application drives.
PCIe 4.0 Slot
Prime X670 motherboards offer PCIe 4.0 Slot connectivity for the latest GPUs. The wide bandwidth and superfast transmission speeds allow you to create feature-rich builds that can handle high loads effortlessly.
USB 3.2 Gen 2×2 Type-C®
A batch of USB ports supports high-end rigs loaded with peripherals, including a rear USB Type-C® connector with ultrafast USB 3.2 Gen 2×2 for transmission speeds of up to 20Gbps.
Front USB Type-C®
A full complement of USB ports supports high-end rigs loaded with peripherals, including a front-panel USB 3.2 Gen 1 Type-C® connector that provides data transfer speeds of up to 5Gbps.
USB4® Support
PRIME X670 motherboard features USB4® support via a Thunderbolt™ (USB4®) header. With an ASUS add-on card*, PRIME motherboards can enable bi-directional speeds of up to 40 Gbps on a single cable, while providing power to fast-charge devices. Additionally, this card has a daisy-chain function for multi-screen connection and supports up to dual displays with 4K resolution.
WiFi 6
The WiFi 6 module is compatible with the 802.11ax standard and pushes theoretical peak bandwidth up to an incredible 1.2Gbps. Perhaps more importantly for power users, it’s optimized for more efficient operation on crowded networks with a lot of competing traffic. Pair your motherboard with ASUS WiFi 6 routers to fully experience the networking potential of WiFi 6
Realtek 2.5 Gb Ethernet
Realtek 2.5 Gb Ethernet reduces CPU overhead and offers exceptionally high TCP and UDP throughput for faster, smoother data transfers.
LANGuard
ASUS LANGuard is a hardware-level network protection feature that integrates advanced signal-coupling technology and premium anti-EMI surface-mounted capacitors to improve throughput and ensure a more reliable connection.
Outstanding Audio
Combined onboard features deliver elevated audio
Intelligent design and premium hardware create audio quality, unlike anything you’ve ever experienced.
Audio Shielding
Audio shielding ensures precision analog/digital separation and greatly reduced multi-lateral interference.
Dedicated Audio PCB Layers
Separate layers for left and right tracks ensure both channels deliver consistent, equal quality.
Premium Audio Capacitors
Provides warm, natural, and immersive sound with exceptional clarity and fidelity.
Aura Sync Outshine the Competition
A well-tuned enthusiast system deserves a matching aesthetic. ASUS Aura offers full RGB lighting control with a variety of functional presets for the built-in RGB LEDs as well as strips and devices connected to the onboard RGB headers — and it can all be synced with an ever-growing portfolio of Aura-capable hardware.
Addressable Gen 2 Headers
Three addressable Gen 2 headers are capable of detecting the number of LEDs on second-gen addressable RGB devices, allowing the software to automatically tailor lighting effects to specific devices. The new headers also offer backward compatibility with existing Aura RGB gear.
Armoury Crate
Within a single intuitive interface, Armoury Crate offers easily customized Aura Sync RGB settings for every compatible device in your arsenal, plus controls for an ever-growing family of ASUS products, including keyboard and mouse preferences. Armoury Crate also integrates product registration and a news feed so that you never miss updates of interest to the ASUS community.

Specifications of ASUS Prime X670-P Wifi CSM DDR5 AMD Motherboard


CPU
AMD Socket AM5 for AMD Ryzen™ 7000 Series Desktop Processors** Refer to www.asus.com for CPU support list.
Chipset
AMD X670
Memory
4 x DIMM, Max. 128GB, DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800, ECC and Non-ECC, Un-buffered Memory*Dual Channel Memory ArchitectureSupports AMD Extended Profiles for Overclocking (EXPO™)OptiMem II* Supported memory types, data rate(Speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.* Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function.
Graphics
1 x DisplayPort**1 x HDMI® port**** Graphics specifications may vary between CPU types.** Supports max. 8K@60Hz as specified in DisplayPort 1.4.*** Supports 4K@60Hz as specified in HDMI® 2.1.
Expansion Slots
AMD Ryzen™ 7000 Series Desktop Processors1 x PCIe 4.0 x16 slot (supports x16 mode)AMD X670 Chipset2 x PCIe 4.0 x16 slots (support x4 mode)1 x PCIe 3.0 x1 slot*** Please check the PCIe bifurcation table at https://www.asus.com/support/FAQ/1037507/.** The PCIe 3.0 x1 slot shares bandwidth with the SATA6G_3/4 ports. When a device is installed on the PCIe 3.0 x1 slot, the SATA6G_3/4 ports cannot be used.
Storage
Total supports 3 x M.2 slots and 6 x SATA 6Gb/s ports*AMD Ryzen™ 7000 Series Desktop ProcessorsM.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)AMD X670 ChipsetM.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)6 x SATA 6Gb/s ports*** AMD RAIDXpert2 Technology supports both NVMe RAID 0/1/10 and SATA RAID 0/1/10.** The PCIe 3.0 x1 slot shares bandwidth with the SATA6G_3/4 ports. When a device is installed on the PCIe 3.0 x1 slot, the SATA6G_3/4 ports cannot be used.
LAN
1 x Realtek 2.5Gb Ethernet
Wireless & Bluetooth
Wi-Fi 62×2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)Supports 2.4/5GHz frequency bandBluetooth v5.2
Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC*- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking- Supports up to 24-Bit/192 kHz playbackAudio Features- Audio Shielding- Premium audio capacitors- Dedicated audio PCB layers* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
USB
Rear USB (Total 10 ports)1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®)3 x USB 3.2 Gen 2 ports (3 x Type-A)4 x USB 3.2 Gen 1 ports (4 x Type-A)2 x USB 2.0 ports (2 x Type-A)Front USB (Total 9 ports)1 x USB 3.2 Gen 1 connector (supports USB Type-C®)2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports2 x USB 2.0 headers support additional 4 USB 2.0 ports
Operating System Support
Windows® 11 64-bit, Windows 10 64-bit
Special Features
ASUS 5X PROTECTION III- DIGI+ VRM (- Digital power design with DrMOS)- ESD Guards- LANGuard- Overvoltage Protection- Safeslot Core+- Stainless-Steel Back I/OASUS Q-Design- M.2 Q-Latch- Q-DIMM- Q-LED Core- Q-SlotASUS Thermal Solution- M.2 heatsink- VRM heatsink designASUS EZ DIY- BIOS FlashBack™ button- BIOS FlashBack™ LED- ProCoolAura Sync- Aura RGB headers- Addressable Gen 2 headers
Software Features
ASUS Exclusive SoftwareArmoury Crate- Aura Creator- Aura Sync- Fan Xpert 4 with AI Cooling II- Power SavingAI Suite 3- TurboV EVO- DIGI+ VRM- PC CleanerASUS CPU-ZIT Management software supported- ASUS Control Center Express(ACCE)Norton Anti-virus software (Free Trial version)WinRARUEFI BIOSASUS EZ DIY- ASUS CrashFree BIOS 3- ASUS EZ Flash 3- ASUS UEFI BIOS EZ Mode
Back I/O Ports
1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®)3 x USB 3.2 Gen 2 ports (3 x Type-A)4 x USB 3.2 Gen 1 ports (4 x Type-A)2 x USB 2.0 ports (2 x Type-A)1 x DisplayPort1 x HDMI® port1 x Wi-Fi Module1 x Realtek 2.5Gb Ethernet port3 x Audio jacks1 x BIOS FlashBack™ button1 x PS/2 Keyboard/Mouse combo port
Internal I/O Ports
Fan and Cooling related1 x 4-pin CPU Fan header1 x 4-pin CPU OPT Fan header1 x 4-pin AIO Pump header3 x 4-pin Chassis Fan headersPower related1 x 24-pin Main Power connector1 x 8-pin +12V Power connector1 x 4-pin +12V Power connectorStorage related3 x M.2 slots (Key M)6 x SATA 6Gb/s portsUSB1 x USB 3.2 Gen 1 connector (supports USB Type-C®)2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports2 x USB 2.0 headers support additional 4 USB 2.0 portsMiscellaneous3 x Addressable Gen 2 headers2 x Aura RGB headers1 x Clear CMOS header1 x COM Port header1 x Front Panel Audio header (AAFP)1 x S/PDIF Out header1 x SPI TPM header (14-1pin)1 x 20-5 pin System Panel header1 x Thunderbolt™ (USB4®) header
Accessories
Cables2 x SATA 6Gb/s cablesMiscellaneous1 x I/O Shield1 x Rubber Package for M.22 x Screw Packages for M.2 SSDDocumentation1 x ACC Express Activation Key Card1 x User guide
BIOS
256 Mb Flash ROM, UEFI AMI BIOS
Manageability
WOL by PME, PXE
Form Factor
ATX Form Factor12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Warranty
3 Years
Note*
Price, feature and specifications are subject to change without notice.
