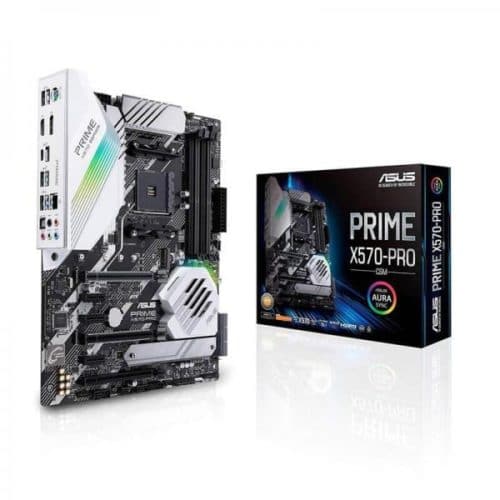

ASUS Prime X570-Pro/CSM DDR5 AMD Motherboard

Product Description

Feature of ASUS Prime X570-Pro/CSM DDR5

AMD AM4 ATX motherboard with PCIe 4.0, 14 DrMOS power stages, dual M.2, HDMI, SATA 6Gb/s, USB 3.2 Gen 2 front-panel connector and Aura Sync RGB lighting
AMD AM4 Socket: X570-PRO/CSM Ready for 3rd and 2nd Gen AMD Ryzen™ processors
ASUS Corporate Stable Model (CSM): A commercial program offers up to 36-month product lifecycle and 6-month EOL notice for product transitions
ASUS Control Center Express: A centralized server-grade management software for asset management, software deployment and monitoring and mobile control
ASUS Prime X570-Pro/CSM DDR5 Enhanced power solution: 12+2 DrMOS power stages, ProCool connectors, alloy chokes and durable capacitors for stable power delivery
5-Way Optimization: One-click, system-wide tuning delivers optimized overclocks and intelligent cooling for CPU or GPU-intensive tasks
Industry-leading cooling options: Comprehensive controls for fans and dual pump headers, via Fan Xpert 4 or the acclaimed UEFI
M.2 heatsink: Ultra-efficient heatsink reduces M.2 SSD temperature for unthrottled transfer speeds and enhanced reliability
Next-gen connectivity: Supreme flexibility with PCIe 4.0, dual M.2, USB 3.2 Gen 2 ports and front-panel header
PRIME
Dressed in a professional attire, the Prime X570 series cater to users with serious pursuits in mind, who prefer to put their Ryzen™ processors to more productive use. Prime X570, known for its all-around specs and ASUS signature features, includes a wide range of tuning options for accessible performance.
ASUS Corporate Stable Model
ASUS Corporate Stable Model (CSM) is a commercial program designed to provide stable and reliable motherboards. Offering up to 36-month product lifecycle support and 6-month end-of-life notice to allow sufficient lead times for your organization to get ready for product transitions. Each purchase of an ASUS CSM motherboard comes with ASUS Control Center Express – server-grade IT management software.
ASUS Control Center Express
One-minute installation
ASUS Control Center Express is centralized server-grade management software that takes just one minute to install and is designed to reduce IT operations costs and improve efficiency. This powerful tool enables IT administrators to manage and control multiple clients in different locations remotely and includes features such as asset management, software deployment and monitoring. It also lets IT staff visualize deployments, facilitating real-time control.
Power delivery enhancements
The 3rd Gen AMD Ryzen™ processors boast more cores and bandwidth, demanding more power than typical desktop CPUs. Prime X570-Pro/CSM is geared up for the demands of these high-core-count processors, offering a stable power to ensure optimal performance.
5-Way Optimization
One-click overclock and cooling, done!
One click takes care of all that complex tuning. ASUS 5-Way Optimization makes your PC smart. It dynamically optimizes essential aspects of the system, providing overclocking and cooling profiles that are tailored for your rig.
An automated tuning utility that optimizes overclocking and cooling profiles for your unique system configuration.
Fans stay whisper-quiet for everyday computing, and deliver optimal airflow when the system is crunching through CPU or GPU-intensive tasks.
Stress test function helps optimize and overclock for CPU- or memory-centric workloads.
Media-acclaimed UEFI BIOS
The UEFI BIOS is an early waypoint on any PC-building journey, and Prime X570-Pro/CSM offers one of the best in the business.
Armoury Crate
Armoury Crate is a new software utility designed to give you centralized control of supported products. From a single intuitive interface, Armoury Crate allows you easily customize RGB lighting and effects for every compatible device in your arsenal. The software also provides control of settings for ASUS product, including keyboard and mouse preferences. Armoury Crate even features dedicated product registration and highlight to help you stay in touch with the ASUS community.
Aura Sync
Outshine the competition
A well-tuned enthusiast system deserves a matching aesthetic. ASUS Aura offers full RGB lighting control with a variety of functional presets for the built-in RGB LEDs as well as strips connected to the onboard RGB headers.* And it can all be synced with an ever-growing portfolio of Aura-capable ASUS hardware.
Addressable Gen 2 RGB header
Prime X570-Pro/CSM’s Addressable Gen 2 RGB header is now capable of detecting the number of LEDs on second-gen addressable RGB devices, allowing the software to automatically tailor lighting effects to specific devices. The new headers also offer backward-compatibility with existing Aura RGB gear.

Specifications of ASUS Prime X570-Pro/CSM DDR5


CPU
AMD AM4 Socket 3rd and 2nd AMD Ryzen™/2nd and 1stGen AMD Ryzen™ with Radeon™ VegaGraphics Processors
Chipset
AMD X570
Memory
3rd Gen AMD Ryzen™ Processors4
x DIMM, Max. 128GB, DDR44400(O.C)/4266(O.C.)/4133
(O.C.)/4000(O.C.)/3866(O.C.)
/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400
(O.C.)/3200/3000/2933/2800/2666/2400/2133 MHz Un-buffered Memory2nd Gen AMD Ryzen™
Processors4 x DIMM, Max. 128GB, DDR43600(O.C.)/3466(O.C.)/3400
(O.C.)/3200(O.C.)/3000(O.C.)/2933/2800/2666/2400/2133 MHz Un-buffered Memory2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega GraphicsProcessors4 x DIMM, Max.
128GB, DDR4 3200(O.C.)/3000
(O.C.)/2933/2800/2666/2400/2133 MHz
Un-buffered MemoryDual Channel Memory
ArchitectureECC Memory
(ECC mode) support varies by CPU.The maximum memory
capacity supported vary dependingon the CPU you installed.
Graphic
Integrated Graphics in
the 2nd and 1st Gen
AMD Ryzen™ withRadeon™ Vega Graphics
ProcessorsMulti-VGA output support : HDMI/DisplayPort portsSupports HDMI 2.0b
with maximum resolutionof 4096 x 2160
@ 60 Hz Supports
DisplayPort 1.2 with max.
resolution4096 x 2160 @ 60 Hz
Multi-GPU Support
3rd and 2nd Gen AMD
Ryzen™ ProcessorsSupports NVIDIA®
2-Way SLI® TechnologySupports AMD 3-Way CrossFireX™ Technology2nd and 1st Gen AMD Ryzen™ with Radeon™ VegaGraphics ProcessorsSupports AMD 2-Way CrossFireX™ Technology
Expansion Slots
3rd Gen AMD Ryzen™ Processors2 x PCIe 4.0 x16 (x16 or dual x8)2nd Gen AMD Ryzen™ Processors2 x PCIe 3.0 x16 (x16 or dual x8)2nd and 1st Gen AMD Ryzen™ with Radeon™ VegaGraphics Processors1 x PCIe 3.0 x16 (x8 mode)AMD X570 chipset1 x PCIe 4.0 x16 (max at x4 mode)3 x PCIe 4.0 x1
Storage
3rd Gen AMD Ryzen™ Processors :1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support2nd Gen AMD Ryzen™/2nd and 1st Gen AMD Ryzen™ withRadeon™ Vega Graphics Processors :1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 3.0 x4 and SATA modes) storage devices supportAMD X570 chipset :1 x M.2_2 socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support6 x SATA 6Gb/s port(s)Support Raid 0, 1, 10
LAN
Intel® I211-ATASUS LAN Guard
Audio
Realtek® S1220A 8-Channel
High Definition Audio CODECfeaturing Crystal Sound 3Impedance sense for
front and rear headphone
outputsInternal audio
Amplifier to enhance the highest qualitysound for headphone and speakersSupports : Jack-detection, Multi-streaming, Front PanelJack-retaskingHigh quality 120 dB SNR stereo playback output and113 dB SNR recording input (Line-in)Front panel audio connector (AAFP)Supports up to 32-Bit/192kHz playback *Audio Feature :Optical S/PDIF out port(s) at back panelAudio Shielding: Ensures precision analog/digitalseparation and greatly reduced
multi-lateral interferenceDedicated audio PCB layers:
Separate layers for left andright channels to guard the
quality of the sensitive audio signalsPremium Japanese-made audio
capacitors: Provide warm,natural and immersive sound with exceptional clarity and fidelityEMI protection cover to prevent
electrical noise to affect theamplifier qualityDue to limitations in HDA bandwidth,
32-Bit/192kHz isnot supported for 8-Channel audio.
USB Ports
3rd and 2nd Gen AMD
Ryzen™/2nd and 1st Gen AMD Ryzen™with Radeon™
Vega Graphics Processors :4 x USB 3.2 Gen 1 port(s)
(4 at back panel, blue, Type-A)AMD X570 chipset :1 x USB 3.2
Gen 2 front panel connector
port(s)AMD X570 chipset :4 x USB 3.2 Gen 2 port(s)
(4 at back panel, teal blue, 3 xType-A 1 x Type-C)AMD X570 chipset :2 x USB 3.2 Gen
1 port(s) (2 at mid-board)AMD X570 chipset :4 x USB 2.0 port(s)
(4 at mid-board)
Special Features
5-Way Optimization by
Dual Intelligent Processors 55-Way Optimization
tuning key perfectly consolidates TPU Insight, EPU
Guidance,DIGI VRM, Fan Expert 4,
and Turbo AppDIGI VRM:
Digital power design with Dr. MOSEPU GuidanceTPU InsightFan Xpert4Fan Xpert 4 featuring
Fan Auto Tuning function and multiple thermistors selectionfor optimized system cooling controlTurbo App:
system performance tuning,
network priority, and audio scene configurationfor selected applications.ASUS 5X Protection III :ASUS SafeSlot Core:
Fortified PCIe Slot prevents damageASUS LANGuard:
Protects against LAN surges, lightning strikes and static-electricitydischarges!ASUS Overvoltage Protection:
World-class circuit-protecting power designASUS Stainless-Steel Back I/O:
3X corrosion-resistance for greater durability!ASUS DIGI VRM – Digital power design with Dr. MOSASUS Enhanced DRAM Overcurrent Protection – Short circuit damage preventionASUS ESD Guards – Enhanced ESD protectionASUS SafeSlot – Protect your graphics card InvestmentASUS OptiMem：Improved DDR4 StabilityAURA :Aura Lighting ControlAura RGB Strip HeadersAddressable Gen 2 HeaderASUS Exclusive Features :AI Suite 3Ai ChargerTurbo LANArmoury CratePre-mounted I/O ShieldASUS Quiet Thermal Solution :Stylish Design: MOS Heat-sink with dual thermal pads design, PCH Fan, PCH andM.2 Heatsink-ASUS Fan Xpert 4ASUS EZ DIY :ASUS CrashFree BIOS 3ASUS EZ Flash 3ASUS UEFI BIOS EZ ModeASUS Q-Design :ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)ASUS Q-SlotASUS Q-DIMMASUS Q-Connector
Back I/O Ports
1 x PS/2 keyboard/mouse combo port(s)1 x DisplayPort1 x HDMI1 x LAN (RJ45) port(s)1 x Optical S/PDIF out5 x Audio jack(s)4 x USB 3.2 Gen 1 (up to 5Gbps) ports Type-A3 x USB 3.2 Gen 2 (up to 10Gbps) ports (Type-A)1 x USB 3.2 Gen 2 (up to 10Gbps) ports (Type-C)
Internal I/O Ports
2 x Aura RGB Strip Headers1 x Addressable Gen 2 header(s)2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)2 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storagedevices support (SATA mode & PCIE mode)1 x SPI TPM header1 x COM port(s) connector(s)6 x SATA 6Gb/s connector(s)1 x CPU Fan connector(s) (1 x 4 -pin)1 x CPU OPT Fan connector(s) (1 x 4 -pin)3 x Chassis Fan connector(s) (3 x 4 -pin)1 x PCH_FAN (1 x 4 -pin)1 x AIO_PUMP connector (1 x 4 -pin)1 x 24-pin EATX Power connector(s)1 x 8-pin ATX 12V Power connector(s)1 x 4-pin ATX 12V Power connector(s)1 x Front panel audio connector(s) (AAFP)1 x System panel(s)1 x Power-on button(s)1 x Clear CMOS jumper(s)1 x Node Connector(s)1 x Water Pump header (4-pin)1 x T_Sensor Connector1 x USB 3.2 Gen 2 (up to 10Gbps) connector1 x USB 3.2 Gen 1 (up to 5Gbps) connector support additional2 USB ports
BIOS
256 Mb Flash ROM,
UEFI AMI BIOS, PnP, SM BIOS 3.2, ACPI 6.2,Multi-language BIOS,
ASUS EZ Flash 3,
CrashFree BIOS 3,F11 EZ Tuning Wizard,
F6 Qfan Control, F3 My Favorites,Last Modified log,
F12 PrintScreen,F4 AURA ON/OFF,F9 Search and ASUS DRAM SPD
(Serial Presence Detect)memory information
Operating System
Windows® 10 64-bit
Form Factor
12.0 inch x 9.6 inch ( 30.5 cm x 24.4 cm)
Warranty
3 Years
Note
Features, Price and Specifications are subject to changewithout notice.
