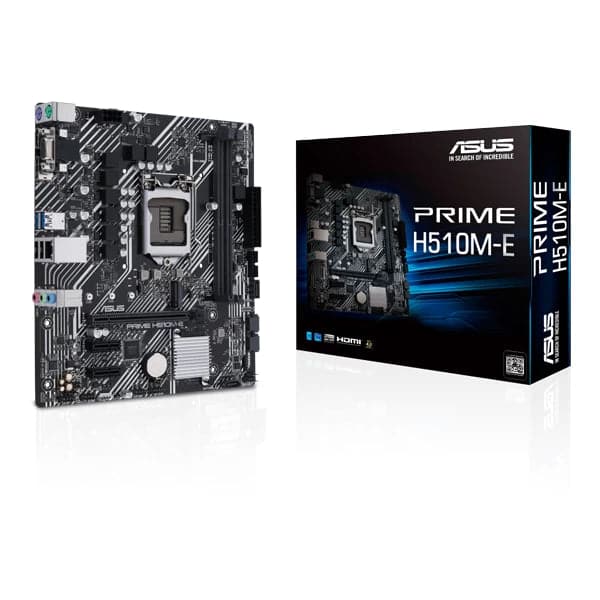

ASUS Prime H510M-E DDR4 Intel Motherboard

Name: ASUS Prime H510M-E DDR4 Intel Motherboard
SKU: 11113
Availability: InStock

0 customer reviews

Sold: 0

Current price is: ₹6,149.00. Original price was: ₹14,000.00.

Buy Now

Add to cart

Categories: By Selections DDR4 Motherboard H510 Motherboard Intel Motherboards Tags: Intel Motherboard Motherboards

Product Description

Overview of ASUS Prime H510M-E DDR4

The ASUS Prime H510M-E DDR4 motherboard is designed for 10th and 11th Generation Intel® processors, providing a robust, flexible platform for daily users and DIY PC builders. It features advanced connectivity options, comprehensive cooling solutions, and intuitive tuning options.

Key Features

Socket Compatibility: Intel® LGA 1200 socket ready for 11th and 10th Gen Intel® processors.
Ultrafast Connectivity: Equipped with PCIe 4.0, a 32Gbps M.2 slot, Intel® 1 Gb Ethernet, and USB 3.2 Gen 1 Type-A ports.
Comprehensive Cooling: Features a PCH heatsink and configurable cooling options via Fan Xpert.
5X Protection III: Multiple hardware safeguards for comprehensive protection.
Advanced UEFI BIOS: Offers both EZ mode for beginners and Advanced mode for seasoned users for system tuning and configuration.
Armoury Crate: Centralized control software for managing ASUS devices and settings.

Specifications Table

Specification	Details
Model	ASUS Prime H510M-E DDR4
CPU Socket	Intel® LGA1200 for 11th Gen Intel® Core™ & 10th Gen Intel® Core™, Pentium® Gold, and Celeron® processors
Chipset	H510
Memory Support	2 x DIMM, Max. 64GB, DDR4 3200(OC)/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered
Graphics Outputs	1 x DisplayPort, 1 x D-Sub, 1 x HDMI 2.0
Expansion Slots	1 x PCIe 4.0/3.0 x16 (11th Gen: PCIe 4.0 x16, 10th Gen: PCIe 3.0 x16), 2 x PCIe 3.0 x1
Storage Options	1 x M.2 slot (supports PCIe 3.0 x4 & SATA) and 4 x SATA 6Gb/s ports
Ethernet	1 x Intel® I219-V 1Gb Ethernet
USB Ports	Rear: 2 x USB 3.2 Gen 1, 2 x USB 2.0; Front: 1 x USB 3.2 Gen 1 header (supports 2 additional USB 3.2 Gen 1), 2 x USB 2.0 headers (supports 4 additional USB 2.0 ports)
Audio	Realtek ALC897/887 7.1 Surround Sound High Definition Audio CODEC, supports up to 24-Bit/192 kHz playback
Back Panel I/O Ports	2 x USB 3.2 Gen 1, 2 x USB 2.0, 1 x DisplayPort, 1 x D-Sub, 1 x HDMI™, 1 x Intel® I219-V 1Gb Ethernet, 3 x Audio jacks, 1 x PS/2 Keyboard, 1 x PS/2 Mouse
Internal I/O Connectors	1 x 4-pin CPU Fan header, 1 x 4-pin Chassis Fan header, 1 x 24-pin Main Power connector, 1 x 8-pin +12V Power connector, RGB header, multiple USB headers, and others
Special Features	ASUS 5X Protection III, Q-Design, ASUS Thermal Solution, RGB header
Software Features	Armoury Crate, AI Suite 3, Fan Xpert, Norton Anti-virus (Free Trial), EZ Flash 3, CrashFree BIOS 3
BIOS	128 Mb Flash ROM, UEFI AMI BIOS
Form Factor	microATX (22.6 cm x 21.1 cm)
Warranty	3 Years
Operating System Compatibility	Windows® 10 64-bit

Additional Information

Cooling Capability: The motherboard features a variety of hybrid fan headers to maintain optimal temperatures under load.
User-Friendly BIOS: The UEFI BIOS offers a straightforward interface for quick setup and advanced tuning options, accommodating both new and experienced users.
Performance Optimization: The motherboard supports Intel® Turbo Boost Technology for enhanced CPU performance.

This motherboard is suitable for users looking to build a reliable system with the latest Intel processors and is designed to maximize productivity with its array of features. If you need further details or have specific questions, feel free to ask!
