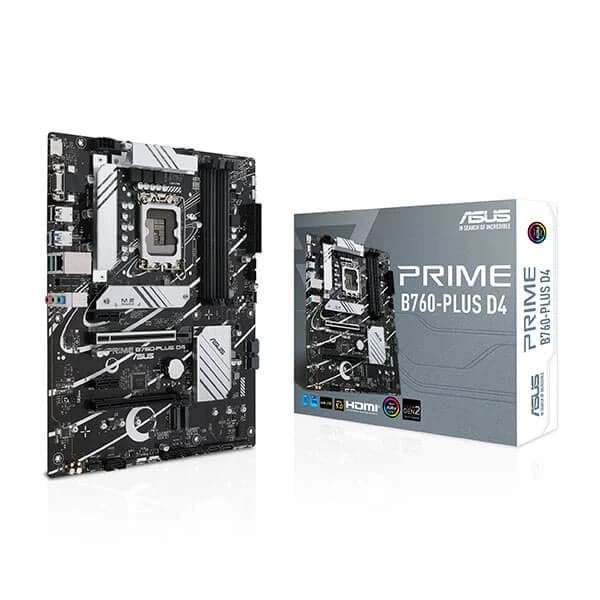

ASUS Prime B760-Plus D4 Intel Motherboard

ASUS Prime B760-Plus D4 Motherboard Features

1. Intel LGA 1700 Socket

• Supports 13th Gen and 12th Gen Intel® Core™ processors, as well as Pentium Gold and Celeron® processors, providing flexibility for a range of Intel CPUs.
• Compatible with Intel Turbo Boost Technology 2.0 and Turbo Boost Max Technology 3.0 for enhanced performance.

2. Ultrafast Connectivity

• PCIe 5.0: Future-proof your system with PCIe 5.0 x16 slot support for the latest-generation graphics cards, delivering double the bandwidth of PCIe 4.0.
• PCIe 4.0 M.2 Slots: Supports up to three PCIe 4.0 M.2 drives for fast storage, including one PCIe 4.0 x4 M.2 slot for ultrafast SSDs.
• 2.5Gb Ethernet: Provides Realtek 2.5Gb Ethernet for high-speed wired networking, ideal for gaming and heavy data transfers.
• USB 3.2 Gen 2×2 Type-C®: The rear I/O includes USB 3.2 Gen 2×2 Type-C® for ultra-fast data transfer (up to 20Gbps).
• Thunderbolt™ Header: Supports USB4® (Thunderbolt™), allowing for high-speed data transfer and versatile device connectivity.

3. Comprehensive Cooling Solution

• VRM Heatsinks: Effective cooling for voltage regulator modules (VRMs) to ensure stable power delivery to the CPU.
• M.2 Heatsink: Helps to keep M.2 SSDs cool, ensuring optimal performance even under heavy load.
• PCH Heatsink: Provides additional cooling for the Platform Controller Hub (PCH) to prevent overheating.
• Hybrid Fan Headers: Includes multiple fan headers with PWM/DC support, and Fan Xpert 2+ for easy fan management.

4. ASUS OptiMem

• Optimized memory routing through precise trace and via design, helping to preserve signal integrity and improve memory stability. This results in enhanced overclocking potential and reliable performance.

5. Aura Sync RGB Lighting

• Onboard Addressable Gen 2 headers and Aura RGB header allow you to connect and control RGB LED strips.
• Syncs seamlessly with other Aura Sync-compatible hardware, allowing for a customizable lighting experience.

6. Energy Efficiency

• Power Saving Mode: You can toggle Power Saver Plan settings built into Windows to reduce power consumption.
• CPU Power Limit and adjustable fan profiles ensure lower power usage without compromising on system performance.

7. Rock-Solid Performance

• Digi+ VRM: The integrated Digi+ VRM (Voltage Regulator Module) ensures ultra-clean and smooth power delivery to the CPU at all times, supporting stable performance during overclocking and heavy workloads.

8. TUF Gaming Alliance

• This motherboard is part of TUF Gaming Alliance, which guarantees compatibility with other certified TUF components from ASUS and other trusted brands.
• Ensures easy integration of cases, power supplies, coolers, memory kits, and more into your PC build.

ASUS Prime B760-Plus D4 Specifications

CPU Support

• Socket: Intel® LGA1700
• Compatibility: 13th Gen Intel Core, 12th Gen Intel Core, Pentium Gold, and Celeron processors.
• Intel Turbo Boost: Supports Turbo Boost Technology 2.0 and Turbo Boost Max 3.0.

Memory

• DIMM Slots: 4 x DIMM
• Maximum Memory: 128GB
• Supported Memory Types: DDR4 (OC support up to 5066 MHz)
• Dual Channel Memory Architecture
• Intel XMP: Supports Intel® Extreme Memory Profile (XMP).
• OptiMem Technology: Optimized memory routing for improved overclocking and stability.

Graphics

• Display Outputs:
  • 1 x DisplayPort
  • 1 x VGA
  • 1 x HDMI® (Supports 4K @ 60Hz)
• Graphics Support: Integrated graphics from Intel® processors, with specific features depending on the CPU used.

Expansion Slots

• PCIe 5.0 x16 slot (supports x16 mode)
• PCIe 4.0 x16 slot (supports x4 mode)
• 2 x PCIe 3.0 x1 slots for additional expansion cards.

Storage

• M.2 Slots:
  • 3 x M.2 slots (1 x PCIe 4.0 x4, 2 x PCIe 4.0 x2) for fast NVMe SSDs.
  • Support for PCIe 4.0 M.2 SSDs for the best performance.
• SATA Ports:
  • 4 x SATA 6Gb/s ports for traditional hard drives and SATA SSDs.
  • Intel Rapid Storage Technology supports RAID 0/1/5/10.

Ethernet

• Realtek 2.5Gb Ethernet for fast, low-latency network connectivity.

USB

• Rear USB Ports:
  • 1 x USB 3.2 Gen 2×2 (Type-C®)
  • 2 x USB 3.2 Gen 2 (Type-A)
  • 1 x USB 3.2 Gen 1 (Type-A)
  • 2 x USB 2.0 (Type-A)
• Front USB Ports:
  • 1 x USB 3.2 Gen 1 Type-C®
  • 1 x USB 3.2 Gen 1 header (supports 2 additional USB 3.2 Gen 1 ports)
  • 2 x USB 2.0 headers (supports 4 additional USB 2.0 ports).

Audio

• Realtek 7.1 Surround Sound High Definition Audio CODEC
  • Supports up to 24-Bit/192 kHz playback.
  • Features: Audio Shielding, Premium Audio Capacitors, and Dedicated Audio PCB Layers.
  • Supports Jack-detection, Multi-streaming, and Front Panel Jack Retasking.
• Supports 7.1 Surround Sound output when connected to compatible audio systems.

Back Panel I/O Ports

• 1 x USB 3.2 Gen 2×2 (Type-C®)
• 2 x USB 3.2 Gen 2 (Type-A)
• 1 x USB 3.2 Gen 1 (Type-A)
• 2 x USB 2.0 (Type-A)
• 1 x DisplayPort
• 1 x VGA
• 1 x HDMI®
• 1 x Realtek 2.5Gb Ethernet
• 3 x Audio Jacks

Internal I/O Connectors

• Fan Headers: 1 x CPU Fan header, 3 x Chassis Fan headers, 1 x AIO Pump header.
• Power Connectors:
  • 1 x 24-pin ATX
  • 1 x 8-pin +12V connector.
• Storage Connectors:
  • 3 x M.2 slots
  • 4 x SATA 6Gb/s ports.
• USB Headers:
  • 1 x USB 3.2 Gen 1 Type-C®
  • 1 x USB 3.2 Gen 1 header
  • 2 x USB 2.0 headers.
• Miscellaneous:
  • 3 x Addressable Gen 2 headers
  • 1 x Aura RGB header
  • 1 x Clear CMOS header
  • 1 x COM Port header
  • 1 x Front Panel Audio header (AAFP).

Special Features

• ASUS 5X PROTECTION III: Includes Digi+ VRM, LANGuard, Overvoltage Protection, SafeSlot Core+, and Stainless-Steel Back I/O.
• ASUS EZ DIY: Features Q-DIMM, Q-Slot, Q-LED, Q-DIMM for easy installation.
• M.2 Heatsink and VRM Heatsink Design for better cooling.

Software Features

• Armoury Crate: Includes Aura Creator and Aura Sync for RGB control.
• Fan Xpert 2+, AI Suite 3, **DIGI+
