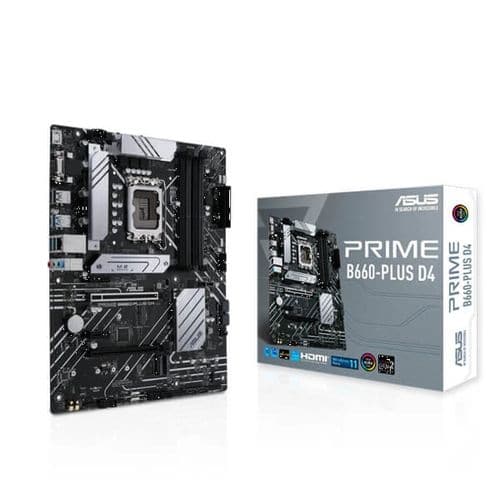

ASUS Prime B660 Plus DDR4 Intel Motherboard

Product Description

The ASUS Prime B660-PLUS D4 motherboard is designed to deliver a premium, flexible, and powerful platform for users building a system around Intel’s 12th generation Core, Pentium Gold, and Celeron processors (LGA 1700 socket). This motherboard is equipped with advanced features aimed at providing enhanced performance, connectivity, and efficient cooling, making it a great choice for both gaming and productivity tasks.

Key Features:

1. Intel 12th Gen Processor Support:
   • LGA 1700 Socket: Supports Intel’s 12th Gen Core, Pentium Gold, and Celeron processors.
   • Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0: Allows users to push their CPU performance to higher levels.
2. Memory Support:
   • 4 x DIMM Slots supporting up to 128GB DDR4 memory.
   • Memory Speeds: Supports DDR4 speeds from 2133 MHz to 5066 MHz (OC).
   • Dual Channel Architecture with support for Intel Extreme Memory Profile (XMP) for easy overclocking.
   • OptiMem: ASUS technology that optimizes memory performance and stability.
3. Expansion Slots:
   • 1 x PCIe 4.0 x16 slot for high-end graphics cards and other performance-focused expansion cards.
   • 1 x PCIe 3.0 x16 slot (supports x4 mode).
   • 2 x PCIe 3.0 x1 slots for additional expansion cards like sound cards, network cards, or storage controllers.
4. Storage Options:
   • 3 x M.2 Slots (Key M):
     • M.2_1 slot supports PCIe 4.0 x4 (from the CPU).
     • M.2_2 slot supports PCIe 4.0 x4 (from the chipset).
     • M.2_3 slot supports PCIe 4.0 x2.
   • 4 x SATA 6Gb/s Ports for traditional HDDs/SSDs.
   • Supports Intel Optane Technology.
5. Networking:
   • 1 x Intel 2.5Gb Ethernet for high-speed, low-latency networking.
   • ASUS LANGuard for protection against surges and electrostatic discharge (ESD), ensuring stable and reliable network connectivity.
6. USB Ports:
   • Rear USB Ports:
     • 1 x USB 3.2 Gen 2×2 Type-C (up to 20Gbps).
     • 2 x USB 3.2 Gen 2 Type-A.
     • 1 x USB 3.2 Gen 1 Type-A.
     • 2 x USB 2.0 Type-A.
   • Front USB Ports:
     • 1 x USB 3.2 Gen 1 connector (supports USB Type-C).
     • 1 x USB 3.2 Gen 1 header (supports 2 additional USB Type-A ports).
     • 2 x USB 2.0 headers (supports 4 additional USB Type-A ports).
7. Graphics Output:
   • 3 Display Outputs:
     • 1 x DisplayPort.
     • 1 x D-Sub.
     • 1 x HDMI.
   • Supports up to 4K resolution with HDMI and DisplayPort.
8. Audio:
   • Realtek 7.1 Surround Sound High Definition Audio CODEC for immersive audio experiences.
   • Supports Jack-detection, Multi-streaming, and Front Panel Jack Retasking.
   • Supports up to 24-Bit/192 kHz playback for high-quality sound output.
9. Cooling and Thermal Management:
   • VRM Heatsink, PCH Heatsink, and M.2 Heatsink to ensure stable performance during heavy loads and gaming sessions.
   • Fan Xpert 4 software or UEFI BIOS for flexible fan control.
   • Hybrid Fan Headers for connecting both PWM and DC fans.
   • M.2 heatsink helps prevent thermal throttling on high-speed SSDs.
10. SafeSlot Reinforcement:
    • SafeSlot: Reinforced PCIe slots to ensure your GPU stays firmly in place, reducing PCIe slot damage from heavy GPUs.
11. Comprehensive Protection:
    • Overvoltage Protection for preventing damage to components.
    • DRAM Overcurrent Protection to safeguard memory modules.
    • Stainless-Steel Back I/O for better durability and protection against corrosion.
    • LANGuard for added network protection.
12. Energy Efficiency:
    • Energy Processing Unit (EPU): Automatically optimizes power consumption for better energy savings.
    • Away Mode: A smart feature that reduces energy usage by shutting down unused I/O controllers when not in use.
13. Diagnostics and Troubleshooting:
    • Q-LED Core Display: Provides light patterns during the Power-On Self-Test (POST) to help users troubleshoot issues easily.
14. Thunderbolt 4 Support:
    • Thunderbolt Header for additional Thunderbolt expansion through a compatible add-in card.

Specifications of ASUS Prime B660-PLUS D4

• Model: ASUS PRIME B660-PLUS D4 ATX Motherboard
• CPU Socket: LGA 1700 (supports 12th Gen Intel Core, Pentium Gold, and Celeron processors)
• Chipset: Intel B660
• Memory:
  • 4 x DIMM Slots (max 128GB)
  • Supports DDR4 5066(OC)/5000(OC)/4800(OC)/4600(OC) and lower speeds down to 2133 MHz.
  • Dual Channel Memory Architecture.
  • Supports Intel Extreme Memory Profile (XMP).
• Expansion Slots:
  • 1 x PCIe 4.0 x16 slot (CPU lane).
  • 1 x PCIe 3.0 x16 slot (chipset lane, x4 mode).
  • 2 x PCIe 3.0 x1 slots.
• Storage:
  • 3 x M.2 Slots (Key M), supports PCIe 4.0 x4 and x2 modes.
  • 4 x SATA 6Gb/s ports.
  • Supports Intel Optane Technology.
• Ethernet:
  • 1 x Intel 2.5Gb Ethernet.
  • ASUS LANGuard for network protection.
• USB Ports:
  • Rear I/O: 1 x USB 3.2 Gen 2×2 Type-C, 2 x USB 3.2 Gen 2 Type-A, 1 x USB 3.2 Gen 1 Type-A, 2 x USB 2.0 Type-A.
  • Front Panel: 1 x USB 3.2 Gen 1 header, 2 x USB 2.0 headers.
• Graphics Outputs:
  • 1 x DisplayPort, 1 x D-Sub, 1 x HDMI.
• Audio:
  • Realtek 7.1 Surround Sound High Definition Audio CODEC.
  • Supports up to 24-Bit/192 kHz playback.
• Cooling & Fans:
  • 1 x 4-pin CPU Fan header, 1 x 4-pin AIO Pump header, 3 x 4-pin Chassis Fan headers.
• Power Connectors:
  • 1 x 24-pin Main Power connector, 1 x 8-pin +12V Power connector.
• Form Factor:
  • ATX: 30.5cm x 24.4cm.
• Warranty: 3 Years

Conclusion:
