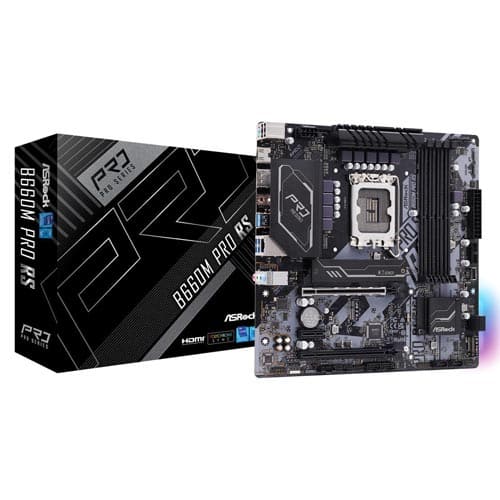

ASROCK B660M Pro RS DDR4 Intel Motherboard

The ASRock B660M Pro RS DDR4 motherboard is a highly capable and feature-packed option for users looking to build a system based on Intel’s 12th Gen Core processors (LGA1700). With its sturdy design, solid performance, and comprehensive features, it offers a great balance between gaming, productivity, and daily computing tasks. Here’s an overview of the features and specifications:

Key Features:

1. Intel 12th Gen Processor Support:
   • LGA1700 Socket: Compatible with 12th Gen Intel® Core™ processors, including Intel® Turbo Boost Max 3.0 Technology and Intel® Hybrid Technology for enhanced performance.
   • 8 Phase Power Design: Provides stable power delivery to the CPU, enhancing overall system performance and overclocking potential.
2. Memory Support:
   • Dual Channel DDR4 memory with 4 x DDR4 DIMM slots.
   • Supports up to 5333+ MHz (OC) speeds with Intel® Extreme Memory Profile (XMP) 2.0 support.
   • Maximum system memory capacity of 128GB.
   • Supports ECC UDIMM memory modules (operating in non-ECC mode).
3. Expansion Slots:
   • 1 x PCIe 4.0 x16 Slot (from CPU) for the latest high-performance GPUs.
   • 1 x PCIe 3.0 x16 Slot (supports x4 mode).
   • 1 x PCIe 3.0 x1 Slot for additional expansion cards.
   • 1 x M.2 Key-E Slot for a Wi-Fi/BT PCIe module.
4. Storage:
   • 1 x Hyper M.2 Slot (PCIe Gen 4×4) (up to 64Gb/s) for the latest NVMe SSDs.
   • 1 x Ultra M.2 Slot (PCIe Gen 3 x4 & SATA3) for additional high-speed storage.
   • 4 x SATA3 6.0 Gb/s ports for traditional hard drives or SATA SSDs.
   • Supports Intel® Optane™ Technology on the M.2 slot.
   • RAID support: RAID 0, 1, 5, 10 for SATA storage devices.
5. Graphics Output:
   • Intel® Xe Graphics Architecture (Gen 12) for integrated graphics.
   • 1 x HDMI Port (Supports 4K resolution at 60Hz).
   • 1 x DisplayPort 1.4 (Supports up to 8K at 60Hz and 5K at 120Hz).
6. Audio:
   • Realtek ALC897 7.1 CH HD Audio Codec for high-quality audio output.
   • Nahimic Audio for an immersive sound experience, offering detailed and vibrant audio across all listening devices (headphones, speakers, etc.).
   • Surge Protection on the audio, LAN, and USB ports.
7. Networking:
   • Intel® Gigabit LAN with Giga PHY Intel® I219V for fast and reliable wired networking.
   • Supports Wake-On-LAN, Lightning/ESD Protection, and Energy Efficient Ethernet 802.3az.
8. USB Ports:
   • 7 USB 3.2 Gen1 ports: 4 rear and 2 front USB ports, plus 1 front USB Type-C.
   • 6 USB 2.0 ports (2 rear, 4 front) for peripheral connections.
   • ESD Protection on USB, LAN, and audio ports.
9. Cooling and Fan Control:
   • CPU Fan and Chassis/Water Pump Fan Connectors for flexible cooling options (with Smart Fan Speed Control).
   • Supports up to 3 x Addressable LED Headers (5V) and 1 x RGB LED Header (12V) for lighting customization.
10. Unique Features:
    • ASRock Super Alloy: Includes Premium Power Choke, Sapphire Black PCB, and High-Density Glass Fabric PCB for improved durability and stability.
    • ASRock Steel Slot: Reinforced PCIe slots to support heavy GPUs and ensure signal stability.
    • Full Coverage M.2 Heatsink for faster storage performance and heat dissipation.
    • ASRock POST Status Checker (PSC) for diagnostics and easy troubleshooting.
    • ASRock Full Spike Protection to protect all USB, Audio, and LAN ports from voltage spikes.
11. BIOS and Software:
    • 128MB AMI UEFI BIOS with multilingual support.
    • ASRock Motherboard Utility for system tuning and monitoring.
    • ASRock Polychrome SYNC for RGB lighting control.
    • ASRock XFast LAN for optimized network performance.
    • ASRock EZ Mode for easy BIOS navigation and setup.

Detailed Specifications:

• CPU Support:
  • Supports 12th Gen Intel® Core™ Processors (LGA1700).
  • Digi Power design with 8 power phases for stable power delivery.
  • Supports Intel® Turbo Boost Max 3.0 and Intel® Hybrid Technology.
• Chipset:
  • Intel® B660 Chipset.
• Memory:
  • 4 x DDR4 DIMM slots supporting up to 128GB DDR4 memory.
  • Supports overclocked speeds up to 5333+ MHz (OC).
  • Intel® Extreme Memory Profile (XMP) 2.0 support.
  • Native DDR4-3200 support.
• Graphics:
  • Intel® Xe Graphics Architecture (Gen 12).
  • Supports HDMI 2.1 and DisplayPort 1.4 for high-definition displays.
  • Maximum resolutions:
    • HDMI: Up to 4K (4096×2160) at 60Hz.
    • DisplayPort: Up to 8K (7680×4320) at 60Hz, or 5K (5120×3200) at 120Hz.
• Audio:
  • Realtek ALC897 7.1 Channel HD Audio codec.
  • Nahimic Audio technology for improved sound quality and immersive experience.
  • Surge Protection for audio, LAN, and USB ports.
• LAN:
  • Intel® I219V Gigabit LAN.
  • Supports Wake-on-LAN and Energy Efficient Ethernet.
  • Lightning/ESD Protection for reliable networking.
• Expansion Slots:
  • 1 x PCIe 4.0 x16 Slot (for the latest GPUs).
  • 1 x PCIe 3.0 x16 Slot (supports x4 mode).
  • 1 x PCIe 3.0 x1 Slot for expansion cards.
  • 1 x M.2 Key-E Slot for Wi-Fi/BT PCIe module.
• Storage:
  • 1 x Hyper M.2 Slot (PCIe Gen4x4) for the latest SSDs.
  • 1 x Ultra M.2 Slot (PCIe Gen 3 x4 & SATA3) for additional storage options.
  • 4 x SATA3 6.0 Gb/s connectors for HDD/SSD drives.
• RAID:
  • Supports RAID 0, 1, 5, 10 for SATA storage devices.
• Connectors and Headers:
  • 1 x 24-pin ATX Power Connector.
  • 1 x 8-pin 12V Power Connector.
  • 1 x Front Panel Audio Connector.
  • USB 3.2 Gen1 Headers, USB 2.0 Headers, RGB Headers for customization.
• Rear I/O Ports:
  • 1 x HDMI 2.1 Port.
  • 1 x DisplayPort 1.4.
  • 4 x USB 3.2 Gen1 Ports.
  • 2 x USB 2.0 Ports.
  • 1 x RJ-45 LAN Port (with LED indicators).
  • HD Audio Jacks (Line-in, Front Speaker, Microphone).
• Operating System:
  • Windows® 10/11 64-bit.
• Form Factor:
  • Micro ATX (9.6″ x 9.6″ / 24.4 cm x 24.4 cm).
• Warranty:
  • 3 Years.

Conclusion:

The ASRock B660M Pro RS DDR4 motherboard is a solid, feature-rich option for building a mid-range gaming or productivity PC with Intel’s 12th Gen Core processors. It offers a sturdy build, excellent cooling solutions, fast storage options, and good connectivity, making it ideal for users who want reliable performance and future-proof features at a competitive price. With support for PCIe Gen 4.0, overclocking, and enhanced audio, it’s a great choice for both gamers and content creators.
