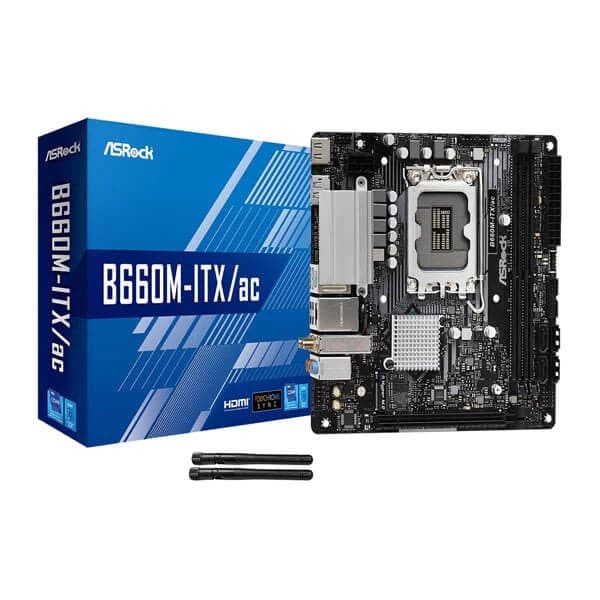

ASROCK B660M ITX/AC Wifi DDR4 Intel Motherboard

Name: ASROCK B660M ITX/AC Wifi DDR4 Intel Motherboard
SKU: 11470
Availability: InStock

0 customer reviews

Sold: 0

₹13,299.00

Buy Now

Add to cart

Category: B660 Motherboard

Product Description

ASRock B660M ITX/AC Wifi DDR4 Intel Motherboard – Features and Detailed Overview

The ASRock B660M ITX/AC Wifi DDR4 Intel Motherboard is a high-performance motherboard designed for both 12th and 13th Gen Intel® Core™ processors (LGA1700). It combines compact Mini-ITX form factor with powerful features such as PCIe 4.0 support, high-speed Wi-Fi, and multiple storage options. Ideal for building small, high-performance PCs with robust connectivity and reliability.

Here’s an in-depth look at its key features, specifications, and capabilities:

Key Features

Feature	Description
Intel® LGA1700 Socket Support	Compatible with Intel® 12th and 13th Gen Core™ processors, including Intel® Turbo Boost Max 3.0 and Intel® Hybrid Technology.
6 Phase Dr.MOS Power Design	High-efficiency power delivery system for stable and overclockable performance, especially for small form-factor builds.
DDR4 5000MHz (OC) Support	Supports DDR4 memory speeds up to 5000+ MHz (overclocked) for faster data processing and better performance in multitasking.
PCIe 4.0 x16 Slot	Provides high bandwidth (16 lanes) for powerful GPUs, ensuring excellent graphics performance.
Graphics Output Options	Dual graphics outputs: HDMI and DisplayPort, capable of up to 8K resolution via DisplayPort 1.4.
Realtek ALC897 7.1 CH HD Audio Codec	High-quality audio output, supporting 7.1 surround sound and surge protection for stable sound output.
Wi-Fi 802.11ac + Bluetooth	Built-in Wi-Fi module supporting 802.11ac (dual-band, 2.4/5 GHz) and Bluetooth for fast wireless connectivity and peripherals.
Multiple Storage Options	1 x Hyper M.2 (PCIe Gen 4×4) and 4 x SATA3 ports for high-speed storage and flexibility with RAID support.
5 USB 3.2 Gen1 Ports	Includes 2 front USB 3.2 Gen1 ports, 2 rear USB 3.2 Gen1, and 1 front USB Type-C port for fast data transfer.
Intel® Gigabit LAN	High-speed wired networking with Intel® I219V and supports Wake-On-LAN, energy-efficient Ethernet, and lightning protection.

Motherboard Specifications

Component	Details
Model	ASRock B660M ITX/AC Wifi DDR4
Socket Type	LGA1700 socket for 13th Gen & 12th Gen Intel® Core™ processors
Chipset	Intel® B660
CPU Power Delivery	6-phase Dr.MOS power design for stable and efficient CPU performance
Memory Support	Dual Channel DDR4, 2 x DDR4 DIMM slots, max 64GB, supports up to DDR4 5000+ MHz (OC), with Intel® XMP 2.0 support
Graphics Output	Dual HDMI 2.1 and DisplayPort 1.4, supports resolutions up to 8K at 60Hz (DisplayPort) or 4K at 60Hz (HDMI).
Audio	Realtek ALC897, 7.1 CH HD Audio Codec, surge protection
LAN	Intel® Gigabit LAN (10/100/1000 Mbps), Intel® I219V PHY, Wake-on-LAN, Lightning/ESD Protection
Wireless	802.11ac Wi-Fi + Bluetooth, dual-band (2.4/5 GHz) with up to 433 Mbps wireless speed, Bluetooth class II
USB Ports	2 x USB 3.2 Gen1 (front), 2 x USB 3.2 Gen1 (rear), 1 x front USB Type-C, 2 x USB 2.0 (front), 2 x USB 2.0 (rear)
M.2 and SATA Storage	1 x Hyper M.2 Socket (PCIe Gen 4×4 & SATA3), 4 x SATA3 6Gb/s ports
RAID Support	Supports RAID 0, RAID 1, RAID 5, and RAID 10 for SATA storage devices
Expansion Slots	1 x PCIe 4.0 x16 slot (supports GPUs), 1 x M.2 Socket (Key E, for Wi-Fi module)
Form Factor	Mini-ITX (17.0 cm x 17.0 cm)
OS Support	Windows® 10 64-bit / 11 64-bit
Warranty	3 years

Storage and Connectivity

Feature	Details
M.2 Slots	1 x Hyper M.2 (supports PCIe Gen 4×4 & SATA3), ideal for fast NVMe SSD storage devices.
SATA Ports	4 x SATA3 6.0 Gb/s connectors for standard hard drives or SATA SSDs.
RAID Support	RAID 0, 1, 5, and 10 for SATA storage devices, enhancing redundancy and performance.
USB Ports	5 x USB 3.2 Gen1 (2 rear, 2 front, 1 front Type-C), 4 x USB 2.0 ports (2 rear, 2 front) for flexible peripheral connectivity.
LAN	Intel® Gigabit LAN (10/100/1000 Mbps), featuring low-latency, high-throughput networking, with additional energy-saving features.
Wi-Fi	802.11ac Wi-Fi with dual-band support (2.4GHz and 5GHz), ensuring fast wireless speeds up to 433Mbps, along with Bluetooth for connecting wireless peripherals.

Graphics and Display Outputs

Graphics Option	Details
Intel® Xe Graphics Architecture	Integrated GPU in Intel® 12th and 13th Gen processors, supporting 4K video output through HDMI or DisplayPort.
HDMI 2.1	Max resolution up to 4096×2160 (4K) at 60Hz, supporting HDCP 2.3.
DisplayPort 1.4	Max resolution up to 7680×4320 (8K) at 60Hz, supporting DSC (Display Stream Compression).

Rear Panel I/O Ports

Port Type	Description
USB Ports	2 x USB 3.2 Gen1, 2 x USB 2.0 (supports ESD protection)
Video Outputs	1 x HDMI, 1 x DisplayPort 1.4
Ethernet	1 x RJ-45 LAN port (Gigabit Ethernet), with ACT/LINK LED and SPEED LED
Audio	HD Audio Jacks: Line in, Front Speaker, Microphone
Other	2 x Antenna Ports for Wi-Fi
PS/2 Ports	1 x PS/2 Mouse/Keyboard Port

Advanced Features

Feature	Details
Super Alloy Components	Premium Power Choke, Sapphire Black PCB, High-Density Glass Fabric PCB for enhanced durability and heat dissipation.
Full Spike Protection	Protection for USB, Audio, and LAN ports against electrical surges, ensuring safety and longevity of components.
ASRock Live Update & APP Shop	Utility for easy firmware updates and driver management.
Polychrome SYNC	RGB lighting control for customizable aesthetics with compatible devices.
Fan Control	Includes automatic fan speed adjustments based on CPU temperature for quieter operation and better cooling.

Software and Utilities

Software	Details
A-Tuning	ASRock’s motherboard utility for system tuning and overclocking.
XFast LAN	Improves network traffic management and latency reduction for online gaming and streaming.
EZ Mode and Instant Flash	Simple BIOS interface and easy BIOS recovery from within the UEFI environment.
Polychrome SYNC	Synchronizes RGB lighting across compatible devices to create personalized lighting effects.
