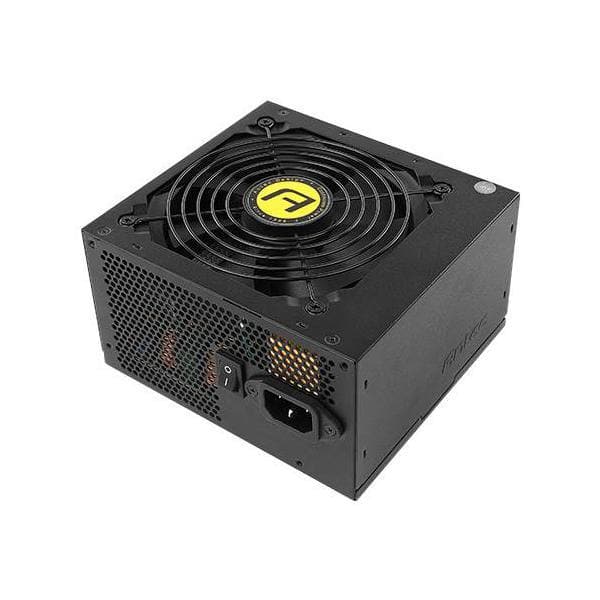

ANTEC NE550M 550W 80+ Bronze V2 Fully Modular ATX 2.0 Power Supply

Product Description

Features of ANTEC NE550M V2

Get economical power today with the NeoECO Modular, Antec’s high-efficiency power supply solution. Featuring 80 PLUS® BRONZE certification, a quiet 120 mm fan, Japanese capacitors and Universal Input with Active Power Factor Correction, ANTEC NeoECO Modular gives you a cooler, quieter system, all powered by Continuous Power.
550W Continuous Power – Guaranteed 550W of Continuous Power from Antec. Japanese Heavy-duty Caps – High-performance Japanese capacitors ensure tightest DC stability and regulation
80 PLUS BRONZE certified – Up to 88% efficient, to reduce your electricity bill; Circuit Shield – Full suite of industrial grade protections
AQ3 – Antec Quality 3 year warranty and lifetime global 24/7 support; Multi PCI-E – 2 PCI-E connectors for multiple GPU support
120 mm DBB Silence – Whisper-quiet high-quality double ball bearing fan with long lifetime
Thermal Manager – An advanced low voltage fan control for optimal heat & noise management
80 PLUS BronzeCertified
Up to 88% efficient, to reduce your electricity bill.
Japanese Heavy-duty Caps
Japanese High-performance capacitors ensure tightest DC stability and regulation.
Advanced Hybrid Cable Management
Improves airflow and reduces clutter.
120mm silent Fan
Whisper-quiet high-quality silent fan with long lifetime.
Stealth flat cable
For easier & better cable management.

Specifications of ANTEC NE550M V2


Model
NE550M V2
Type
ATX 12V 2.4
Modular
Semi-Modular
Dimension
140(L) x 150(W) x 86(H)
Input Voltage
100-240 VAC
Input Current
8A-4A
Input Frequency Range
47Hz-63Hz
PFC
Active PFC
Power Good Signal
100-500ms
Efficiency
Up to 88%
Protection
OCP / OVP / UVP / SCP / OPP / NLO
Output Capacity
550W
Operation Temperature
0-40°C
Regulatory
cTUVus / TUV / CB / RCM / CE / CCC / BSMI / FCC
Fan
120 mm Silence Fan
Certifications
80 Plus Bronze
Connector
1 x MB 24(20+4) Pin1 x 8(4+4) Pin EPS 12V2 x 8(6+2) Pin PCI-E5 x SATA3 x Molex
Net Weight
2.20 Kgs
Gross Weight
2.33 Kgs
Warranty
5 Years
Note
***Features, Price and Specifications are subject to change without notice.
