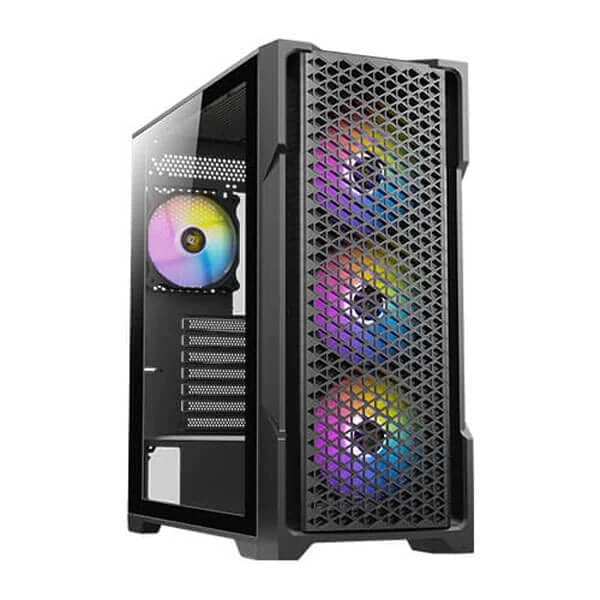

ANTEC AX90 ARGB ATX Mid Tower Cabinet (Black)

Product Description

Features of ANTEC AX90 ARGB

Unique Design & Powerful Heat Dissipation
The ANTEC AX90 features a unique mesh front panel design and excellent cooling performance. The full-view tempered glass side panel design allows you to show off your gaming configurations without any obstacles. 11 x 120mm fans can be installed simultaneously.
Diamond-Shaped Mesh Front Panel
The diamond-shaped mesh front panel is ready to provide massive airflow for your system and the dust filtering function.
MAXIMUM COOLING POTENTIAL
The spacious interior can accommodate both front and upper radiators up to 360mm.
Powerful Cooling
Supporting 1 x 240mm radiator or 2 x 120mm fans side-mounted.
High-Airflow Mesh Front Panel
Enlarged mesh front panel provides massive airflow.
Pre-Installed 4 x 120mm Fans
Pull in massive air for cooling.
In Sync with Motherboard for ARGB Lighting
The built-in control hub can sync with the motherboard or switch the ARGB lighting modes with the ARGB control button for your personalized setup.

Specifications of ANTEC AX90 ARGB


Model
AX90
Color
Black
Fan
Dimensions
473 x 210 x 486mm(DWH)
Form Factor
Mid Tower
Materials
Steel+Plastic
Mainboard Support
ATX, Micro-ATX, ITX
Front Access & Controls
Power,Reset, LED Control Button, 2 x USB 2.0, 1 x USB 3.0 , MIC / HD-AUDIO
Side Panel
4MM Tempered glass
Drive Bays
Expansion Slots
7
3.5″ /2.5″
2 / 1
2.5″
2
Fan
Front
3 x 120mm / 3 x 140mm
Top
3 x 120mm / 2 x 140mm
Power supply
2 x 120mm
Side
2 x 120mm
Rear
1 x 120mm
Included Fan(s)
3 x 120mm ARGB fans in front + 1x 120mm ARGB fan in rear
Radiator Support
Front
120 / 140 / 240 / 280 / 360mm
Top
120 / 140 / 240 / 280 / 360mm
Side
120 / 240mm
Rear
120mm
Clearance
Max GPU Length
≤ 385mm
Max CPU Cooler Height
≤ 160mm
Max PSU Length
(Include cable) ≤ 220mm(with HDD)(Include cable) ≤ 410mm(without HDD)
Miscellaneous
Dust Filter
Front / Top / Bottom / Right Hand Side
Warranty
1 Years
Note
*** Features, Price, Specifications are subject to change without notice.
